Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K

Description

This comprehensive Mitsubishi Electric bundle is designed for optimal climate control in both residential and commercial settings. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting up to 11 indoor units, allowing for customized heating and cooling across multiple zones. Paired with the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, this bundle offers efficient performance with advanced features like built-in Wi-Fi and superior air filtration. The PAC-LMA50BC branch box ensures seamless refrigerant flow management, making this bundle the perfect solution for achieving comfort in any space.

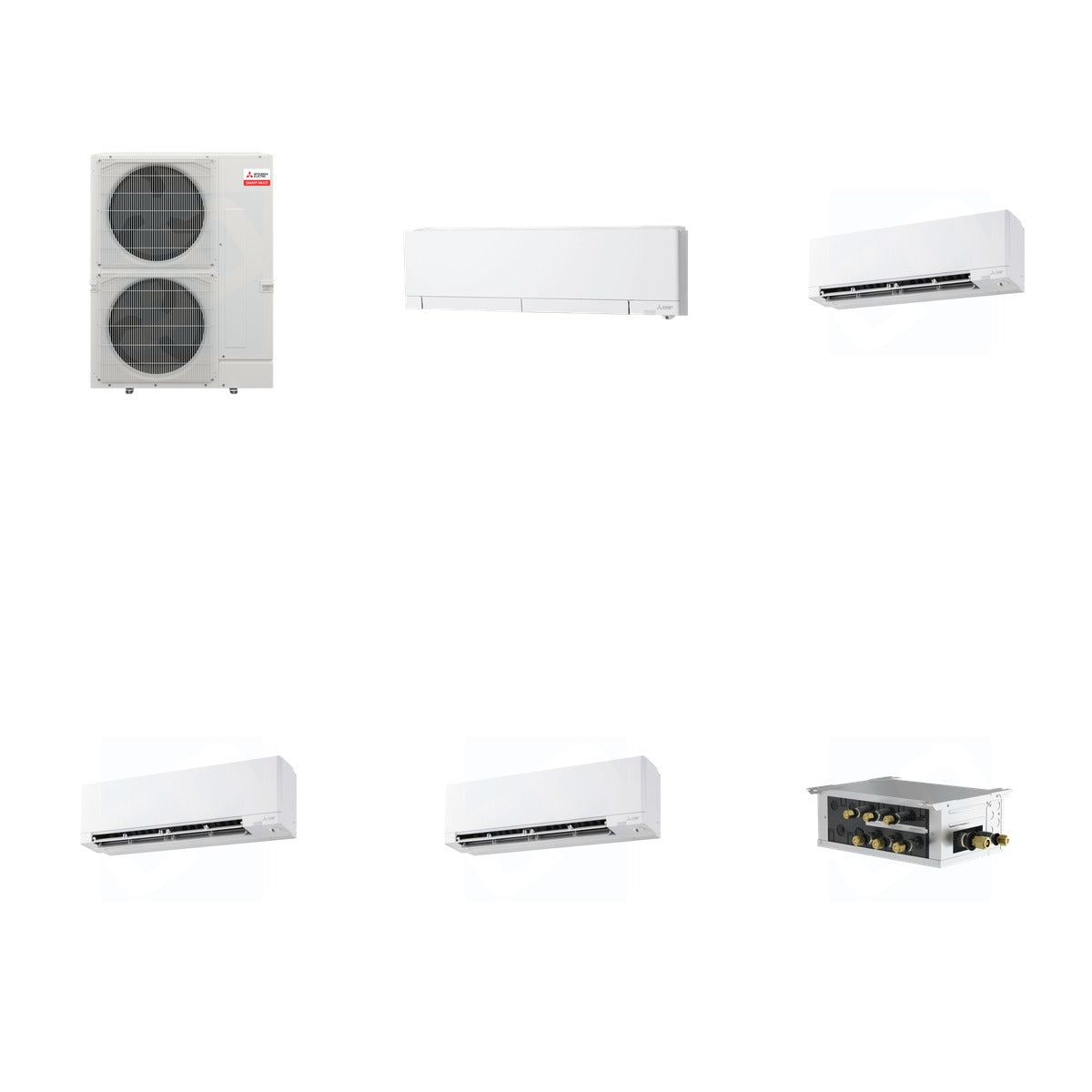

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 306.2 lb (Mitsubishi 161 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-FX06NL), 9,000 BTU (MSZ-FX09NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 9,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX09NL)
• SEER2: 23 (MXZ-SM36NL), Up to 35 (MSZ-FX06NL & MSZ-FX09NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-FX06NL & MSZ-FX09NL): 39.27 W x 12 H x 9.75 D
• Branch Box Ports: 5 (PAC-LMA50BC)

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, effectively managing temperature across various rooms. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-FX06NL and MSZ-FX09NL air handlers are designed for both single-zone and multi-zone applications. The PAC-LMA50BC branch box facilitates the connection of multiple indoor units, ensuring efficient refrigerant flow and optimal performance.
