Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+15K

Description

This comprehensive HVAC bundle is designed for optimal climate control in both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized heating and cooling across multiple zones, making it ideal for homes with varying temperature needs. Paired with three high-efficiency wall-mounted air handlers (MSZ-FX06NL and MSZ-FX15NL), this bundle ensures that each room can achieve the desired comfort level. The inclusion of the PAC-LMA50BC 5-Port Branch Box enhances the system's efficiency by effectively managing refrigerant flow to the connected indoor units, ensuring reliable performance and energy savings.

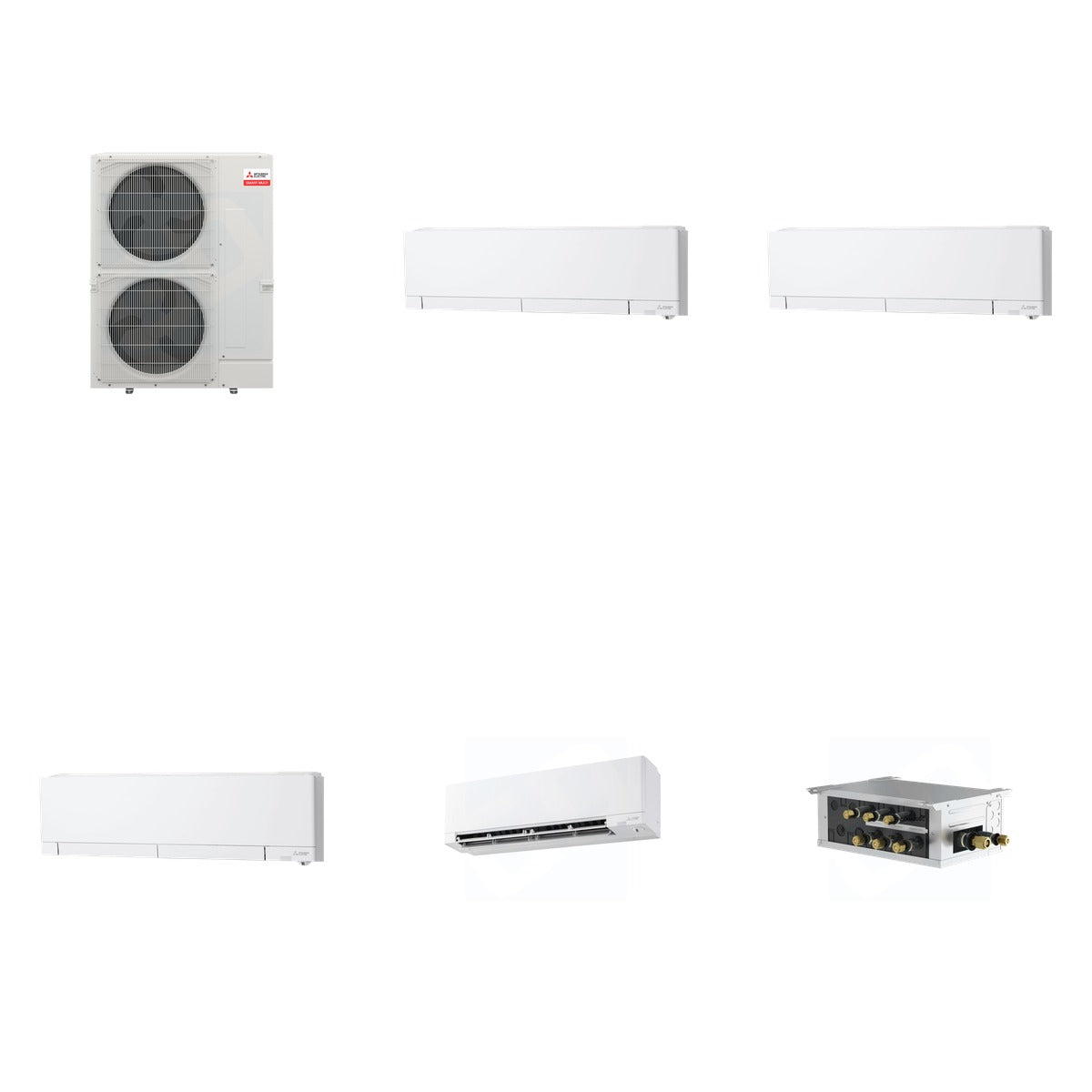

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 291.4 lb (Mitsubishi 161 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-FX06NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 9,000 BTU (MSZ-FX06NL), 18,000 BTU (MSZ-FX15NL)
• Refrigerant Type: R-454B
• SEER2 Rating: 23 (MXZ-SM36NL), Up to 35 (MSZ-FX06NL), Up to 20 (MSZ-FX15NL)
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM36NL - 41-11/32" W x 13" D x 52-11/16" H; MSZ-FX06NL - 39.27" W x 9.75" D x 12" H; MSZ-FX15NL - 39-9/32" W x 9-3/4" D x 12" H
• Weight: MXZ-SM36NL - 130 lbs; MSZ-FX06NL - 36.4 lbs; MSZ-FX15NL - 36.4 lbs; PAC-LMA50BC - 16 lbs

Use & Compatibility

This bundle is perfect for multi-zone heating and cooling applications, providing efficient climate control for homes or commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-FX06NL and MSZ-FX15NL air handlers are designed for seamless integration within these systems. The PAC-LMA50BC branch box facilitates the connection of up to five indoor units, enhancing system flexibility and efficiency.
