Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+12K

Description

The Mitsubishi Electric Multi-Zone HVAC Bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. This comprehensive package includes a powerful outdoor heat pump condenser and multiple indoor units, allowing for customized climate control across various zones. The MXZ-SM36NL condenser works seamlessly with the SLZ-AF09NL and SLZ-AF12NL indoor units, ensuring optimal airflow and temperature management. With advanced features like individual vane control and built-in condensate lift mechanisms, this bundle is perfect for those seeking flexibility and efficiency in their heating and cooling systems.

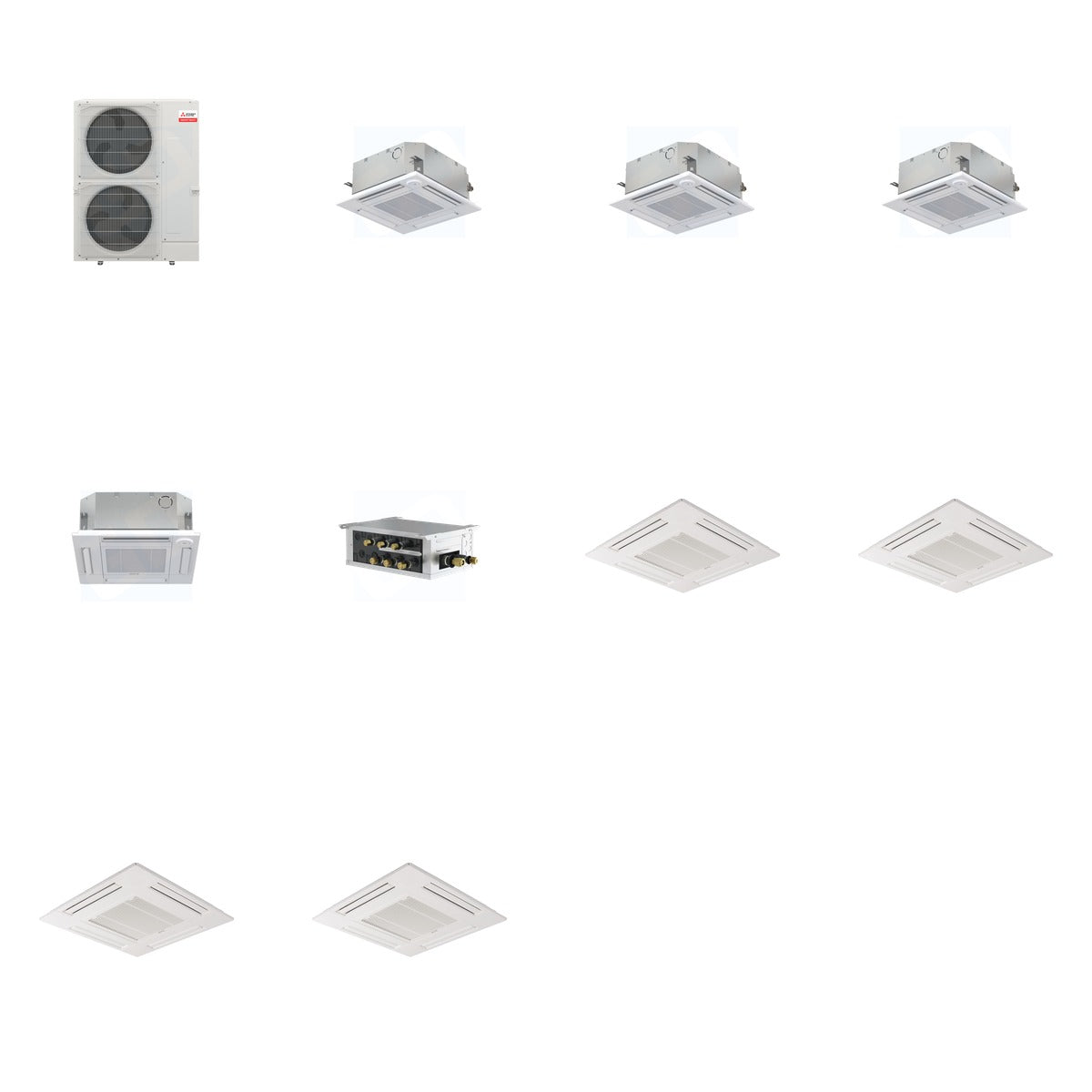

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 328 lb (Mitsubishi 161 lb + Mitsubishi 99 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 28 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Refrigerant Type: R-454B
• SEER2: 23 (MXZ-SM36NL)
• Voltage: 208/230 Volts
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)
• Indoor Unit Airflow: 230-300 CFM (SLZ-AF09NL)
• Indoor Unit Dimensions: 22-7/16 x 22-7/16 x 8-4/16 inches (SLZ-AF12NL)
• Branch Box Ports: 5 (PAC-LMA50BC)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing tailored comfort for different areas within a home or commercial space. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SLZ-AF09NL and SLZ-AF12NL units can be installed in various ceiling configurations. The included branch box facilitates efficient refrigerant management, making it suitable for larger installations with multiple indoor units.
