Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K+12K+12K

Description

This comprehensive HVAC bundle is expertly designed to provide efficient heating and cooling solutions for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse of the system, capable of supporting multiple indoor units for customized climate control across various zones. Paired with the SLZ-AF09NL and SLZ-AF12NL ceiling-mounted air handlers, this bundle ensures optimal air distribution and comfort. The included PAC-LMA50BC branch box facilitates seamless refrigerant flow management, while the SLP-18FAU grilles enhance the aesthetic and functionality of the indoor units. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

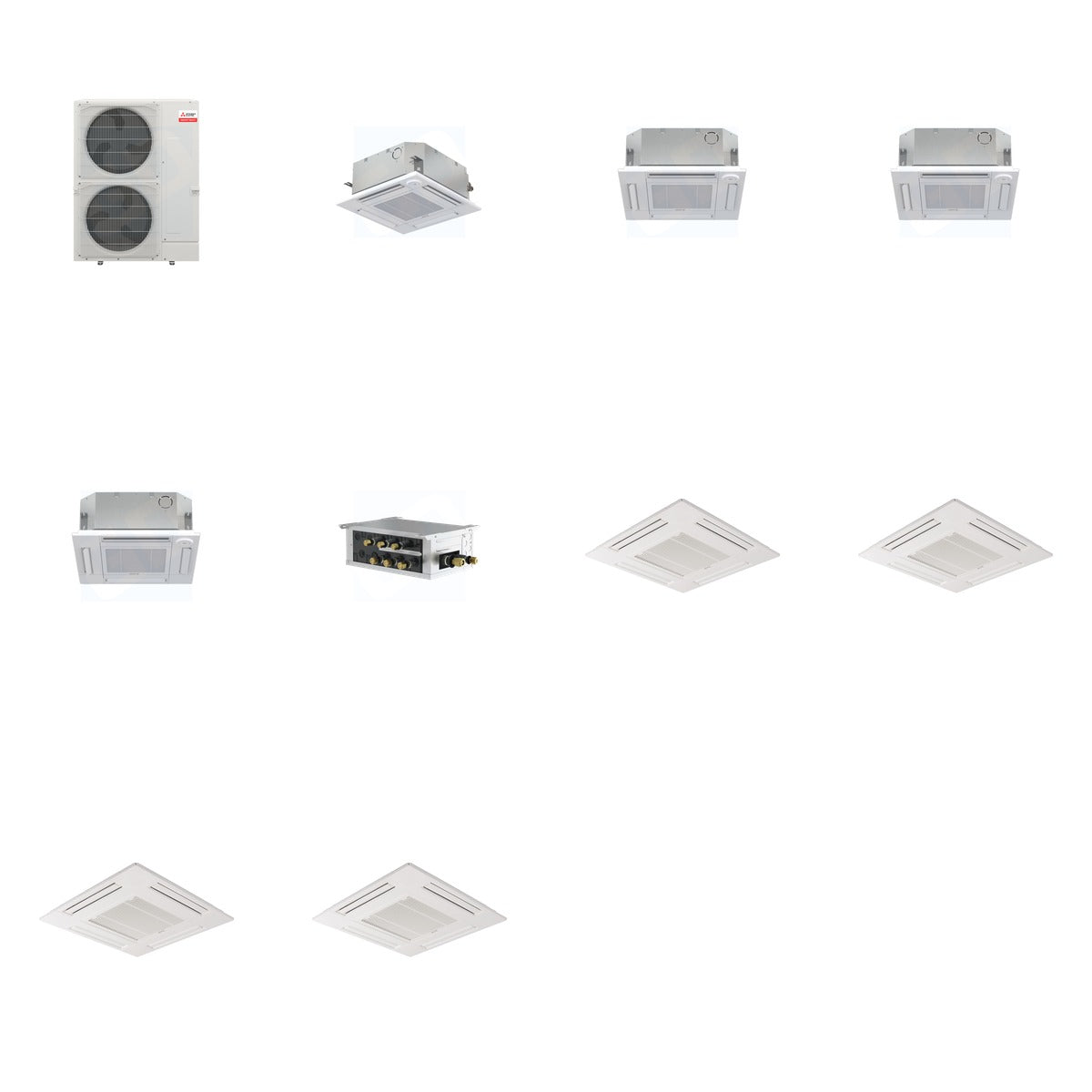

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x4)

Key Details

• Weight of Bundle: 328 lb (Mitsubishi 161 lb + Mitsubishi 33 lb + Mitsubishi 99 lb + Mitsubishi 7 lb + Mitsubishi 28 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Refrigerant Type: R-454B
• SEER2: 23 (MXZ-SM36NL)
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Airflow: 300 CFM (SLZ-AF09NL)
• Sound Level: 25 dB (SLZ-AF09NL)
• Branch Box Ports: 5 (PAC-LMA50BC)

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, ideal for both residential and commercial settings. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SLZ-AF09NL and SLZ-AF12NL air handlers are designed for ceiling installation, fitting seamlessly into standard ceiling grids. The PAC-LMA50BC branch box allows for efficient refrigerant management, supporting up to five indoor units, making this bundle a versatile choice for customized climate control.
