Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+12K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. The included MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL ceiling cassette units provide versatile heating and cooling options for various room sizes, while the PAC-LMA50BC branch box ensures optimal refrigerant flow. Completing the bundle, the MLP-448WU and MLP-449WU grilles enhance air distribution, making this package ideal for both residential and commercial applications.

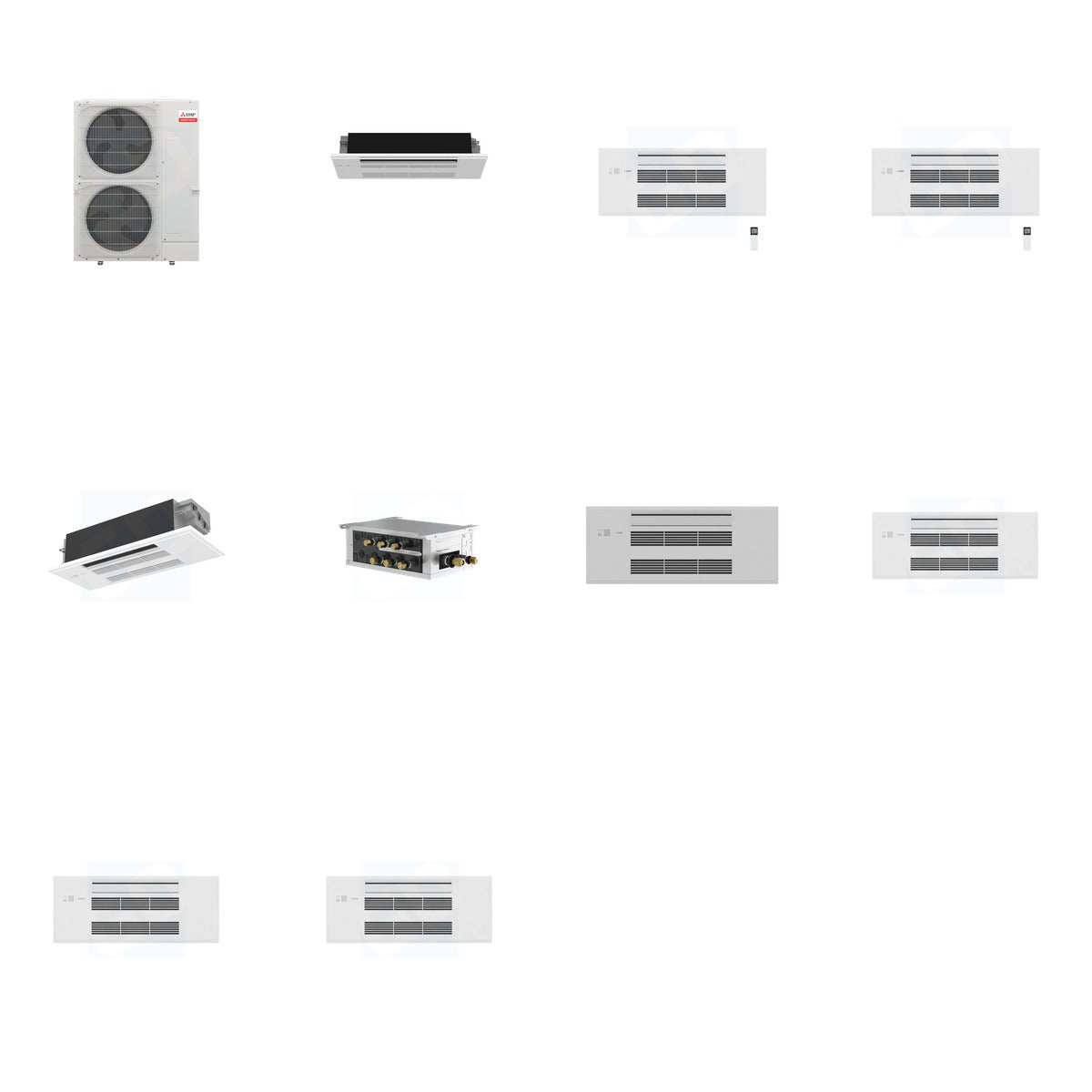

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 279.7 lb (Mitsubishi 161 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 7 lb + Mitsubishi 30 lb)
• MXZ-SM36NL: 36,000 BTU, SEER2: 23, Heating Capacity: 41,000 BTU
• MLZ-KX06NL: 6,000 BTU, Heating Capacity: 7,200 BTU, Room Capacity: 200 sq ft
• MLZ-KX09NL: 9,000 BTU, Heating Capacity: 12,000 BTU, Room Capacity: 350 sq ft
• MLZ-KX12NL: 12,000 BTU, Heating Capacity: 15,400 BTU
• PAC-LMA50BC: 5 Ports, Voltage: 208/230V
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 in, Weight: 7.9 lbs
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 in, Weight: 7.9 lbs

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the ceiling cassettes fit seamlessly into standard ceiling joists. The included branch box facilitates efficient refrigerant management, ensuring optimal performance across all connected units.
