Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 4-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone of the setup, providing powerful heating and cooling capabilities for up to 11 zones. Paired with three MLZ-KX06NL and one MLZ-KX09NL ceiling cassette indoor units, this bundle ensures optimal climate control across various spaces. The inclusion of the PAC-LMA50BC branch box facilitates seamless refrigerant management, while the MLP-448WU and MLP-449WU grilles enhance airflow and system performance. Together, these components create a versatile and efficient HVAC solution for both residential and commercial applications.

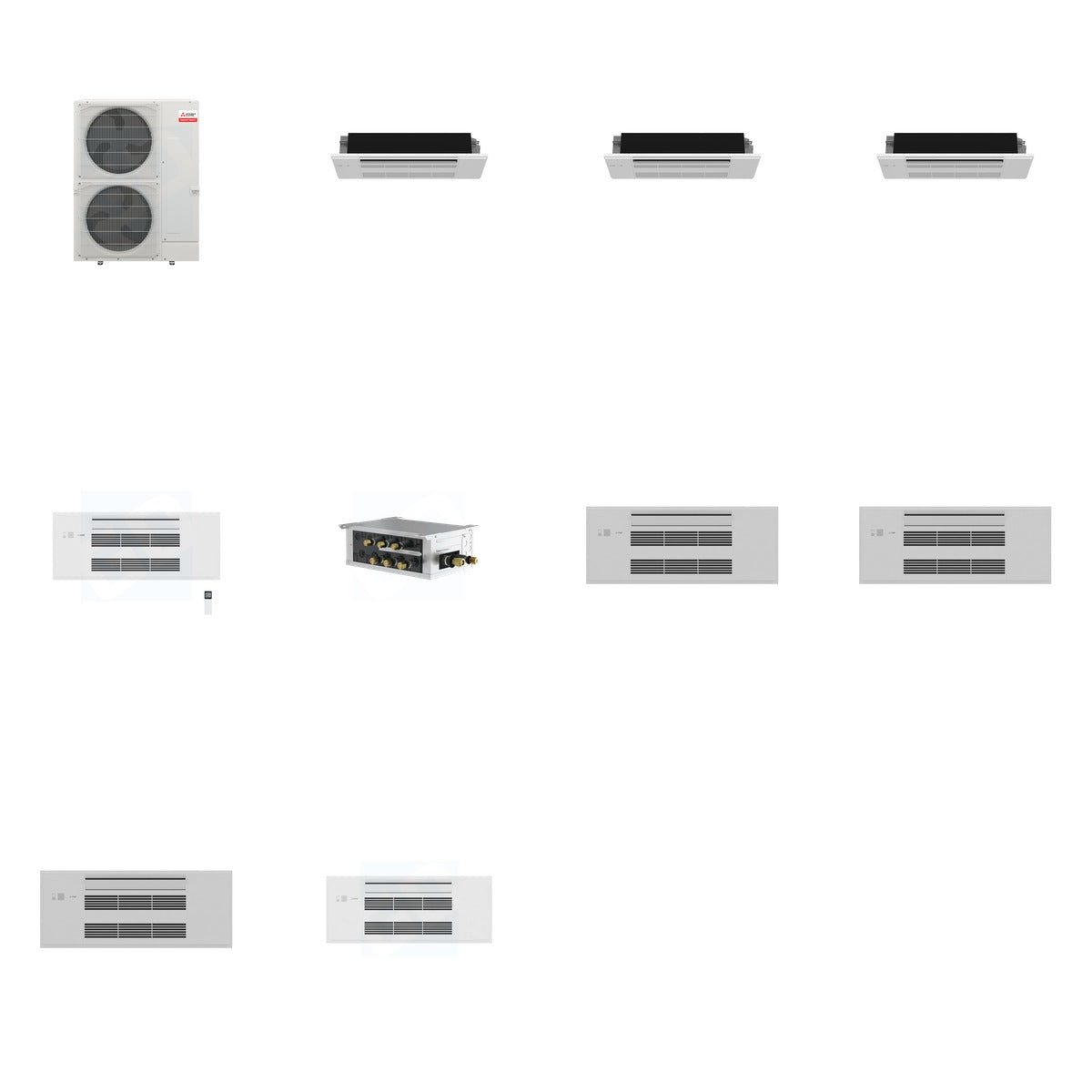

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KX Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x1)

Key Details

• Weight of Bundle: 304.3 lb (Mitsubishi 161 lb + Mitsubishi 102 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 21 lb + Mitsubishi 10 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, SEER2: 23, Heating Capacity: 41,000 BTU at 47°F
• MLZ-KX06NL: 6,000 BTU, R454B refrigerant, Room Capacity: up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU, R454B refrigerant, Room Capacity: up to 350 sq ft
• PAC-LMA50BC: 5 ports, Voltage: 208/230 Volts, Compatible with MXZ model
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs
• MLP-449WU: Designed for MLZ Series, Simple installation

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, ideal for both residential and commercial applications. The MXZ-SM36NL condenser works seamlessly with the MLZ-KX indoor units, providing customized heating and cooling across multiple zones. The included branch box and grilles ensure efficient refrigerant flow and optimal air distribution, making this setup perfect for varied indoor environments.
