Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+24K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized climate control across multiple zones, making it ideal for larger spaces. Paired with two wall-mounted air handlers, the MSZ-GX09NL and MSZ-GX24NL, this bundle ensures optimal comfort with advanced features such as built-in Wi-Fi and Econo Cool mode. The included PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and indoor units, ensuring balanced refrigerant flow and temperature maintenance. Together, these components create a powerful and versatile HVAC system that meets diverse heating and cooling needs.

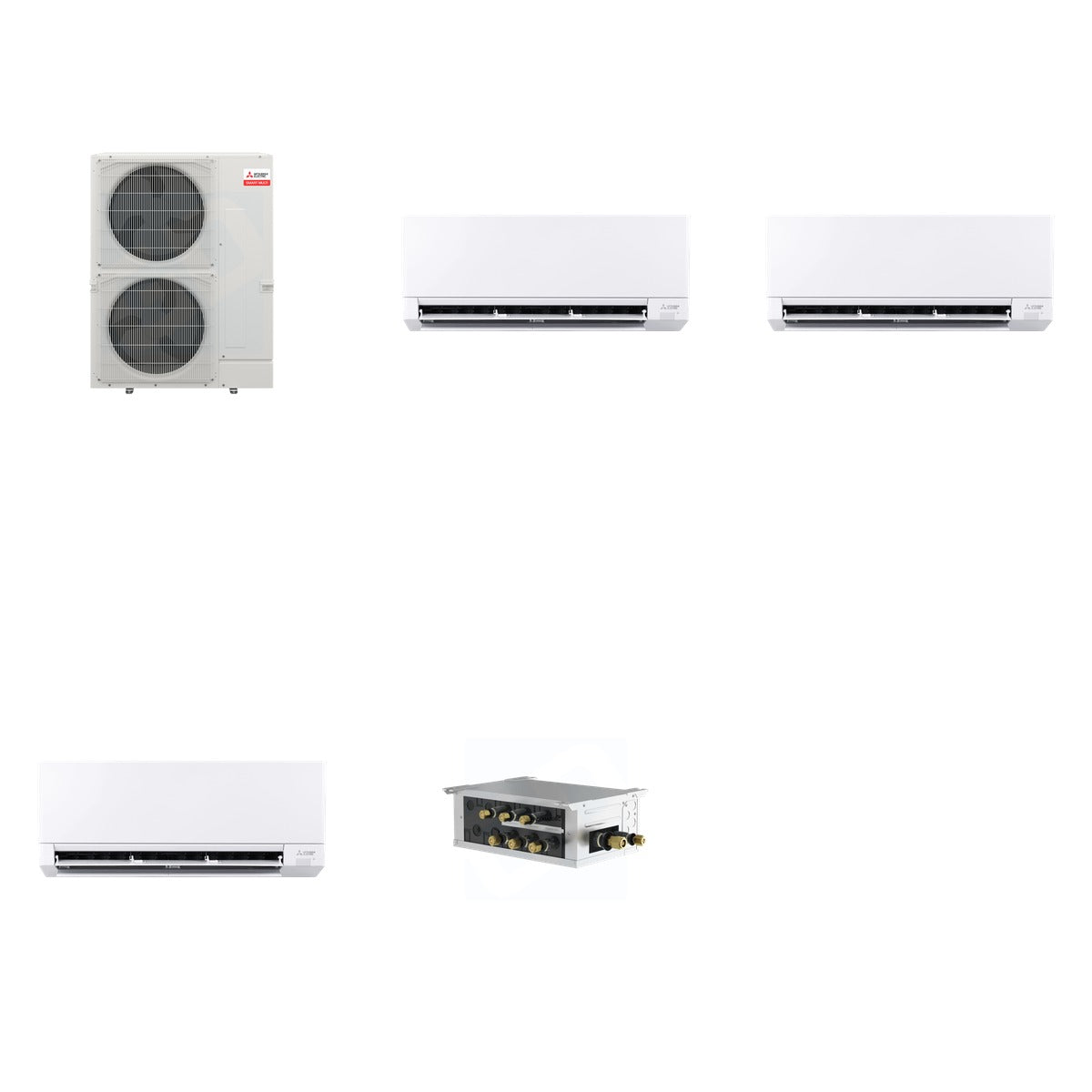

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX24NL - Mitsubishi Electric MSZ-GX24NL R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 238 lb (Mitsubishi 161 lb + Mitsubishi 44 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Cooling BTU: 9,000 (MSZ-GX09NL), 24,000 (MSZ-GX24NL)
• SEER2: Up to 28.4 (MSZ-GX09NL, MSZ-GX24NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Number of Zones: Up to 4 (with branch box) or 11 (without branch box)
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (PAC-LMA30BC): 17.75 W x 11.06 D x 6.75 H

Use & Compatibility

This bundle is intended for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX09NL and MSZ-GX24NL air handlers can be utilized in single-zone or multi-zone configurations. The included PAC-LMA30BC branch box enhances system performance by allowing connections to multiple indoor units.
