Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+18K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, delivering up to 36,000 BTUs to multiple indoor units. Paired with two MSZ-GX09NL and one MSZ-GX18NL wall-mounted air handlers, this setup ensures optimal comfort across different zones, with advanced filtration and smart technology for enhanced air quality and convenience. The PAC-LMA30BC branch box facilitates seamless connections, ensuring balanced refrigerant distribution and temperature control throughout your space.

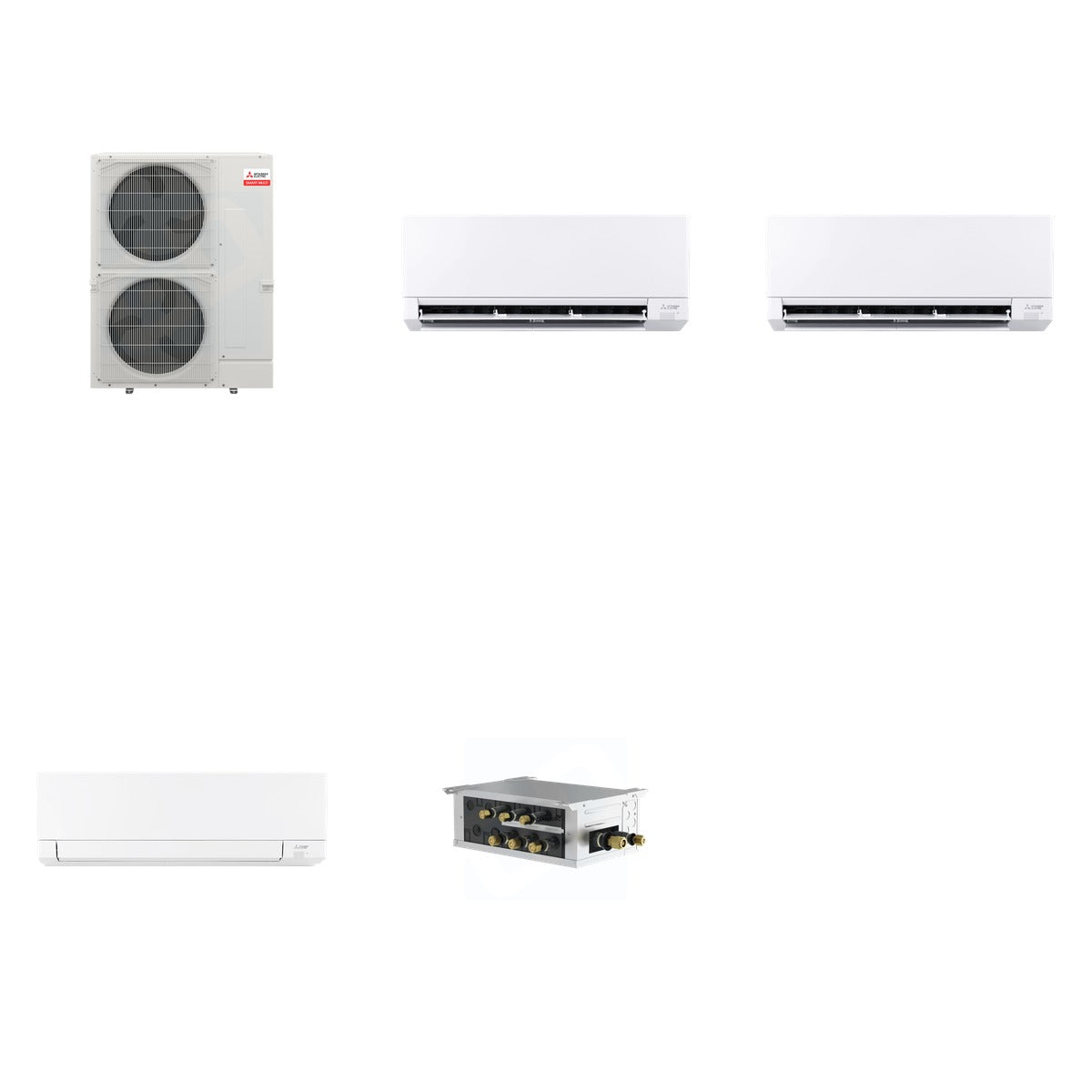

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 238 lb (Mitsubishi 161 lb + Mitsubishi 44 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Cooling BTU: 9,000 (MSZ-GX09NL), 18,000 (MSZ-GX18NL)
• Refrigerant Type: R454B
• SEER2 Rating: Up to 28.4 (MSZ-GX09NL)
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H inches
• Dimensions (PAC-LMA30BC): 17-3/4 W x 11-1/16 D x 6-3/4 H inches

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX air handlers are suitable for both single-zone and multi-zone systems. The PAC-LMA30BC branch box ensures optimal refrigerant flow and temperature control, making it an ideal choice for diverse environments.
