Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+12K+18K

Description

This comprehensive HVAC bundle is designed for those seeking efficient climate control across multiple zones. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this package allows for customized heating and cooling solutions tailored to your specific needs. The included MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX18NL wall-mounted air handlers provide versatile options for indoor units, ensuring quiet operation and advanced features like built-in Wi-Fi and Econo Cool mode. To enhance system performance, the PAC-LMA30BC branch box optimizes refrigerant distribution, making this bundle perfect for both residential and commercial applications.

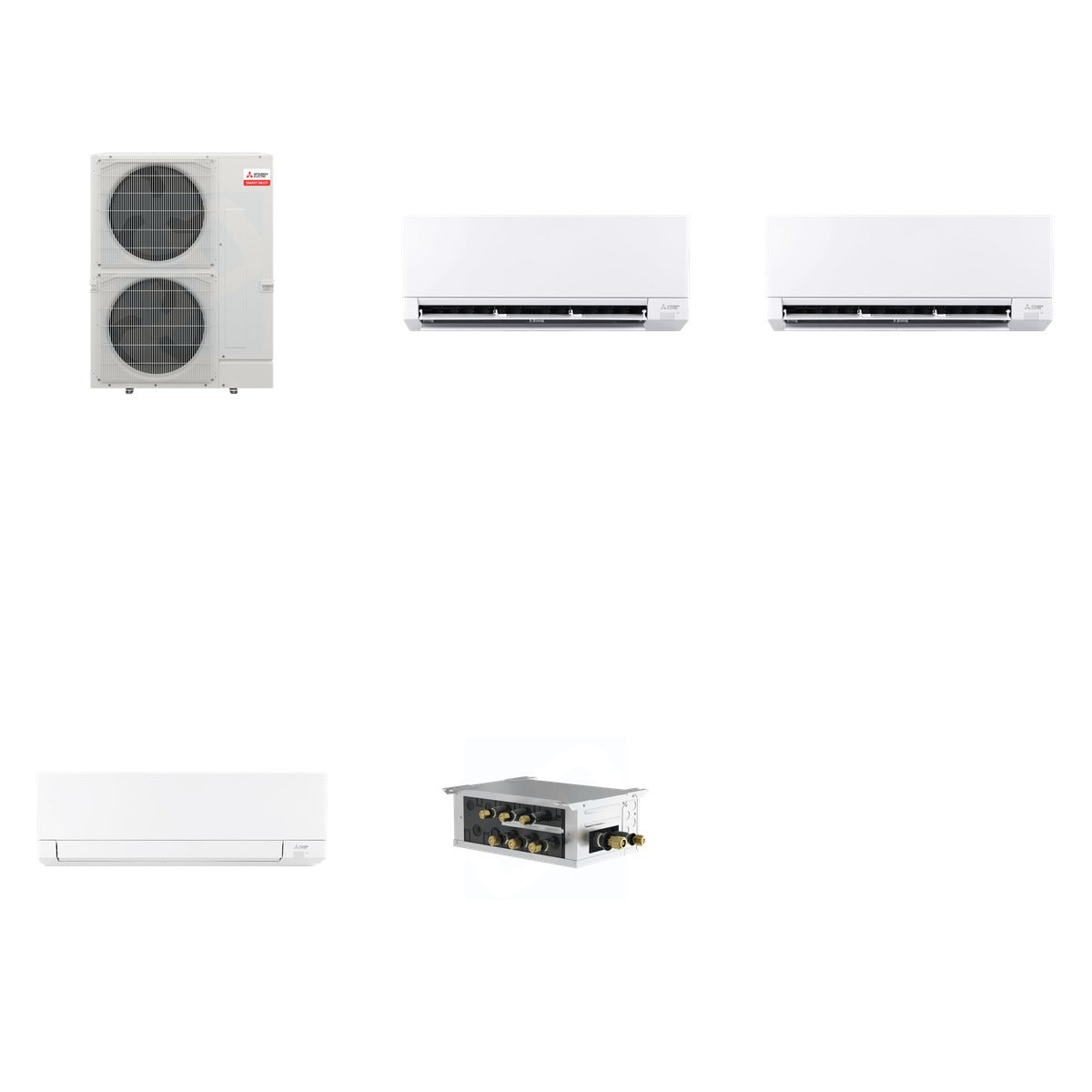

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 238 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: Up to 41,000 BTU (MXZ-SM36NL)
• SEER2: Up to 28.4 (MSZ-GX09NL & MSZ-GX12NL)
• AFUE: Not applicable
• Voltage: 208/230 Volts
• Refrigerant Type: R454B
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX09NL): 11.77 H x 31.39 W x 9.65 D
• Dimensions (MSZ-GX12NL): 12.81 H x 31.39 W x 9.65 D
• Dimensions (MSZ-GX18NL): 12.81 H x 43.31 W x 10.12 D

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency for both residential and commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the included wall-mounted air handlers can be used in single or multi-zone configurations. The PAC-LMA30BC branch box enhances the system's capacity by connecting multiple indoor units, ensuring optimal refrigerant flow and temperature maintenance.
