Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient and customizable climate control system for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of connecting to multiple indoor units for zoned heating and cooling. Paired with two wall-mounted air handlers, the MSZ-GX09NL and MSZ-GX12NL, this bundle ensures optimal comfort with advanced features like built-in Wi-Fi and energy-efficient operation. Additionally, the PAC-LMA30BC Branch Box facilitates seamless refrigerant distribution, making it an ideal solution for enhancing indoor climate management.

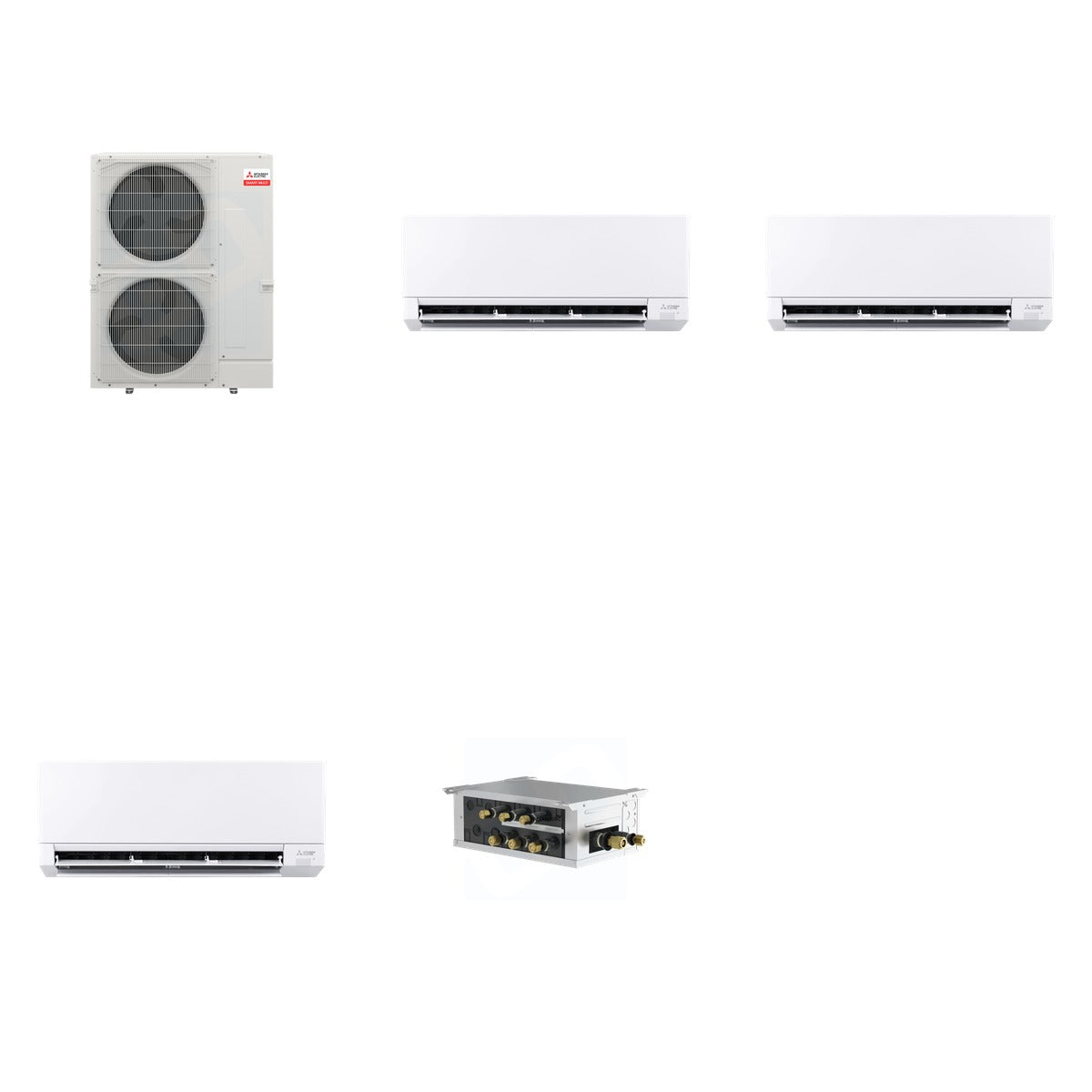

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 9,000 BTU (MSZ-GX09NL), 12,000 BTU (MSZ-GX12NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 10,900 BTU (MSZ-GX09NL), 14,400 BTU (MSZ-GX12NL)
• SEER2: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX09NL, MSZ-GX12NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX09NL): 31.39 W x 11.77 H x 9.65 D
• Dimensions (MSZ-GX12NL): 31.39 W x 11.77 H x 9.65 D
• Branch Box Dimensions: 17.75 W x 11.06 D x 6.75 H

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, providing flexibility and efficiency in climate control. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX09NL and MSZ-GX12NL air handlers can be utilized in both single-zone and multi-zone setups. The PAC-LMA30BC branch box enhances the system's capacity by connecting multiple indoor units, ensuring optimal refrigerant flow and temperature maintenance.
