Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K

Description

This comprehensive HVAC bundle features essential components for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone, providing robust outdoor performance with a capacity of 36,000 BTU. Paired with two wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX09NL, this setup allows for customized climate control in various spaces, ensuring comfort across different zones. The PAC-LMA30BC 3-Port Branch Box facilitates seamless connections between the outdoor unit and indoor air handlers, optimizing refrigerant distribution and enhancing system efficiency. Together, these components create a versatile and powerful HVAC solution for both residential and commercial applications.

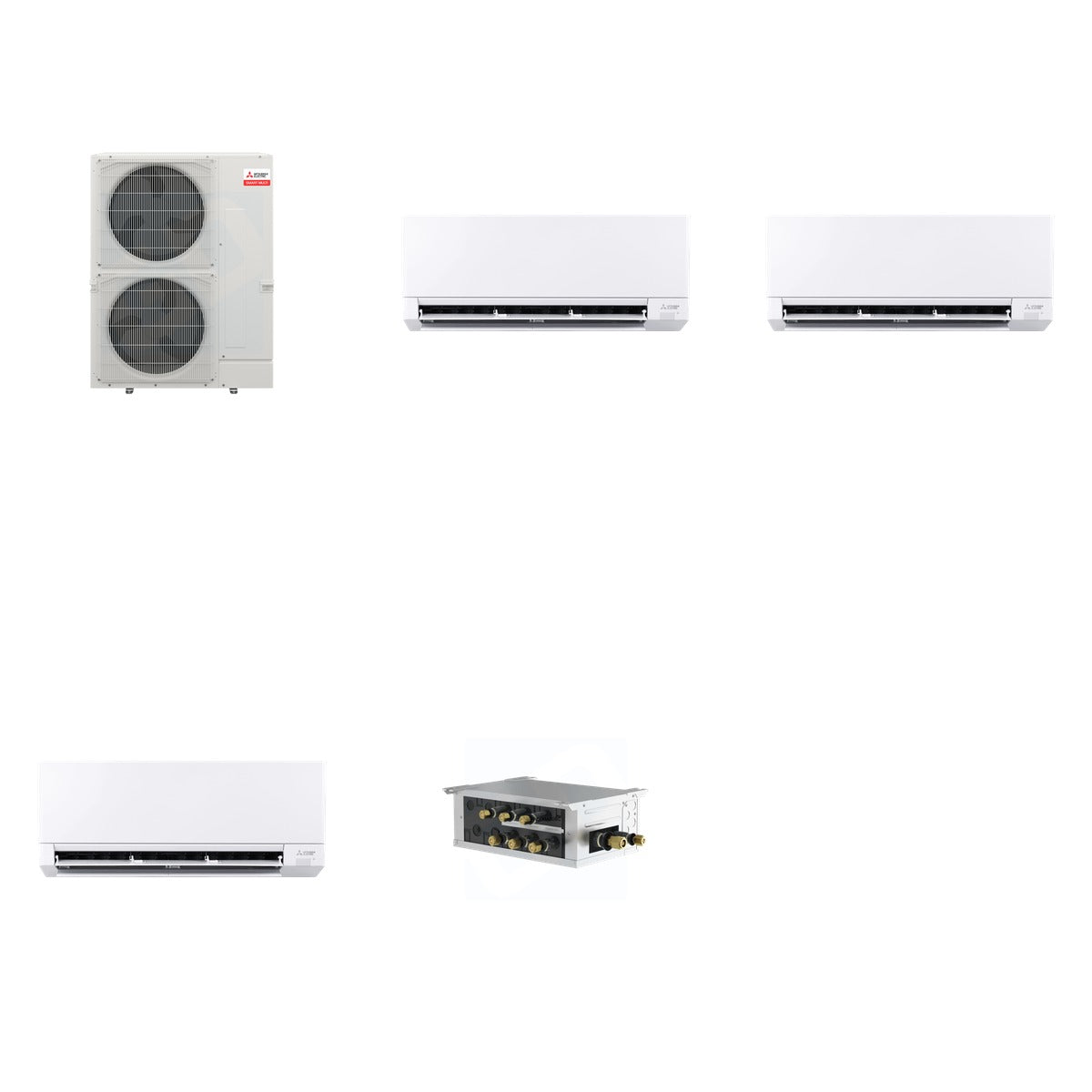

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Capacity: 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL)
• Refrigerant Type: R454B
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL)
• HSPF2 Rating: Up to 11
• Voltage: 208/230V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (PAC-LMA30BC): 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is designed for efficient heating and cooling in residential and commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, allowing for flexible installation options. The wall-mounted air handlers are suitable for single or multi-zone configurations, making them ideal for diverse applications.
