Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed for optimal heating and cooling efficiency across multiple zones. It includes a powerful MXZ-SM36NL multi-zone heat pump condenser, which can connect to up to 11 indoor units, allowing for customized climate control in various spaces. Complementing this are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL) that provide efficient heating and cooling for different room sizes, ensuring comfort in every corner of your home or business. The bundle also features a PAC-LMA30BC branch box, facilitating seamless refrigerant distribution among the indoor units. Together, these components create a versatile and efficient HVAC system suitable for both residential and commercial applications.

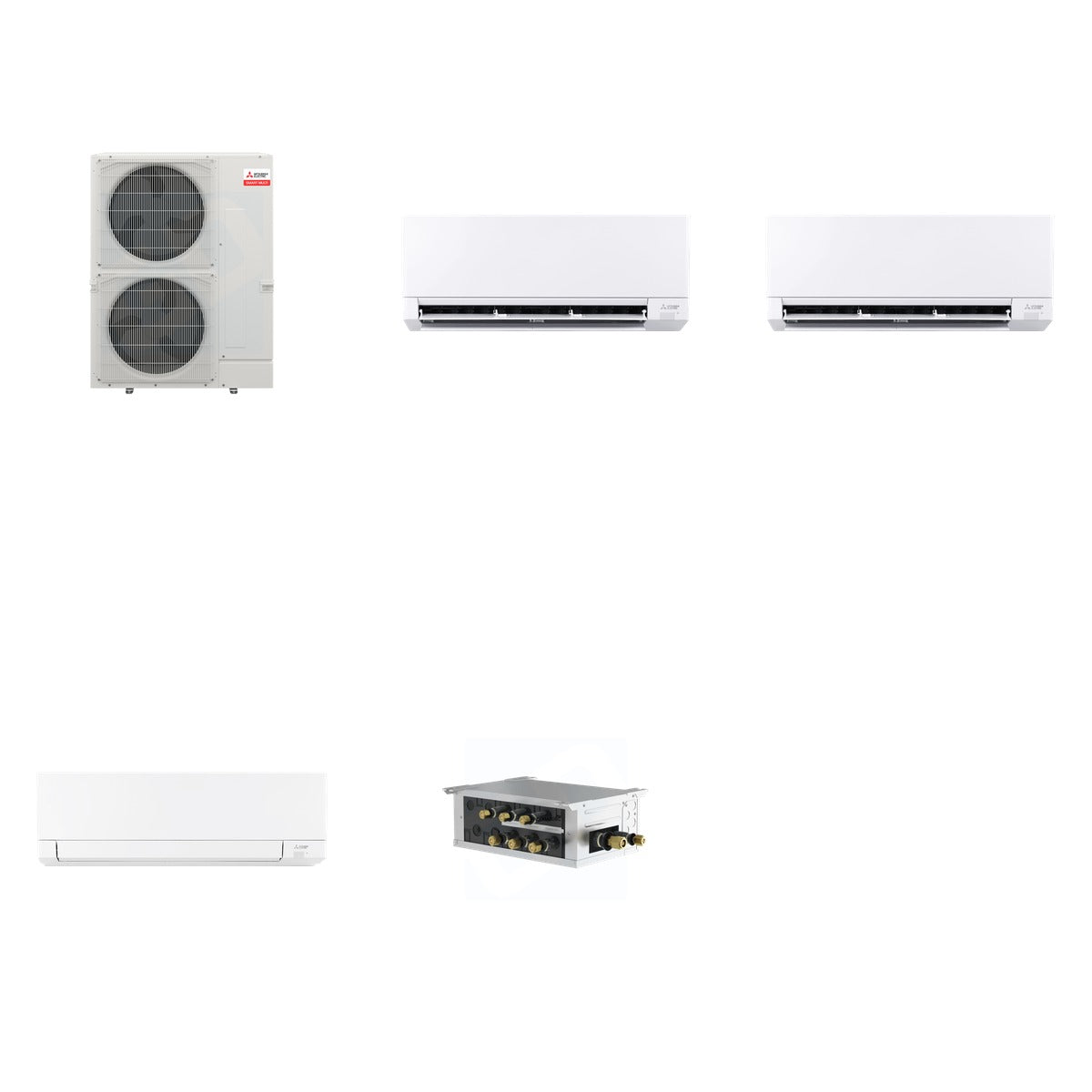

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL), 15,000 BTU (MSZ-GX15NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 7,200 BTU (MSZ-GX06NL), 10,900 BTU (MSZ-GX09NL), 18,000 BTU (MSZ-GX15NL)
• Refrigerant Type: R454B
• SEER2 Ratings: Up to 28.4 (MSZ-GX06NL and MSZ-GX09NL), 23 (MXZ-SM36NL)
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX06NL): 31-19/48 W x 9-31/48 D x 11-37/48 H
• Dimensions (MSZ-GX09NL): 31-19/48 W x 9-31/48 D x 11-37/48 H
• Dimensions (MSZ-GX15NL): 31.40 W x 9.65 D x 11.77 H
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is ideal for residential and commercial HVAC applications, providing efficient heating and cooling solutions for various room sizes. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the wall-mounted air handlers are designed for single or multi-zone configurations, ensuring optimal comfort and control in any setting.
