Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+12K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed for optimal heating and cooling in multi-zone environments. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting up to 11 indoor units, ensuring customized comfort across various spaces. Complementing this are the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX12NL wall-mounted air handlers, each offering efficient heating and cooling for individual zones, equipped with advanced features such as built-in Wi-Fi and Econo Cool mode. The PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and multiple indoor units, ensuring balanced refrigerant flow for enhanced performance.

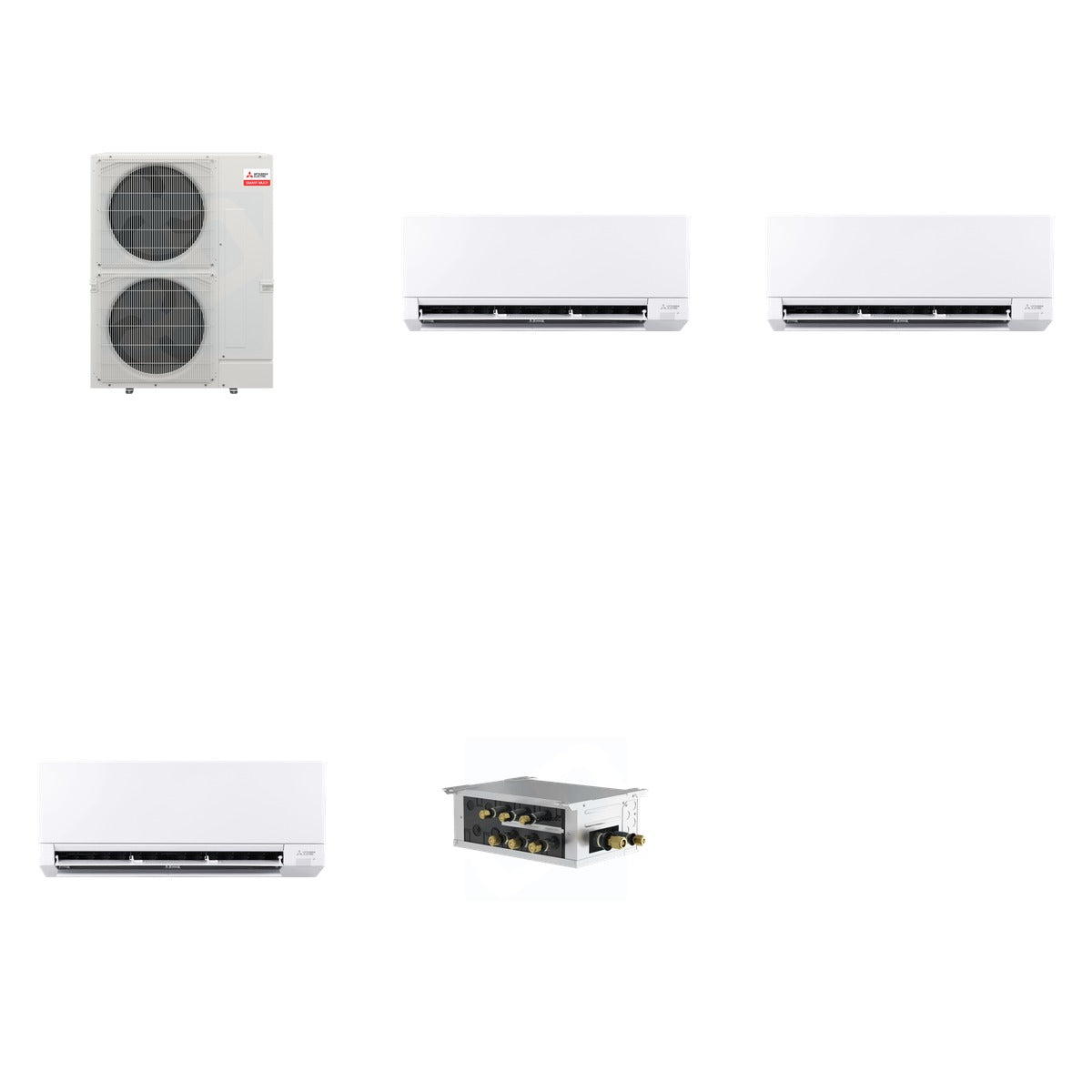

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL), 12,000 BTU (MSZ-GX12NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 7,200 BTU (MSZ-GX06NL), 10,900 BTU (MSZ-GX09NL), 14,400 BTU (MSZ-GX12NL)
• SEER2: Up to 28.4 (MSZ-GX series), 23 (MXZ-SM36NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM36NL - 41-11/32 W x 13 D x 52-11/16 H; MSZ-GX06NL - 31.39 W x 9.65 D x 11.77 H; MSZ-GX09NL - 31.39 W x 9.65 D x 11.77 H; MSZ-GX12NL - 31.39 W x 9.65 D x 11.77 H; PAC-LMA30BC - 17.75 W x 11.06 D x 6.75 H
• Weight: MXZ-SM36NL - 150 lbs; MSZ-GX06NL - 27 lbs; MSZ-GX09NL - 27 lbs; MSZ-GX12NL - 23 lbs; PAC-LMA30BC - 15 lbs

Use & Compatibility

This bundle is ideal for residential and commercial applications requiring efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX series air handlers can be used in single or multi-zone setups. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among connected indoor units.
