Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting up to 11 indoor units, making it perfect for larger spaces or homes with multiple zones. Paired with two Mitsubishi Electric wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX09NL, which provide targeted comfort for individual rooms, this bundle ensures optimal climate control throughout your property. Additionally, the PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and indoor air handlers, ensuring balanced refrigerant flow and temperature maintenance. Together, these components create a cohesive and efficient HVAC solution tailored to your specific needs.

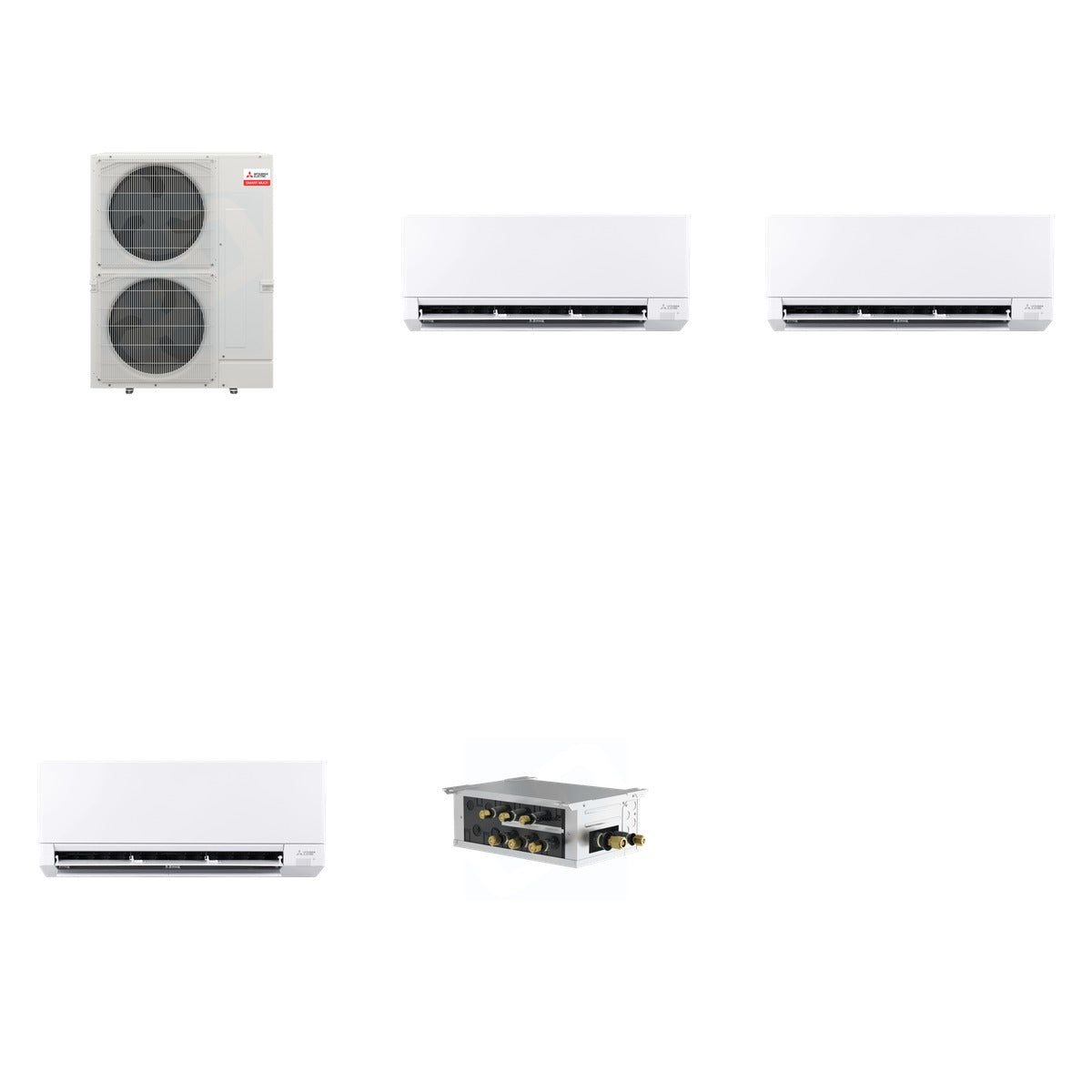

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 7,200 BTU (MSZ-GX06NL), 10,900 BTU (MSZ-GX09NL)
• SEER2: 23 (MXZ-SM36NL), up to 28.4 (MSZ-GX06NL, MSZ-GX09NL)
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H inches
• Dimensions (MSZ-GX06NL): 31-19/48 W x 9-31/48 D x 11-37/48 H inches
• Dimensions (MSZ-GX09NL): 31-19/48 W x 9-31/48 D x 11-37/48 H inches
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H inches

Use & Compatibility

This bundle is designed for residential and commercial applications, providing efficient heating and cooling solutions for multiple zones. The MXZ-SM36NL condenser is compatible with M-Series and CITY MULTI indoor units, while the MSZ-GX06NL and MSZ-GX09NL air handlers can be used in single or multi-zone configurations. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among connected indoor units, enhancing system performance.
