Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+15K

Description

This comprehensive HVAC bundle includes essential components designed to work seamlessly together for efficient heating and cooling in residential or commercial spaces. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting up to 11 indoor units for customized climate control. Paired with two wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX15NL, this bundle offers versatile solutions for various room sizes, ensuring optimal comfort. The PAC-LMA30BC branch box enhances system efficiency by facilitating balanced refrigerant distribution among the connected indoor units, making this bundle a perfect choice for those seeking reliable and effective climate management.

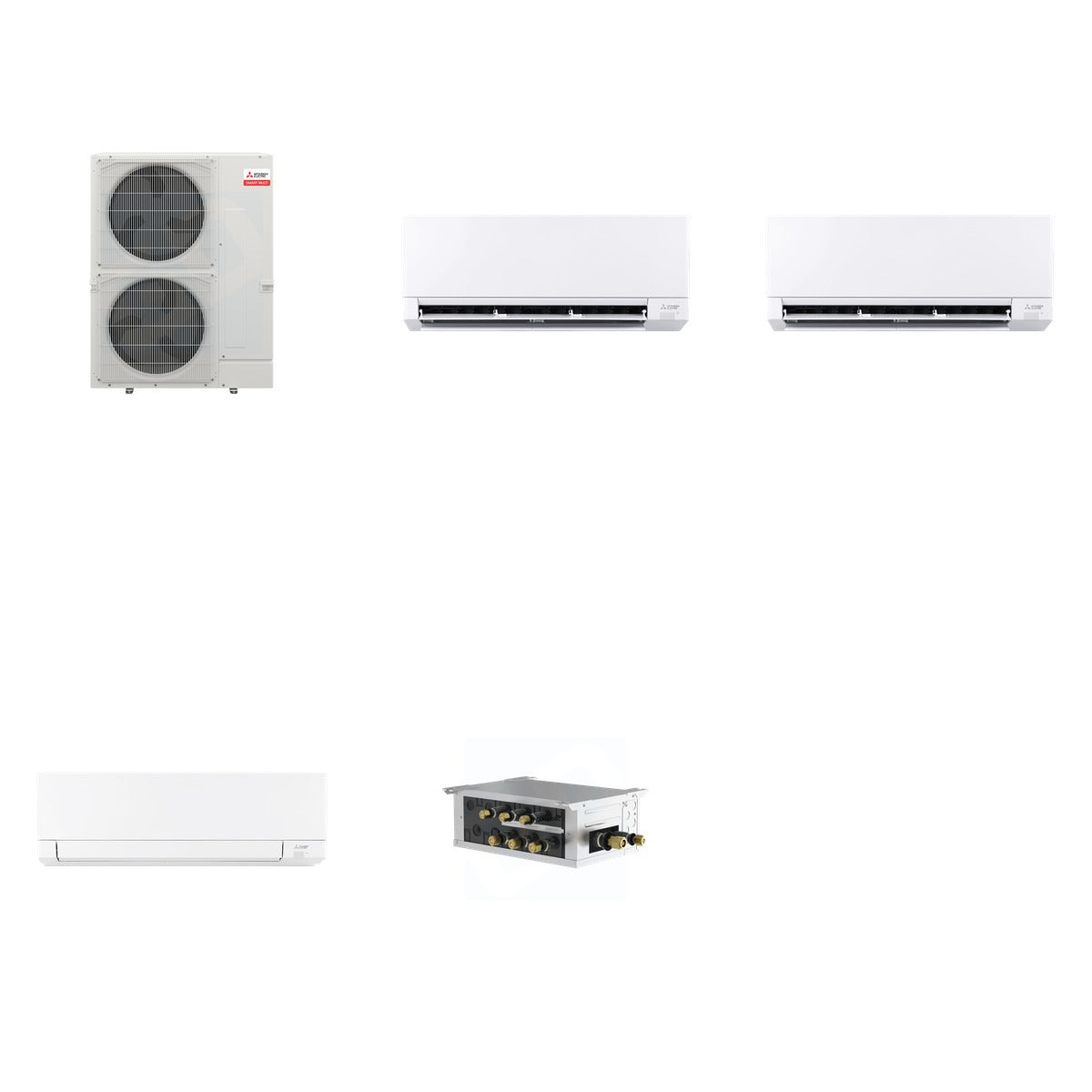

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 7,200 BTU (MSZ-GX06NL), 18,000 BTU (MSZ-GX15NL)
• Refrigerant Type: R454B
• SEER2 Ratings: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX06NL), Up to 11 (MSZ-GX15NL)
• Voltage: 208/230V
• Dimensions: MXZ-SM36NL - 41-11/32 W x 13 D x 52-11/16 H; MSZ-GX06NL - 31 19/48 W x 9 31/48 D x 11 37/48 H; MSZ-GX15NL - 31.40 W x 9.65 D x 11.77 H
• Weight: MXZ-SM36NL - 130 lbs; MSZ-GX06NL - 27 lbs; MSZ-GX15NL - 23 lbs; PAC-LMA30BC - 15 lbs

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for both residential and commercial environments. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX06NL and MSZ-GX15NL air handlers are designed for seamless integration into these systems. The included branch box ensures optimal refrigerant flow, enhancing overall system performance.
