Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+12K+12K

Description

This comprehensive HVAC bundle from Mitsubishi Electric includes everything you need for efficient multi-zone heating and cooling. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Paired with two wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX12NL, this setup ensures optimal comfort in various spaces. The PAC-LMA30BC branch box facilitates seamless refrigerant distribution, making this bundle perfect for both residential and commercial applications. Together, these components create a versatile and efficient HVAC system that adapts to your specific needs.

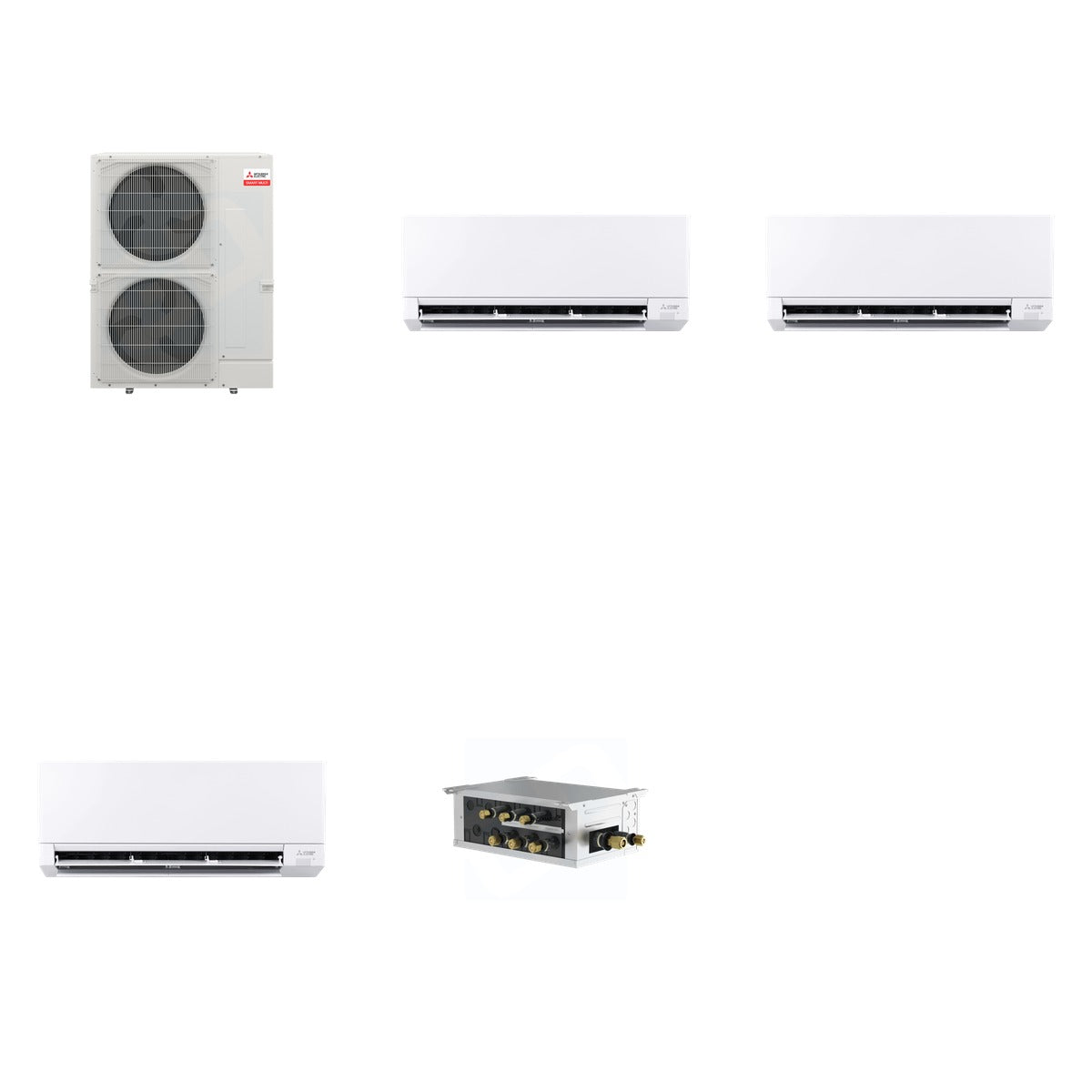

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-GX06NL), 12,000 BTU (MSZ-GX12NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 7,200 BTU (MSZ-GX06NL), 14,400 BTU (MSZ-GX12NL)
• SEER2: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX06NL and MSZ-GX12NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions: MXZ-SM36NL - 41-11/32" W x 13" D x 52-11/16" H; MSZ-GX06NL - 31-19/48" W x 9-31/48" D x 11-37/48" H; MSZ-GX12NL - 31-39" W x 9.65" D x 11.77" H
• Weight: MXZ-SM36NL - 130 lbs; MSZ-GX06NL - 27 lbs; MSZ-GX12NL - 23 lbs; PAC-LMA30BC - 15 lbs

Use & Compatibility

This bundle is ideal for residential and commercial HVAC systems requiring efficient multi-zone climate control. The MXZ-SM36NL condenser works seamlessly with the MSZ-GX06NL and MSZ-GX12NL air handlers, providing tailored heating and cooling solutions for various spaces. The PAC-LMA30BC branch box further enhances system performance by ensuring balanced refrigerant flow.
