Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+18K+18K

Description

This comprehensive HVAC bundle features high-performance equipment from Mitsubishi Electric, designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone of the system, supporting multiple indoor units for customized climate control. Complementing this condenser are the MSZ-FX09NL and MSZ-FX18NL wall-mounted air handlers, which deliver exceptional comfort with advanced filtration and smart technology. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making it easier to maintain consistent temperatures across different zones. Together, these components create a versatile and efficient multi-zone system tailored to meet diverse heating and cooling needs.

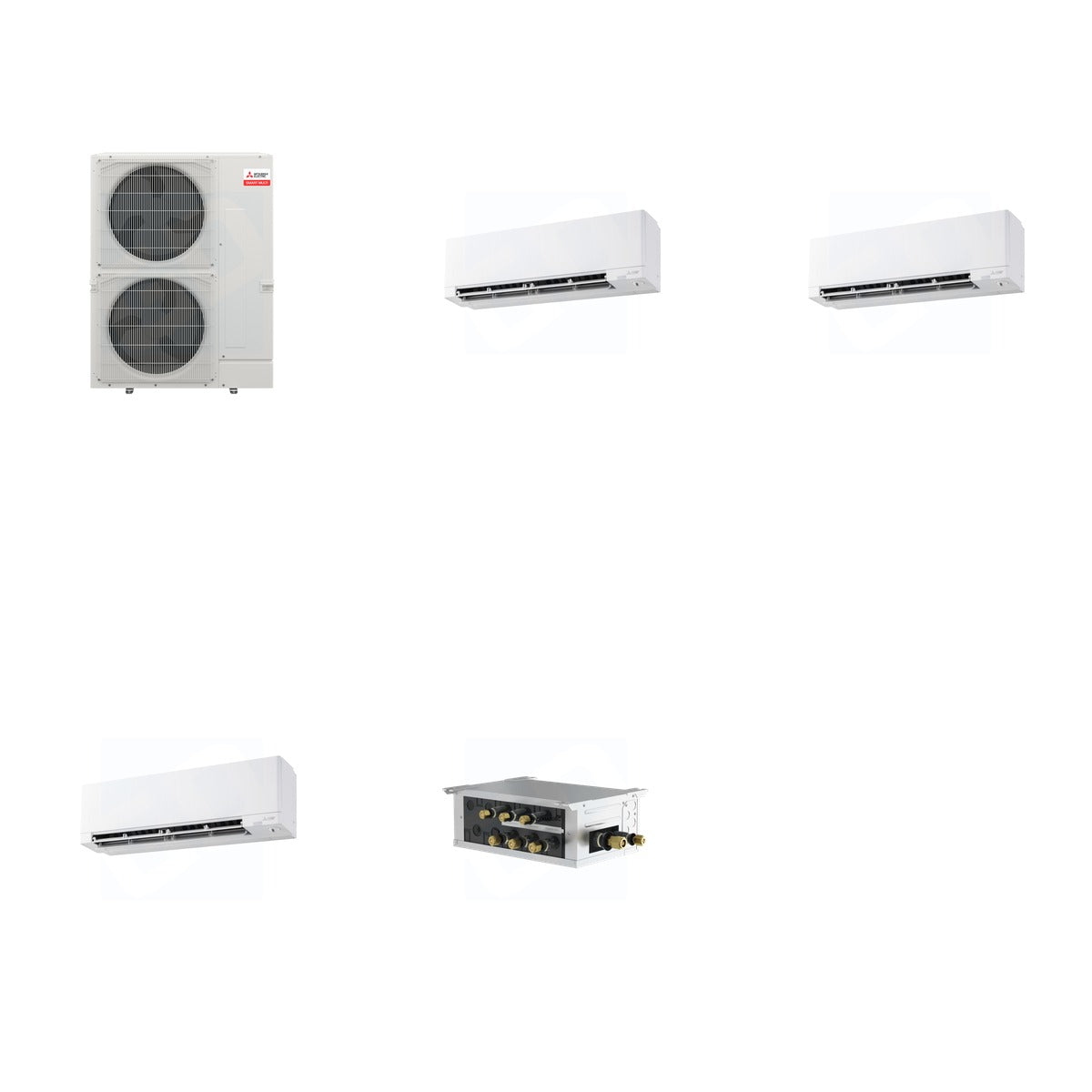

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 275.2 lb (Mitsubishi 161 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Cooling Capacity: 9,000 BTU (MSZ-FX09NL)
• Heating Capacity: 12,000 BTU (MSZ-FX09NL)
• Cooling Capacity: 18,000 BTU (MSZ-FX18NL)
• Heating Capacity: 17,000 BTU (MSZ-FX18NL)
• Refrigerant Type: R454B (all units)
• Voltage: 208/230V (all units)
• Number of Zones: Up to 11 (MXZ-SM36NL)
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)
• Dimensions: 39.27 W x 12 H x 9.75 D (MSZ-FX09NL & MSZ-FX18NL)
• Branch Box Dimensions: 17.75 W x 11.06 D x 6.75 H (PAC-LMA30BC)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and comfort across various spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-FX09NL and MSZ-FX18NL air handlers can be used in both single-zone and multi-zone configurations. The PAC-LMA30BC branch box facilitates connections to multiple indoor units, ensuring balanced refrigerant flow for optimal performance.
