Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+15K

Description

This Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for residential and commercial spaces. The combination of the MXZ-SM36NL multi-zone heat pump condenser, MSZ-FX06NL and MSZ-FX15NL wall-mounted air handlers, and the PAC-LMA30BC branch box ensures optimal performance and flexibility. The MXZ-SM36NL serves as the powerful outdoor unit, capable of supporting multiple indoor units, while the MSZ-FX06NL and MSZ-FX15NL offer tailored comfort for various room sizes. The branch box facilitates seamless refrigerant distribution, making this bundle ideal for customized climate control across different zones.

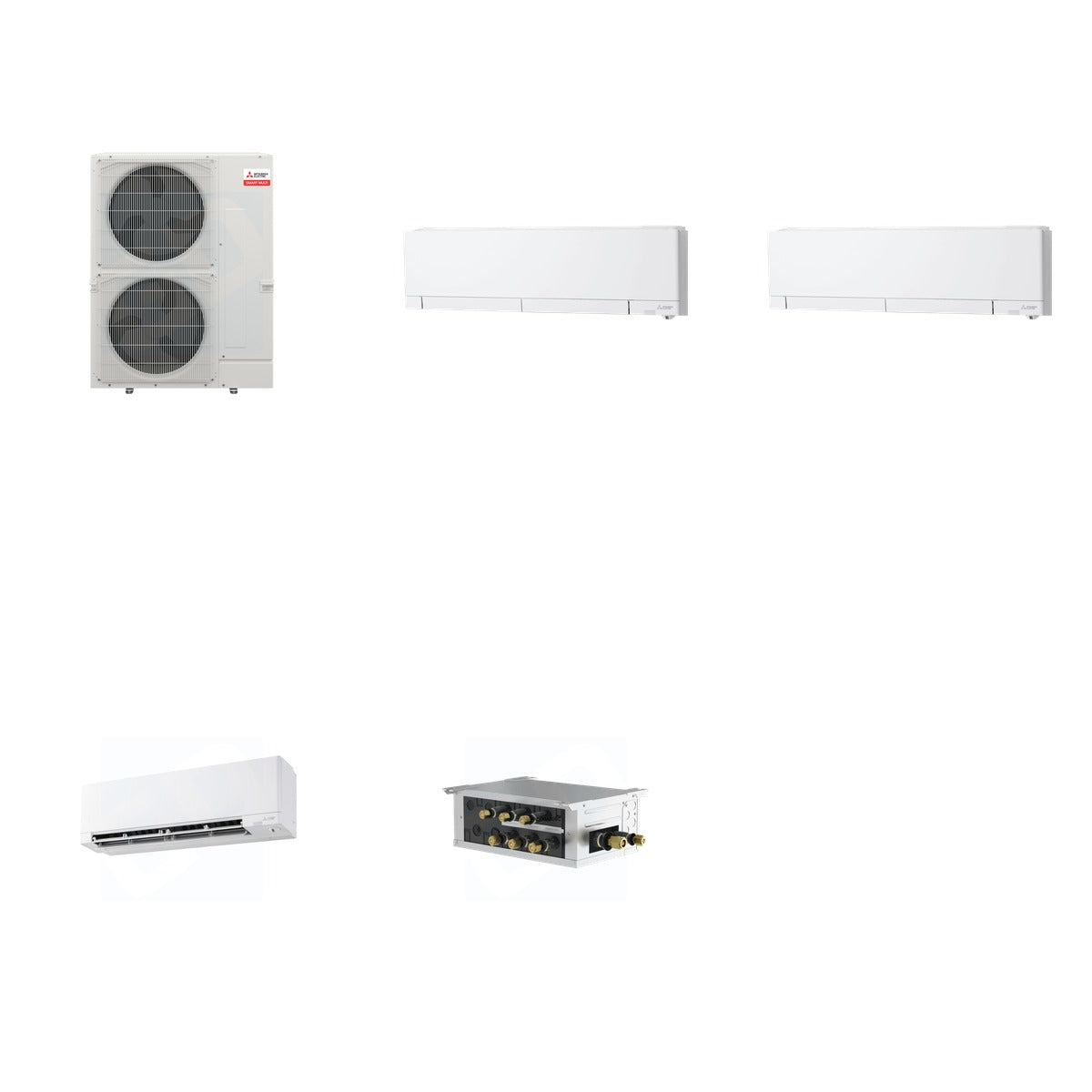

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 260.4 lb (Mitsubishi 161 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 6,000 BTU (MSZ-FX06NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 9,000 BTU (MSZ-FX06NL), 18,000 BTU (MSZ-FX15NL)
• Refrigerant Type: R454B
• SEER2 Rating: 23 (MXZ-SM36NL), Up to 35 (MSZ-FX06NL), Up to 20 (MSZ-FX15NL)
• Voltage: 208/230V
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM36NL), 39.27" W x 9.75" D x 12" H (MSZ-FX06NL), 39-9/32" W x 9-3/4" D x 12" H (MSZ-FX15NL)
• Weight: 36.4 lbs (MSZ-FX06NL, MSZ-FX15NL), 15 lbs (PAC-LMA30BC)

Use & Compatibility

This HVAC bundle is perfect for both residential and commercial applications, providing efficient heating and cooling for multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-FX06NL and MSZ-FX15NL air handlers are designed for use in single-zone or multi-zone systems. The PAC-LMA30BC branch box ensures balanced refrigerant flow, making it an essential component for optimal performance.
