Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+12K+12K

Description

This comprehensive HVAC bundle features essential components for a multi-zone heating and cooling system, perfect for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone, capable of supporting up to 11 indoor units without a branch box. Paired with two Mitsubishi Electric MSZ-FX12NL and one MSZ-FX06NL wall-mounted air handlers, this setup provides efficient climate control across multiple zones. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, enhancing system performance and comfort. Together, these products deliver a high-efficiency, customizable solution for your heating and cooling needs.

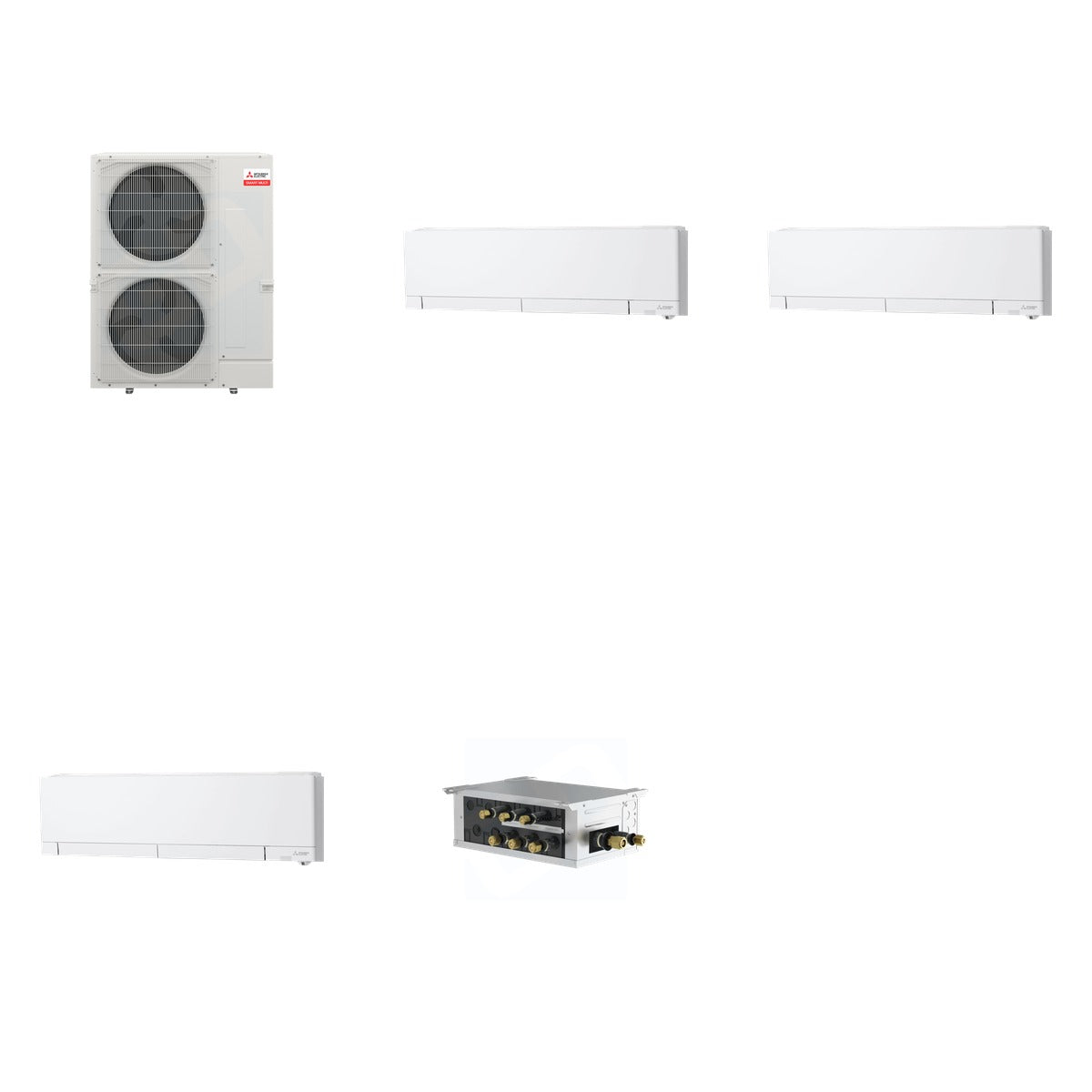

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 267.8 lb (Mitsubishi 161 lb + Mitsubishi 29 lb + Mitsubishi 72.8 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Cooling: 6,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX12NL)
• SEER2 Rating: Up to 35 (MSZ-FX units)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-FX06NL/MSZ-FX12NL): 39.27 W x 9.75 D x 12 H
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, allowing for tailored heating and cooling in different areas of your home or business. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-FX06NL and MSZ-FX12NL air handlers provide efficient climate control for individual rooms. The PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and multiple indoor units, ensuring balanced refrigerant flow and optimal performance.
