Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 12K+12K+18K

Description

This comprehensive HVAC bundle features high-efficiency components from Mitsubishi Electric, designed to provide optimal heating and cooling for both residential and commercial spaces. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse of the system, capable of supporting multiple indoor units for customized climate control. Paired with the MSZ-FX12NL and MSZ-FX18NL wall-mounted air handlers, this bundle offers versatile heating and cooling options with advanced filtration and smart technology. The PAC-LMA30BC branch box ensures seamless integration and balanced refrigerant flow, making this bundle an ideal choice for those seeking efficient and effective climate management across various zones.

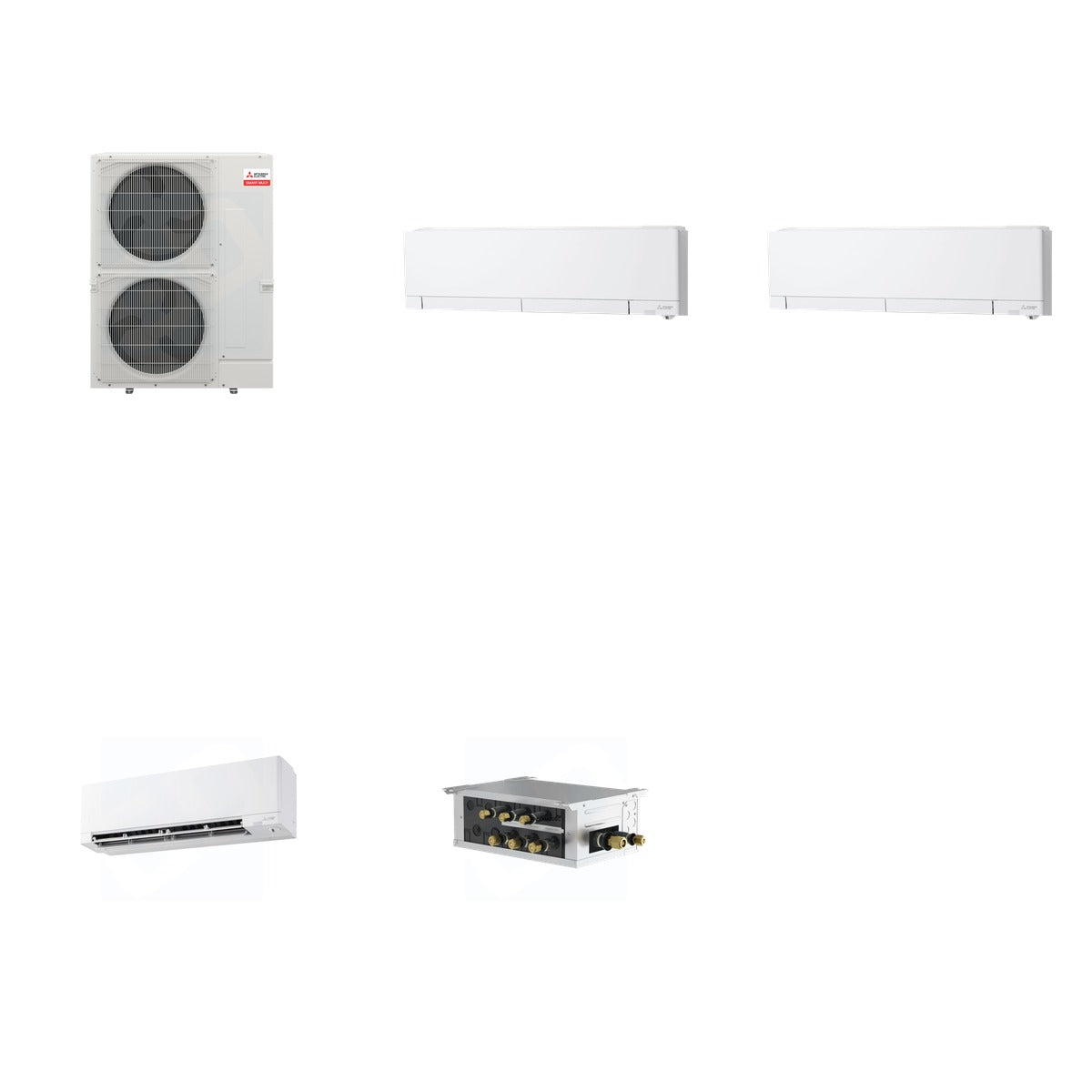

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 275.2 lb (Mitsubishi 161 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 12,000 BTU (MSZ-FX12NL), 18,000 BTU (MSZ-FX18NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 13,200 BTU (MSZ-FX12NL), 17,000 BTU (MSZ-FX18NL)
• Refrigerant Type: R454B
• SEER2: 23 (MXZ-SM36NL), Up to 35 (MSZ-FX12NL), 25.5 (MSZ-FX18NL)
• Voltage: 208/230 V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H inches
• Dimensions (MSZ-FX12NL & MSZ-FX18NL): 39.27 W x 9.75 D x 12 H inches
• Branch Box Dimensions: 17.75 W x 11.06 D x 6.75 H inches

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The MXZ-SM36NL condenser works seamlessly with the MSZ-FX12NL and MSZ-FX18NL air handlers, providing efficient climate control across multiple zones. The PAC-LMA30BC branch box facilitates the connection of up to three indoor units, ensuring balanced refrigerant distribution for optimal performance.
