Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized climate control across multiple zones. Paired with two SLZ-AF09NL and one SLZ-AF15NL ceiling cassette indoor units, this bundle ensures optimal air distribution and temperature management. The included PAC-LMA30BC branch box facilitates seamless connections among the indoor units, while the SLP-18FAU grilles enhance the aesthetic and functional performance of the system. Together, these components create a versatile and efficient climate control system tailored to your specific needs.

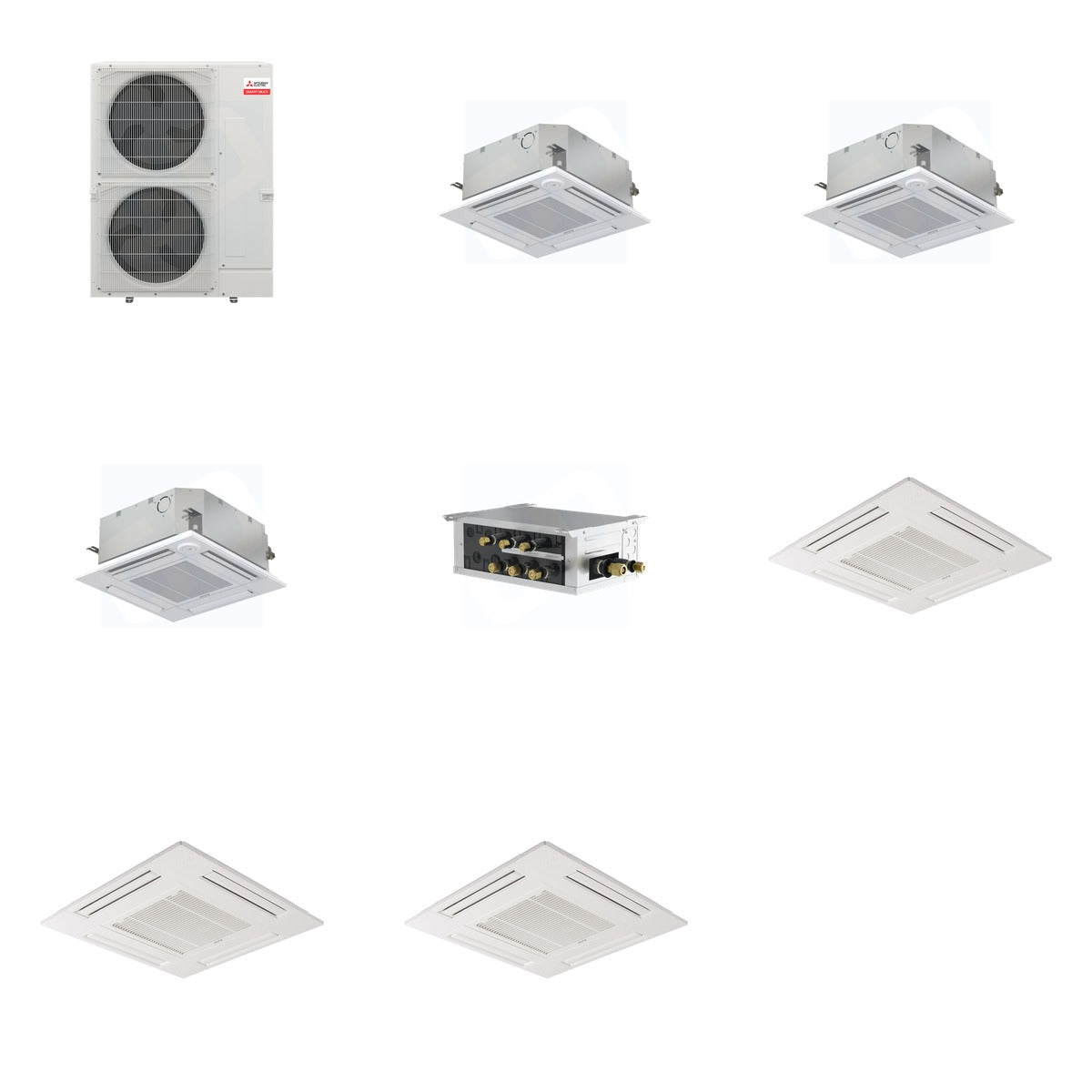

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 286 lb (Mitsubishi 161 lb + Mitsubishi 66 lb + Mitsubishi 33 lb + Mitsubishi 5 lb + Mitsubishi 21 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, 4 zones (11 without branch box), SEER2: 23
• SLZ-AF09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V, 25-31 dB sound level
• SLZ-AF15NL: 15,000 BTU cooling, 18,000 BTU heating, 208/230V, 27-39 dB sound level
• PAC-LMA30BC: Connects 3 indoor units, R454B compatible, dimensions: 17.75 x 11.06 x 6.75 inches
• SLP-18FAU: Grille for SLZ-AF series, designed for ceiling installation

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SLZ-AF09NL and SLZ-AF15NL units fit seamlessly into standard ceiling grids. Ideal for both residential and commercial applications, this system ensures optimal comfort and energy efficiency.
