Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control across various zones. Complementing this are three MLZ-KX06NL One-Way Ceiling Cassette Indoor Units, perfect for spaces up to 200 square feet, ensuring optimal comfort in each room. To facilitate seamless refrigerant distribution, the PAC-LMA30BC 3-Port Branch Box is included, allowing for balanced performance across the connected indoor units. Additionally, the MLP-448WU Grilles enhance air circulation, ensuring that every corner of your space benefits from efficient airflow.

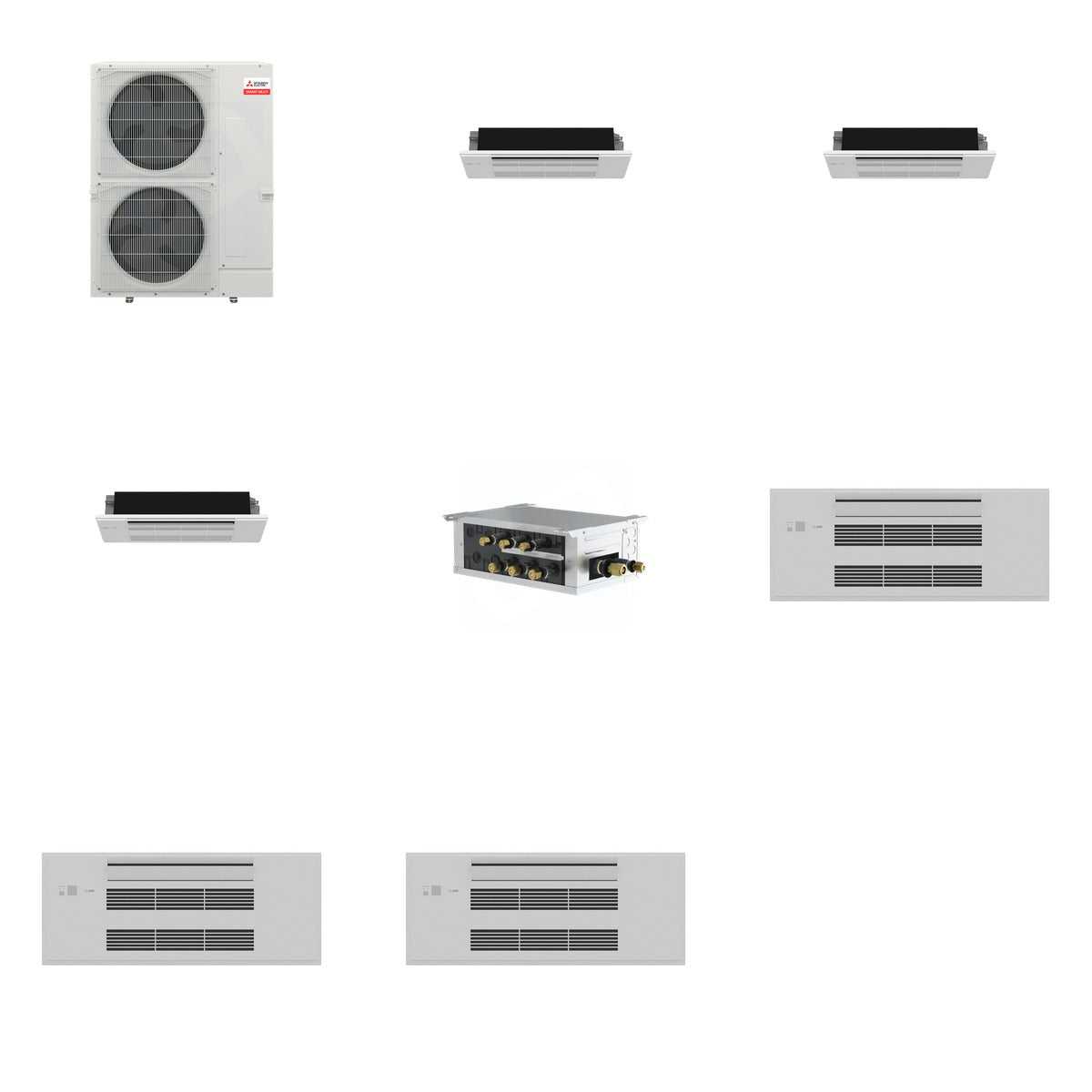

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KX Series) (Qty x3)

Key Details

• Weight of Bundle: 289 lb (Mitsubishi 161 lb + Mitsubishi 102 lb + Mitsubishi 5 lb + Mitsubishi 21 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL)
• Number of Zones: Up to 4 (with branch box) or 11 (without branch box)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MLZ-KX06NL): 33-3/16 W x 11-7/8 D x 7-11/16 H
• Dimensions (PAC-LMA30BC): 17-3/4 W x 11-1/16 D x 6-3/4 H
• Dimensions (MLP-448WU): 16.5 W x 38.5 L x 4.25 H

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency in temperature control. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MLZ-KX06NL units are designed for installation in tight spaces. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making it suitable for both residential and commercial HVAC systems.
