Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 3-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customizable climate control across multiple zones. Complementing the condenser are two ceiling cassette indoor units, the MLZ-KX06NL and MLZ-KX12NL, which deliver powerful heating and cooling in compact designs. The inclusion of the PAC-LMA30BC branch box ensures optimal refrigerant distribution, while the MLP-448WU and MLP-449WU grilles enhance airflow and system efficiency. Together, these components create a versatile and effective multi-zone HVAC system.

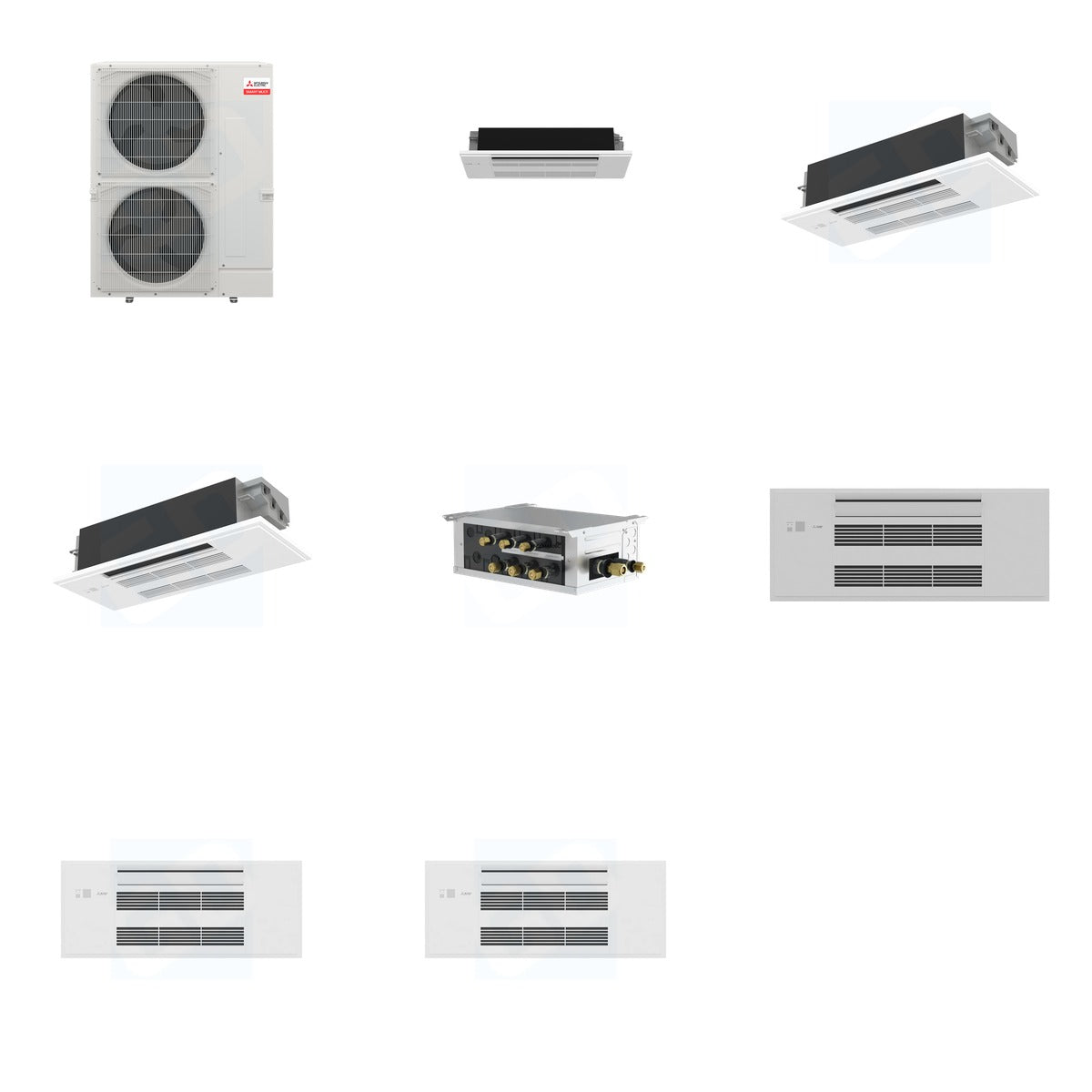

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 295 lb (Mitsubishi 161 lb + Mitsubishi 34 lb + Mitsubishi 68 lb + Mitsubishi 5 lb + Mitsubishi 7 lb + Mitsubishi 20 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Number of Zones: Up to 4 (with branch box) or 11 (without branch box)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Airflow (MLZ-KX06NL): 152-198 CFM
• Noise Level: 29-36 dB(A) (Cooling, MLZ-KX06NL)
• Dimensions (MLZ-KX12NL): 43-3/8 W x 14-3/16 D x 7-5/16 H
• Weight: 34 lbs (MLZ-KX12NL)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The MXZ-SM36NL condenser works seamlessly with M-, P-Series, and CITY MULTI indoor units, while the MLZ-KX06NL and MLZ-KX12NL ceiling cassettes provide efficient climate control for spaces up to 200 and 300 square feet, respectively. The included branch box and grilles ensure optimal performance and air distribution throughout the system.
