Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 9K+18K

Description

This comprehensive Mitsubishi Electric bundle is designed for those seeking efficient and customizable climate control in their homes or businesses. Featuring the MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system can connect to multiple indoor units, allowing for tailored heating and cooling across different zones. The included MSZ-GX09NL and MSZ-GX18NL wall-mounted air handlers provide quiet operation and advanced features like built-in Wi-Fi and superior filtration, ensuring comfort and air quality. To optimize refrigerant distribution, the PAC-LMA30BC branch box allows seamless connections between the outdoor unit and up to three indoor units, enhancing system efficiency and performance.

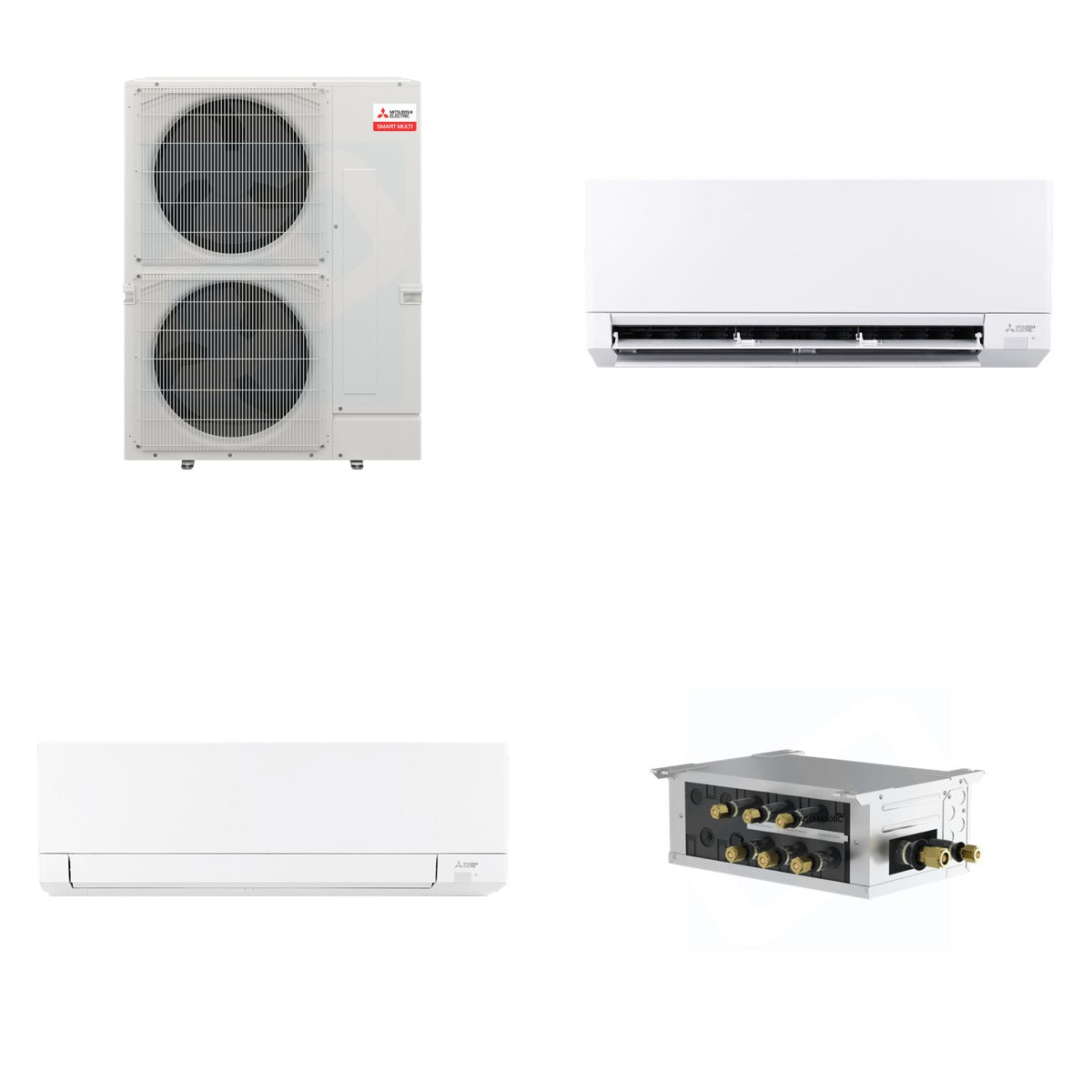

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 216 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 9,000 BTU (MSZ-GX09NL), 18,000 BTU (MSZ-GX18NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 10,900 BTU (MSZ-GX09NL), 19,000 BTU (MSZ-GX18NL)
• SEER2: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX09NL), 22.5 (MSZ-GX18NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H inches
• Dimensions (MSZ-GX09NL): 34-1/8 W x 12-5/8 H x 8-1/4 D inches
• Dimensions (MSZ-GX18NL): 43-5/16 W x 12-13/16 H x 10-1/8 D inches
• Dimensions (PAC-LMA30BC): 17-3/4 W x 11-1/16 D x 6-3/4 H inches

Use & Compatibility

This bundle is ideal for residential and commercial applications requiring efficient heating and cooling solutions. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX09NL and MSZ-GX18NL air handlers are designed for use in multi-zone systems. The PAC-LMA30BC branch box facilitates connections between the outdoor unit and multiple indoor units, ensuring optimal performance and comfort.
