Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this package allows for customized climate control across multiple zones, making it ideal for larger spaces. Complementing the condenser are two wall-mounted air handlers, the MSZ-GX09NL and MSZ-GX15NL, which offer quiet operation and advanced filtration for improved indoor air quality. Additionally, the PAC-LMA30BC 3-Port Branch Box ensures optimal refrigerant distribution, enhancing system performance and efficiency. Together, these components create a powerful and versatile HVAC system that meets diverse heating and cooling needs.

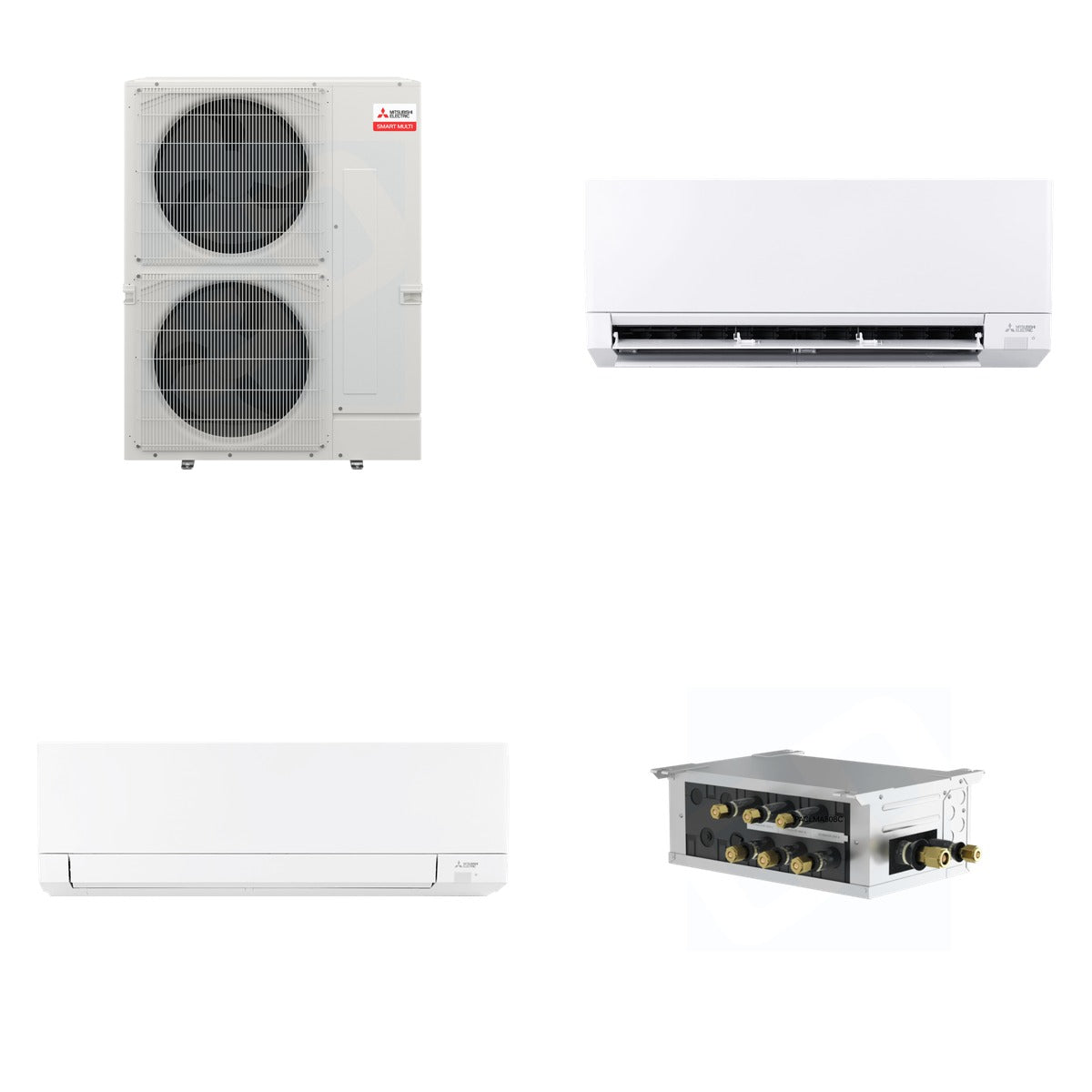

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 210 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Condenser Capacity: 36,000 BTU
• Air Handler 1 Capacity: 9,000 BTU
• Air Handler 2 Capacity: 15,000 BTU
• Refrigerant Type: R454B
• SEER2: Up to 28.4
• Heating Capacity (Condenser): 41,000 BTU at 47°F
• Heating Capacity (Air Handler 1): 10,900 BTU
• Heating Capacity (Air Handler 2): 18,000 BTU
• Voltage: 208/230 Volts
• Dimensions (Condenser): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Air Handler 1): 11.77 H x 31.40 W x 9.65 D
• Dimensions (Air Handler 2): 11.77 H x 31.40 W x 9.65 D
• Branch Box Dimensions: 17.75 W x 11.06 D x 6.75 H

Use & Compatibility

This HVAC bundle is perfect for multi-zone heating and cooling applications, allowing for individual room control and comfort. The MXZ-SM36NL condenser works seamlessly with the MSZ-GX09NL and MSZ-GX15NL air handlers, providing a flexible solution for various indoor environments. The PAC-LMA30BC branch box enhances system efficiency by connecting multiple indoor units, making it suitable for both residential and commercial installations.
