Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 9K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, providing up to 36,000 BTU of cooling and heating capacity. Paired with the MSZ-GX09NL and MSZ-GX12NL wall-mounted air handlers, which offer 9,000 and 12,000 BTU respectively, this combination allows for customized comfort across multiple zones. The PAC-LMA30BC branch box facilitates seamless connections between the indoor units and the condenser, ensuring optimal refrigerant distribution and temperature control. Together, these products deliver a robust solution for both residential and commercial applications.

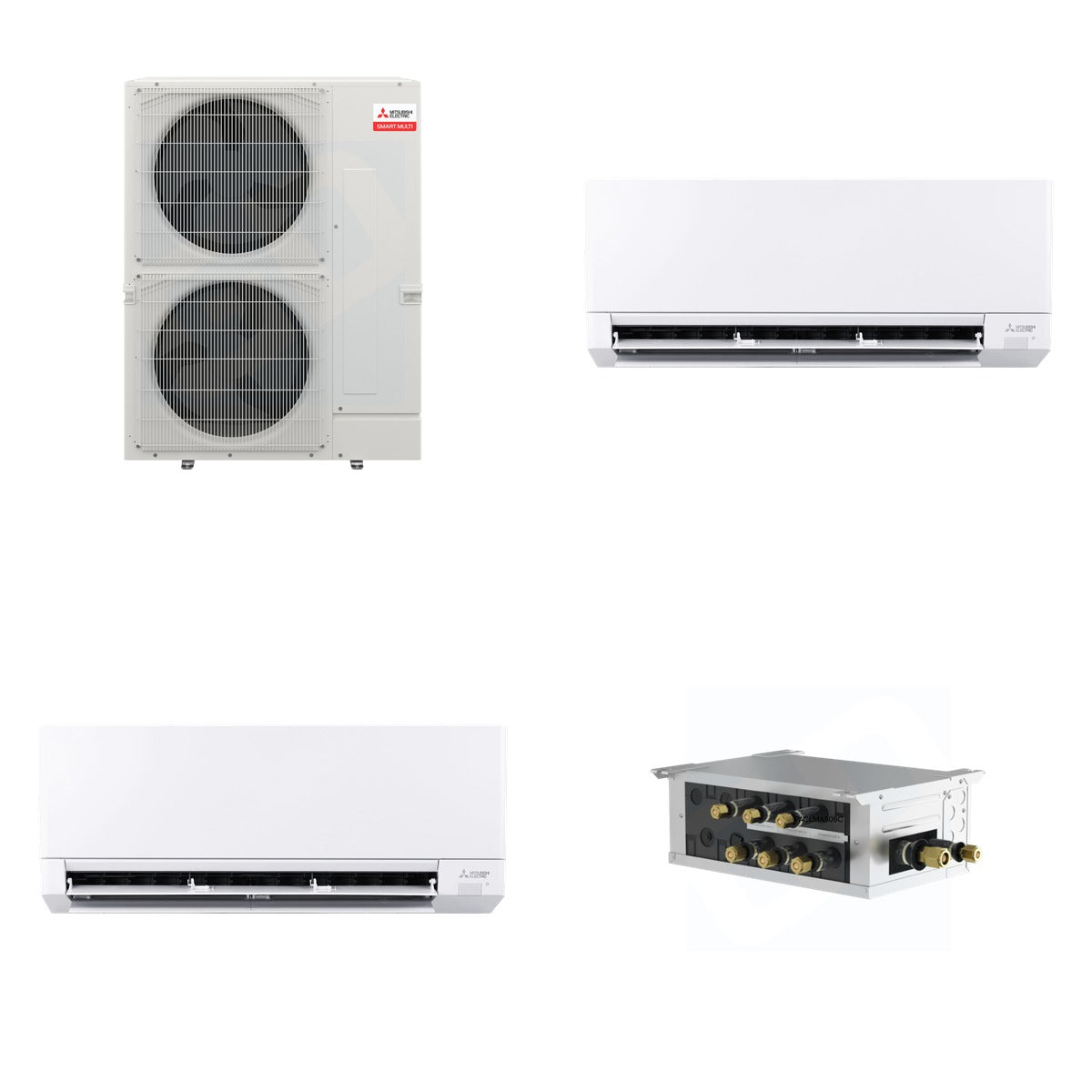

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 210 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Units: 4 zones (with branch box) or 11 zones (without branch box)
• Refrigerant Type: R454B
• SEER2 Rating: Up to 28.4 (MSZ-GX09NL & MSZ-GX12NL)
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB (MSZ-GX09NL & MSZ-GX12NL)
• Dimensions (PAC-LMA30BC): 17.75 x 11.06 x 6.75 inches

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, ideal for residential and commercial spaces. The MXZ-SM36NL condenser works seamlessly with the MSZ-GX09NL and MSZ-GX12NL air handlers, providing efficient climate control tailored to individual room needs. The PAC-LMA30BC branch box enhances system flexibility, allowing for multiple indoor unit connections.
