Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K

Description

This comprehensive Mitsubishi Electric bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful MXZ-SM36NL multi-zone heat pump condenser, this bundle allows for customized climate control across multiple zones. Paired with two wall-mounted air handlers, the MSZ-GX06NL and MSZ-GX09NL, this setup ensures optimal comfort in various room sizes. The inclusion of the PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and indoor units, ensuring balanced refrigerant flow and efficient operation. Together, these components create a versatile and effective HVAC system tailored to your specific needs.

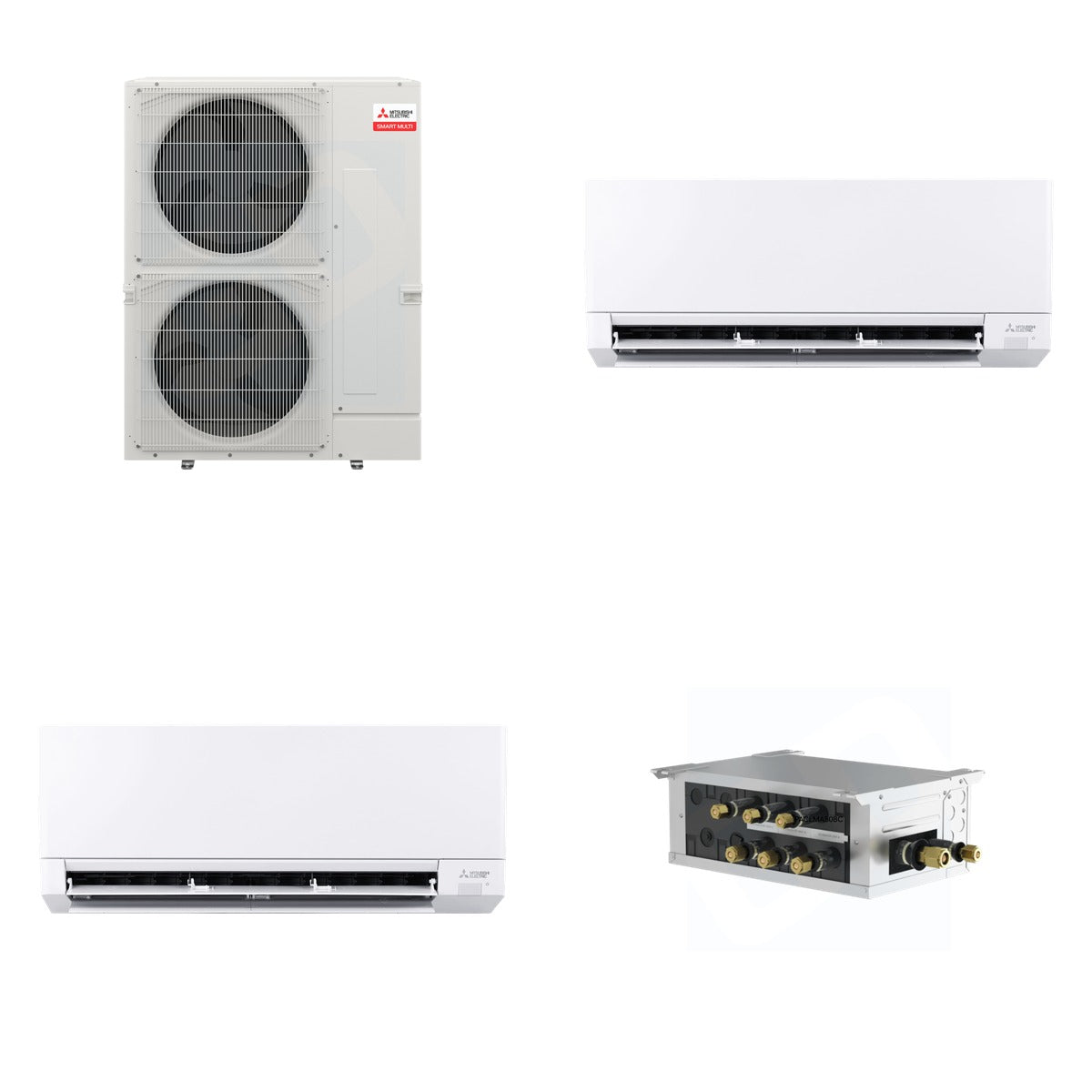

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 210 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Air Handler Cooling Capacity: 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX06NL): 31-19/48 W x 9-31/48 D x 11-37/48 H
• Dimensions (MSZ-GX09NL): 31-19/48 W x 9-31/48 D x 11-37/48 H
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, perfect for homes or commercial spaces requiring individualized climate control. The MXZ-SM36NL condenser works seamlessly with the MSZ-GX06NL and MSZ-GX09NL air handlers, allowing for efficient operation across up to 11 zones. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making this setup versatile and effective for various applications.
