Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 18K+24K

Description

This comprehensive Mitsubishi Electric bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful multi-zone heat pump condenser and three advanced wall-mounted air handlers, this set allows for customized climate control across multiple zones. The MXZ-SM36NL condenser supports up to 11 indoor units, while the MSZ-GX18NL and MSZ-GX24NL air handlers offer advanced filtration and user-friendly features like built-in Wi-Fi. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making this bundle perfect for creating a comfortable and energy-efficient environment.

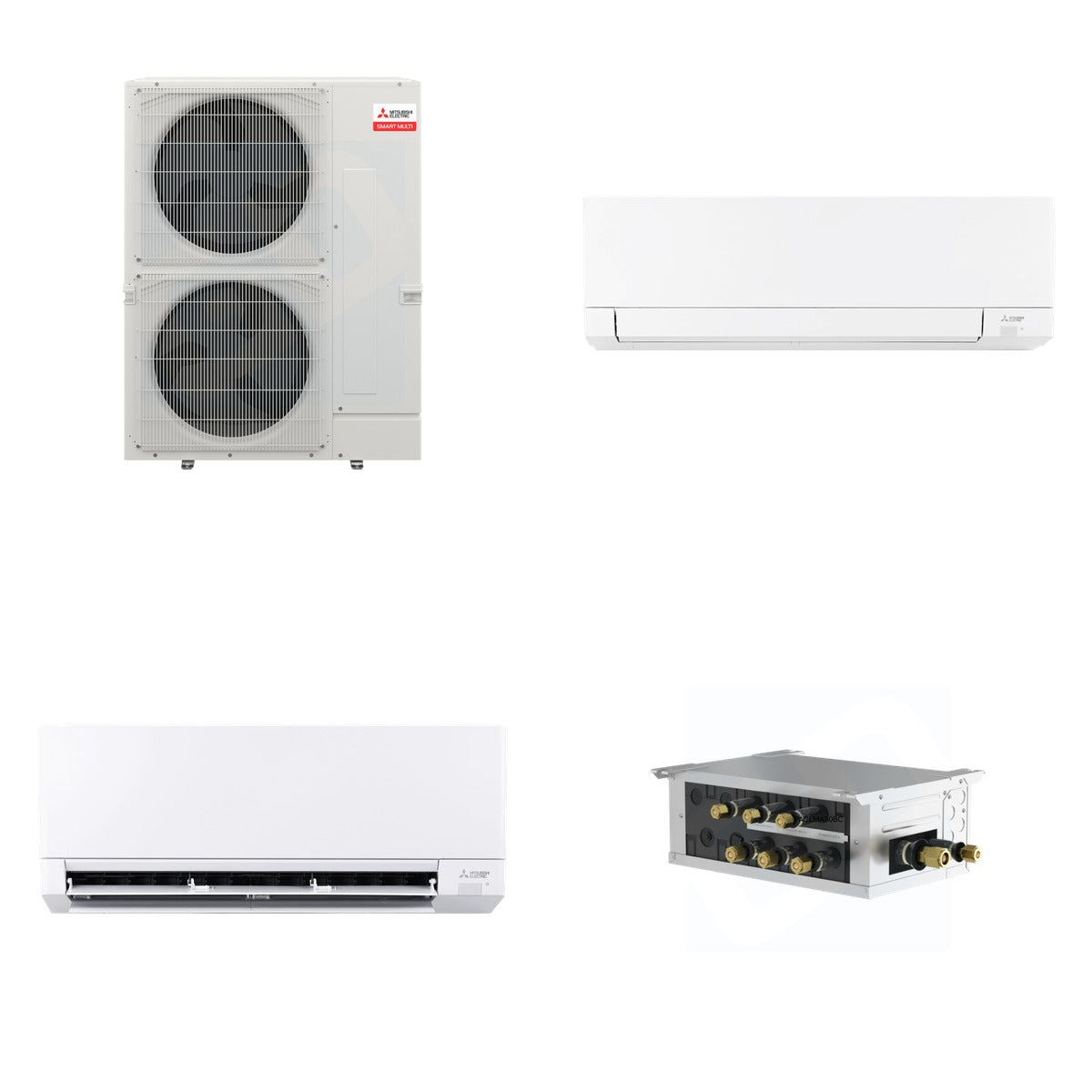

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - Mitsubishi Electric MSZ-GX24NL R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 222 lb (Mitsubishi 161 lb + Mitsubishi 28 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 18,000 BTU (MSZ-GX18NL), 24,000 BTU (MSZ-GX24NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 19,000 BTU (MSZ-GX18NL), 27,600 BTU (MSZ-GX24NL)
• SEER2: 23 (MXZ-SM36NL), 22.5 (MSZ-GX18NL), Up to 28.4 (MSZ-GX24NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-GX18NL): 12 13/16 H x 43 5/16 W x 10 1/8 D
• Dimensions (MSZ-GX24NL): 12 13/16 H x 43 5/16 W x 10 1/8 D
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for various spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX18NL and MSZ-GX24NL air handlers are designed for seamless integration into mini-split systems. The PAC-LMA30BC branch box enhances system performance by connecting multiple indoor units, ensuring balanced refrigerant flow and optimal temperature maintenance.
