Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 12K+18K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric components designed for efficient heating and cooling across multiple zones. The MXZ-SM36NL multi-zone heat pump condenser serves as the powerhouse, capable of supporting up to 11 indoor units, while the MSZ-GX12NL and MSZ-GX18NL wall-mounted air handlers provide customizable comfort with advanced filtration and smart technology. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making this bundle perfect for both residential and commercial applications. Together, these products create a seamless and energy-efficient climate control system tailored to your specific needs.

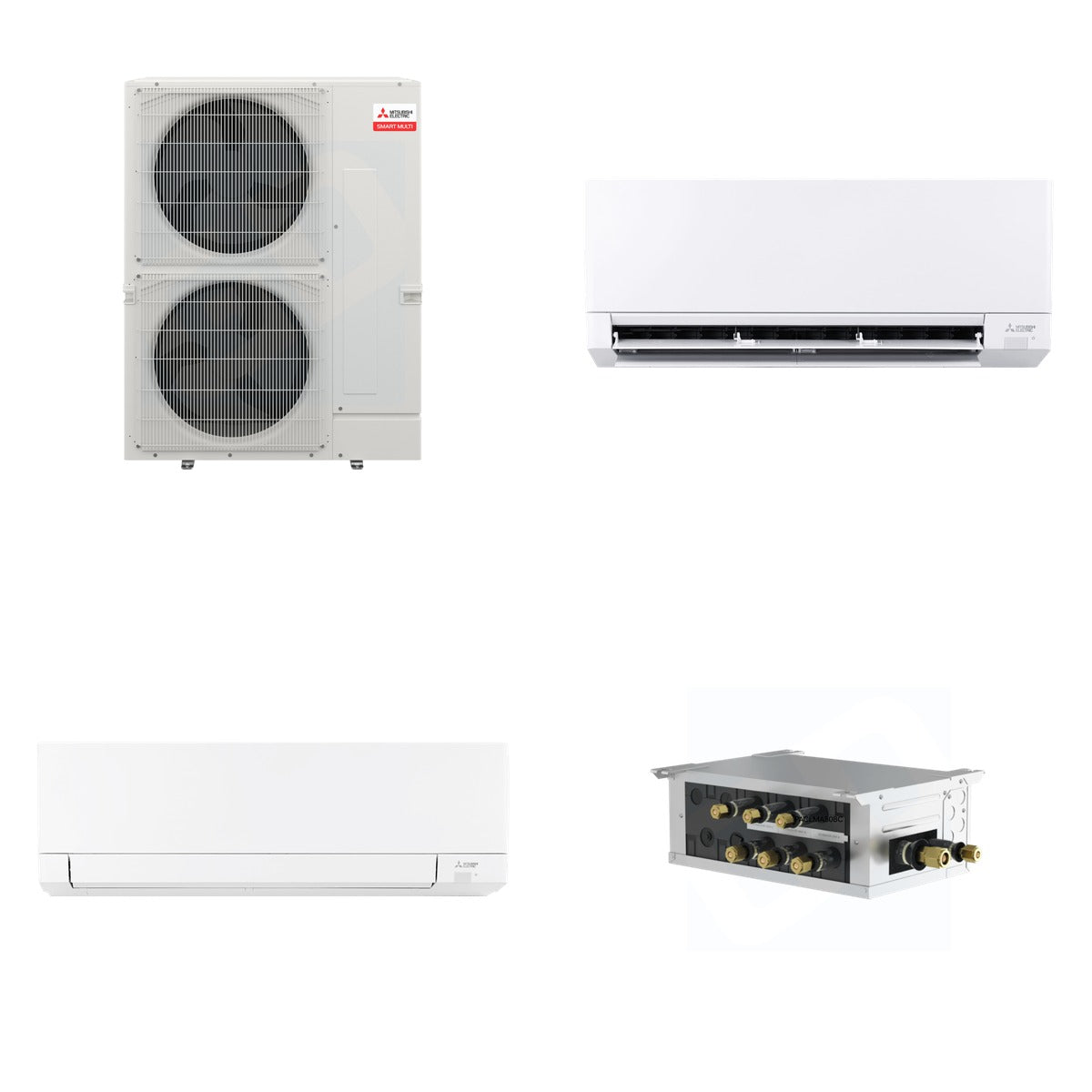

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 216 lb (Mitsubishi 161 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 12,000 BTU (MSZ-GX12NL), 18,000 BTU (MSZ-GX18NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 14,400 BTU (MSZ-GX12NL), 19,000 BTU (MSZ-GX18NL)
• SEER2: 23 (MXZ-SM36NL), Up to 28.4 (MSZ-GX12NL), 22.5 (MSZ-GX18NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM36NL), 11.77 x 31.39 x 9.65 inches (MSZ-GX12NL), 12 13/16 x 43 5/16 x 10 1/8 inches (MSZ-GX18NL)
• Weight: 117 lbs (MXZ-SM36NL), 37 lbs (MSZ-GX18NL), 23 lbs (MSZ-GX12NL)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications in both residential and commercial settings. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-GX12NL and MSZ-GX18NL air handlers provide efficient climate control in individual rooms. The PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and multiple indoor units, ensuring balanced performance and comfort.
