Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized climate control across multiple zones, ensuring comfort in every room. Paired with the MSZ-FX06NL and MSZ-FX18NL wall-mounted air handlers, this bundle provides a range of capacities to suit various room sizes and needs. The included PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and multiple indoor units, optimizing refrigerant distribution for balanced performance. Together, these components create a versatile, energy-efficient system that adapts to your specific comfort requirements.

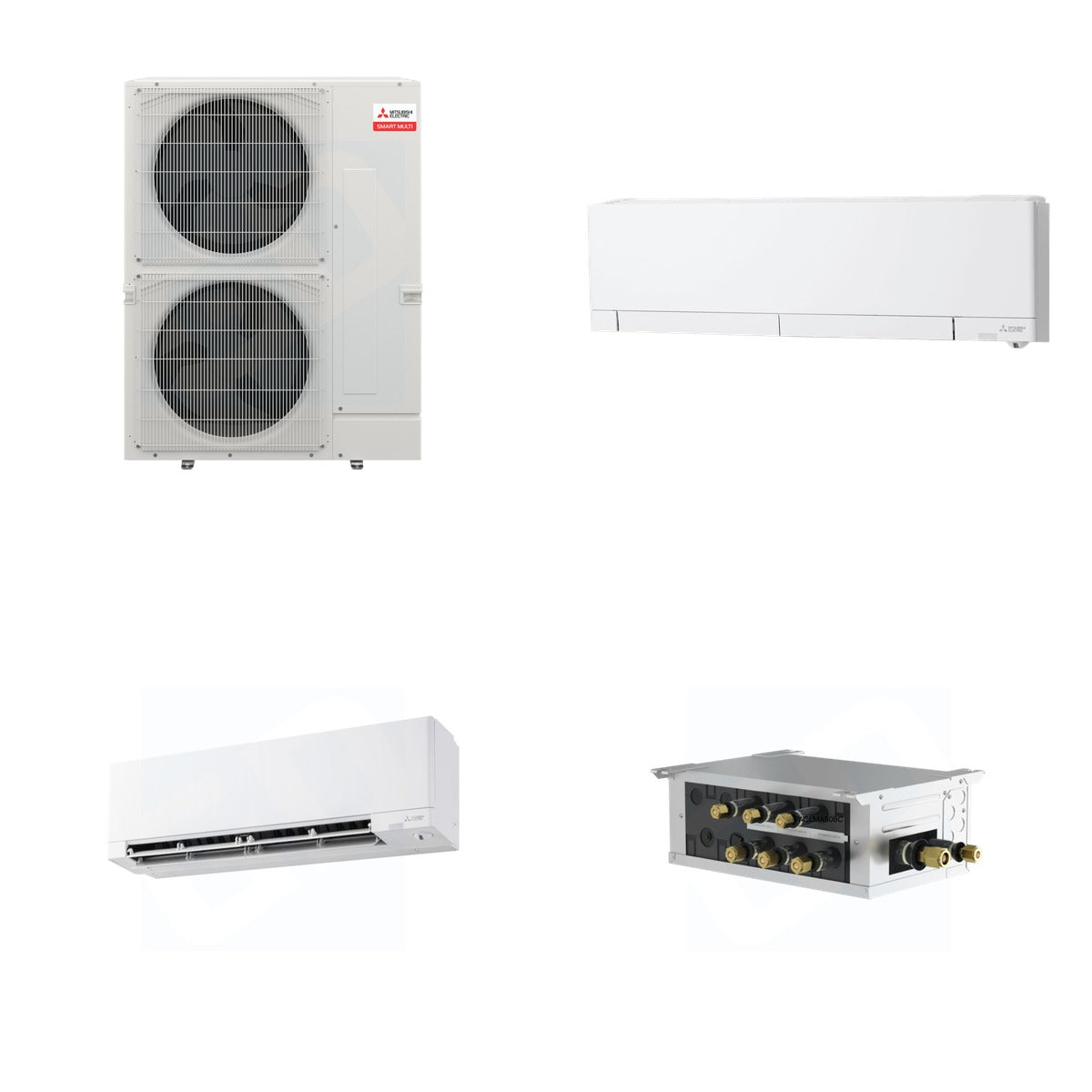

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 231.4 lb (Mitsubishi 161 lb + Mitsubishi 29 lb + Mitsubishi 36.4 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Cooling BTU: 6,000 (MSZ-FX06NL), 18,000 (MSZ-FX18NL)
• SEER2 Rating: 23 (MXZ-SM36NL), Up to 35 (MSZ-FX06NL)
• HSPF2 Rating: 11 (MXZ-SM36NL), Up to 13.3 (MSZ-FX06NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)
• Weight: 15 lbs (PAC-LMA30BC)

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The MXZ-SM36NL condenser can connect to up to 4 indoor units with a branch box or 11 without, while the MSZ-FX06NL and MSZ-FX18NL air handlers are designed for seamless integration into single-zone or multi-zone systems. The PAC-LMA30BC branch box ensures optimal refrigerant flow and temperature maintenance across connected indoor units.
