Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 12K+12K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone, providing robust heating and cooling capabilities for up to 11 zones. Paired with two MSZ-FX12NL wall-mounted air handlers, this setup ensures optimal comfort in various rooms with advanced filtration and smart control features. The PAC-LMA30BC branch box facilitates seamless connections between the condenser and air handlers, ensuring balanced refrigerant flow and efficient temperature maintenance. Together, these components create a reliable and customizable climate control solution for both residential and commercial applications.

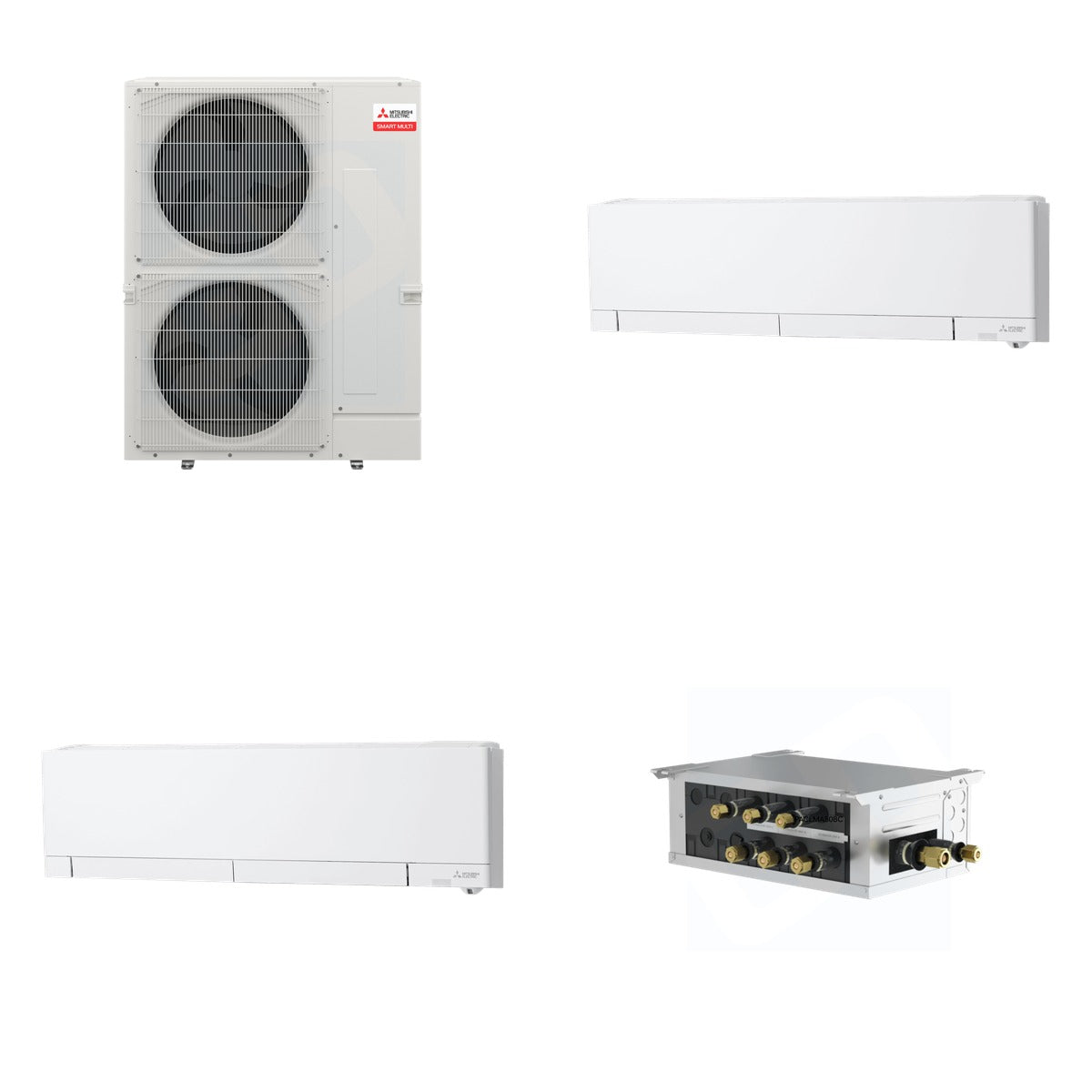

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 238.8 lb (Mitsubishi 161 lb + Mitsubishi 72.8 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• SEER2: 23 (MXZ-SM36NL), Up to 35 (MSZ-FX12NL)
• HSPF2: 11 (MXZ-SM36NL), Up to 13.3 (MSZ-FX12NL)
• Voltage: 208/230 Volts
• Refrigerant Type: R454B
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (MSZ-FX12NL): 39.27 W x 12 H x 9.75 D
• Dimensions (PAC-LMA30BC): 17.75 W x 11.06 D x 6.75 H

Use & Compatibility

This bundle is designed for multi-zone HVAC applications, making it ideal for both residential and commercial environments. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MSZ-FX12NL air handlers provide efficient heating and cooling for individual rooms. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among the connected units, making this setup versatile and efficient.
