Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone Floor-Mounted Mini Split Heat Pump System - 9K+12K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling for both residential and commercial applications. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control across various zones. Paired with the MFZ-KX09NL and MFZ-KX12NL floor-mounted mini split systems, this bundle offers versatile installation options, particularly in spaces where wall-mounted units are impractical. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, making it the perfect addition to enhance system performance and efficiency.

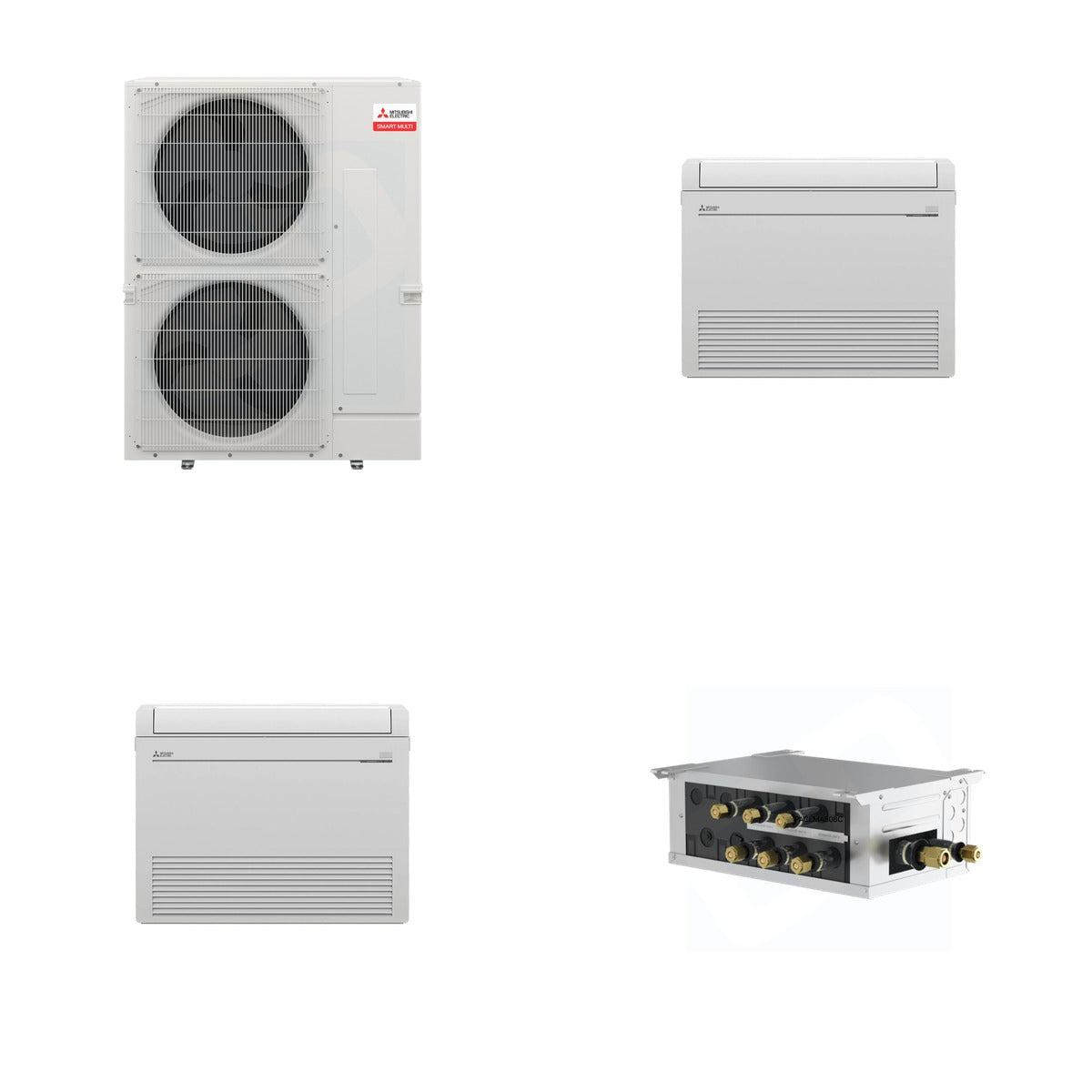

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

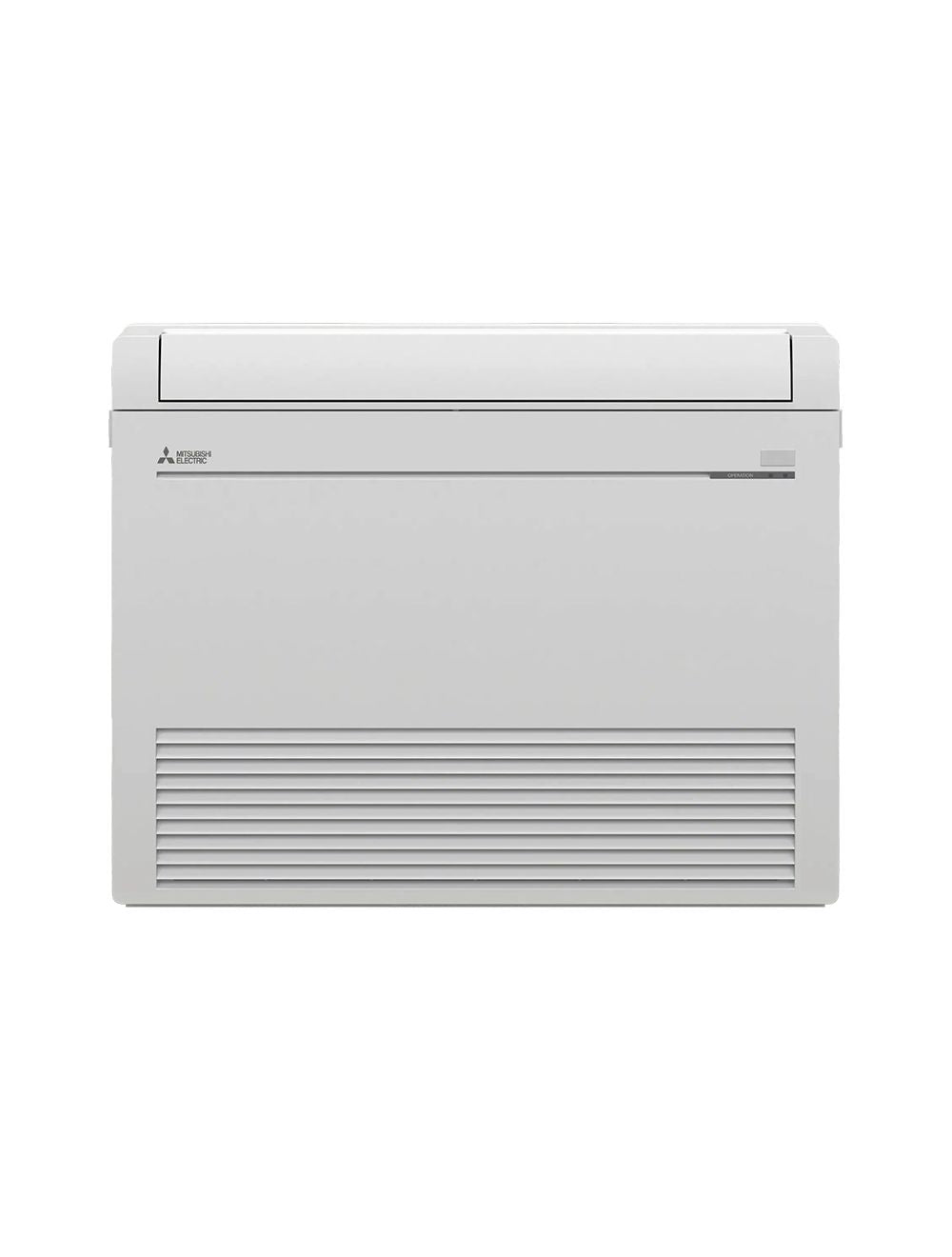

• MITSUBISHI ELECTRIC MFZ-KX09NL - Mitsubishi Electric MFZ-KX09NL M-Series H2i Floor Mounted Mini Split Heat Pump System 9k BTU (Qty x1)
• MITSUBISHI ELECTRIC MFZ-KX12NL - Mitsubishi Electric MFZ-KX12NL M-Series H2i Floor Mounted Mini Split Heat Pump System 12k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 232 lb (Mitsubishi 161 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• SEER2: 23 (MXZ-SM36NL)
• Heating Capacity: 12,000 BTU (MFZ-KX09NL)
• Heating Capacity: 15,000 BTU (MFZ-KX12NL)
• Voltage: 208/230 Volts (all units)
• Refrigerant Type: R454B (all units)
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)
• Dimensions: 23.625 H x 29.5 W x 8.4375 D (MFZ-KX09NL)
• Dimensions: 23.625 H x 29.5 W x 8.4375 D (MFZ-KX12NL)
• Dimensions: 17.75 W x 11.0625 D x 6.75 H (PAC-LMA30BC)

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system in residential or commercial settings. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the MFZ-KX09NL and MFZ-KX12NL floor-mounted units are designed for use in conjunction with the outdoor condenser. The PAC-LMA30BC branch box facilitates the connection of up to three indoor units, ensuring balanced refrigerant flow and optimal performance.
