Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+24K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone of the system, allowing for customizable climate control across multiple zones. Paired with the PLA-AE12NL and PLA-AE24NL ceiling cassette air handlers, this bundle ensures optimal air distribution and comfort in any space. The PAC-LMA30BC branch box facilitates seamless connections between indoor units, while the PLP-41EAEU ceiling cassette grilles enhance airflow and system performance. Together, these components create a powerful, energy-efficient system tailored to meet diverse climate control needs.

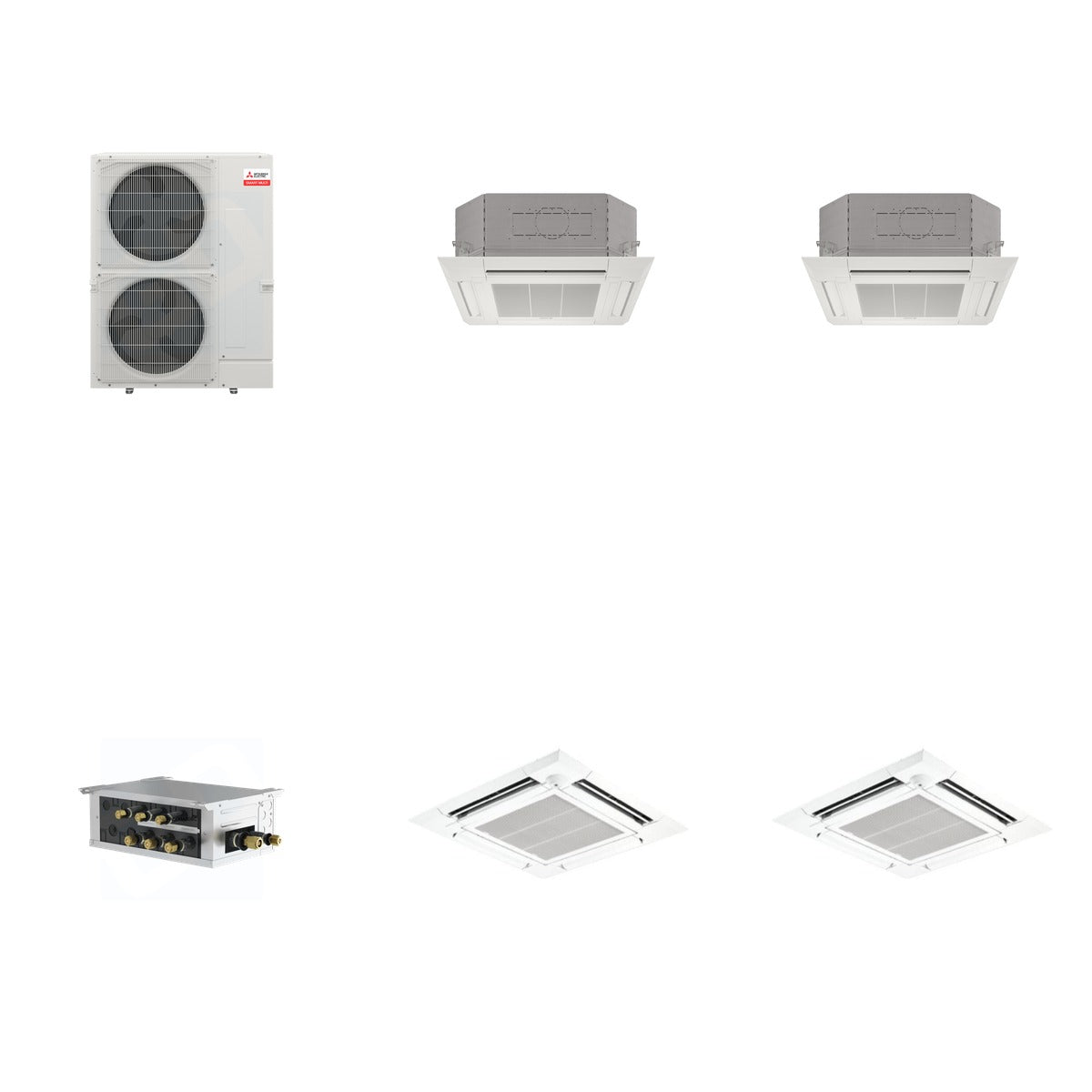

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)

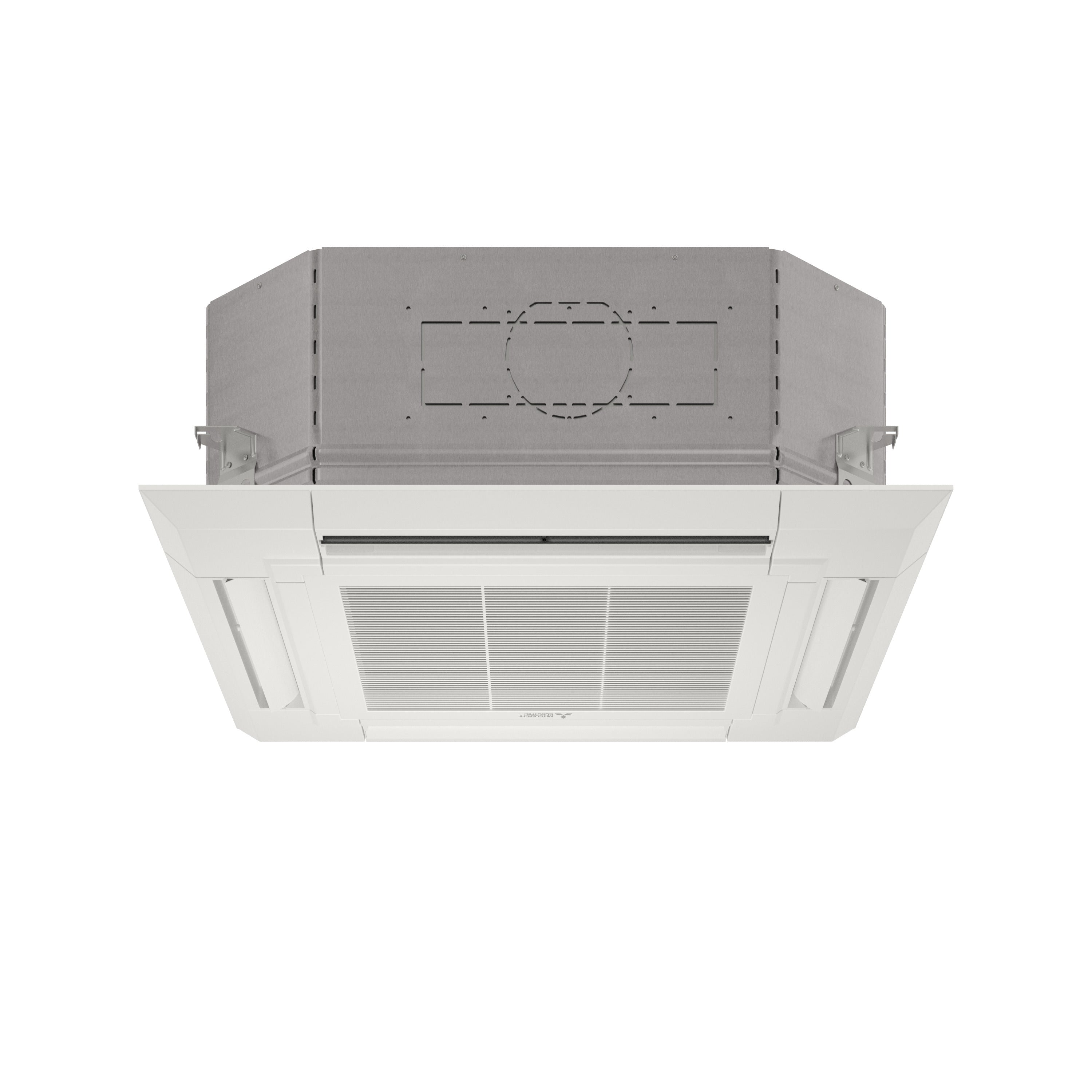

• MITSUBISHI ELECTRIC PLA-AE12NL - 12,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PLA-AE24NL - Ceiling Cassette Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Ceiling Cassette Grille (Qty x2)

Key Details

• Weight of Bundle: 280 lb (Mitsubishi 161 lb + Mitsubishi 46 lb + Mitsubishi 46 lb + Mitsubishi 5 lb + Mitsubishi 22 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 12,000 BTU (PLA-AE12NL), 24,000 BTU (PLA-AE24NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 13,500 BTU (PLA-AE12NL), 29,000 BTU (PLA-AE24NL)
• Refrigerant Type: R454B
• SEER2 Rating: 23 (MXZ-SM36NL), Up to 21.9 (PLA-AE12NL), 24.7 (PLA-AE24NL)
• Voltage: 208/230 V
• Dimensions: MXZ-SM36NL (41-11/32 W x 13 D x 52-11/16 H), PLA-AE12NL (33-1/16 W x 33-1/16 D x 11-3/4 H), PLA-AE24NL (33-1/16 W x 33-1/16 D x 10-3/16 H)
• Weight: PLA-AE12NL (46 lbs), PLA-AE24NL (57 lbs), PAC-LMA30BC (15 lbs)

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system in residential or commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, allowing for versatile installation options. The PLA-AE12NL and PLA-AE24NL air handlers are designed for seamless integration, while the PAC-LMA30BC branch box ensures efficient refrigerant distribution. The included PLP-41EAEU grilles optimize airflow, making this bundle a complete solution for effective climate control.
