Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this bundle allows for customized climate control across multiple zones, making it ideal for larger areas. The included SLZ-AF09NL and SLZ-AF15NL ceiling cassette indoor units offer versatile installation options and adjustable airflow, ensuring optimal comfort. Additionally, the PAC-LMA30BC branch box facilitates seamless connections between indoor and outdoor units, while the SLP-18FAU grilles enhance air distribution. Together, these components create a powerful and flexible HVAC system tailored to your needs.

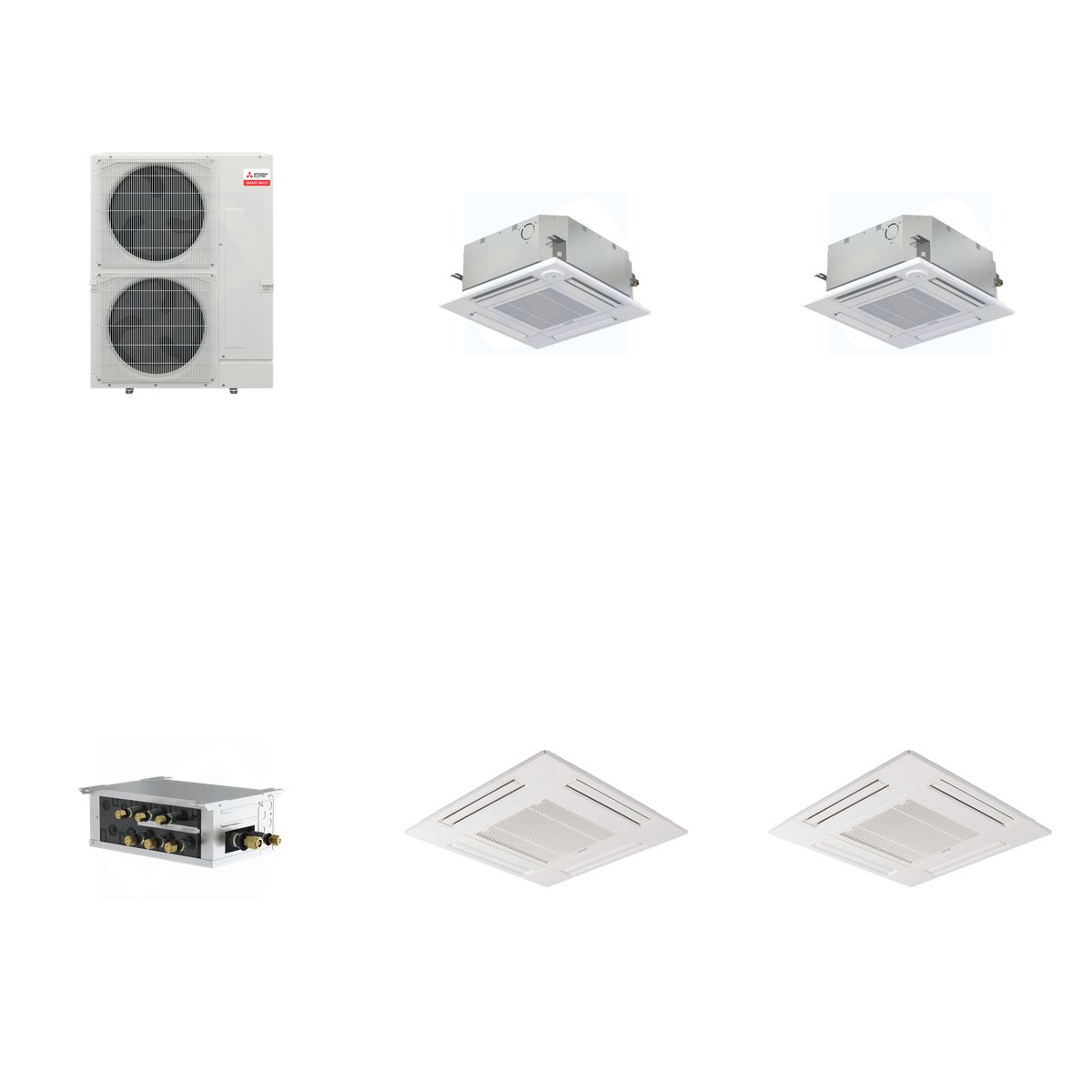

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 246 lb (Mitsubishi 161 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 5 lb + Mitsubishi 14 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• SEER2: 23 (MXZ-SM36NL)
• Indoor Unit Cooling BTU: 9,000 (SLZ-AF09NL), 15,000 (SLZ-AF15NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SLZ-AF09NL/SLZ-AF15NL): 22 7/16 W x 22 7/16 D x 8 3/16 H
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is ideal for multi-zone HVAC installations, providing both heating and cooling capabilities. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SLZ-AF09NL and SLZ-AF15NL units fit seamlessly into standard ceiling grids. The PAC-LMA30BC branch box allows for efficient refrigerant distribution among multiple indoor units, making it suitable for diverse applications.
