Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+12K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with the SLZ-AF09NL and SLZ-AF12NL ceiling cassette units, this bundle offers versatile installation options and individual room comfort. The PAC-LMA30BC branch box ensures optimal refrigerant distribution, while the SLP-18FAU grilles complete the setup for seamless air distribution. Together, these components create a highly efficient and adaptable HVAC solution for both residential and commercial spaces.

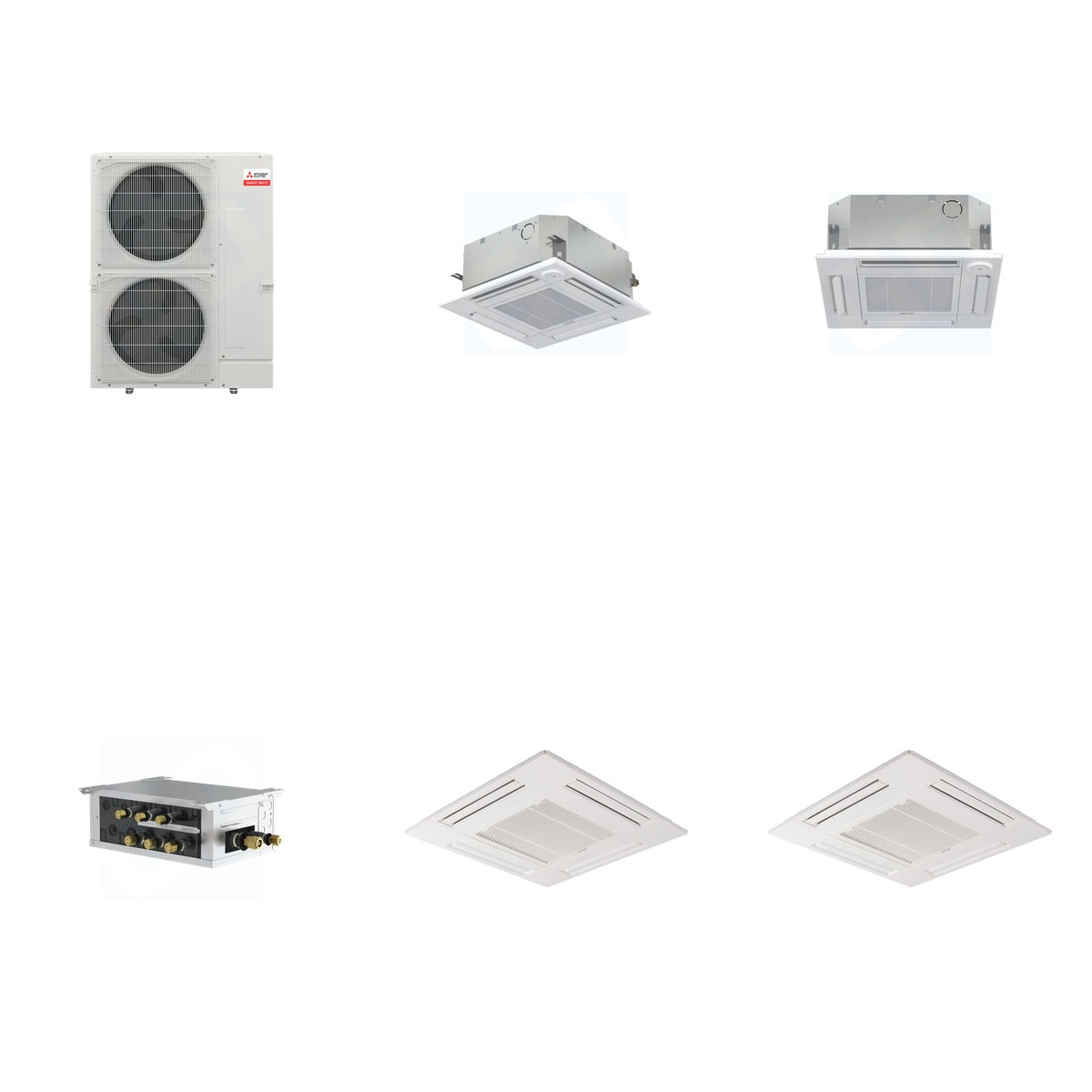

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 246 lb (Mitsubishi 161 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 5 lb + Mitsubishi 14 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Refrigerant Type: R454B
• SEER2: 23 (MXZ-SM36NL)
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Indoor Unit Dimensions: 22-7/16 x 22-7/16 x 8-4/16 inches (SLZ-AF09NL & SLZ-AF12NL)
• Branch Box Dimensions: 17-3/4 x 11-1/16 x 6-3/4 inches (PAC-LMA30BC)

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SLZ-AF09NL and SLZ-AF12NL air handlers can be seamlessly integrated for optimal performance. The included branch box allows for flexible configurations, making it ideal for various installation types.
