Mitsubishi Multi-Zone 36000 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL multi-zone heat pump condenser, this package allows for customized climate control across multiple zones. The included SLZ-AF12NL and SLZ-AF15NL air handlers offer versatile installation options with ceiling-mounted designs, perfect for various ceiling types. To enhance the system's efficiency, the PAC-LMA30BC branch box ensures optimal refrigerant distribution, while the SLP-18FAU grilles complete the installation for a seamless appearance. Together, these components create a robust and flexible HVAC solution that meets diverse climate control needs.

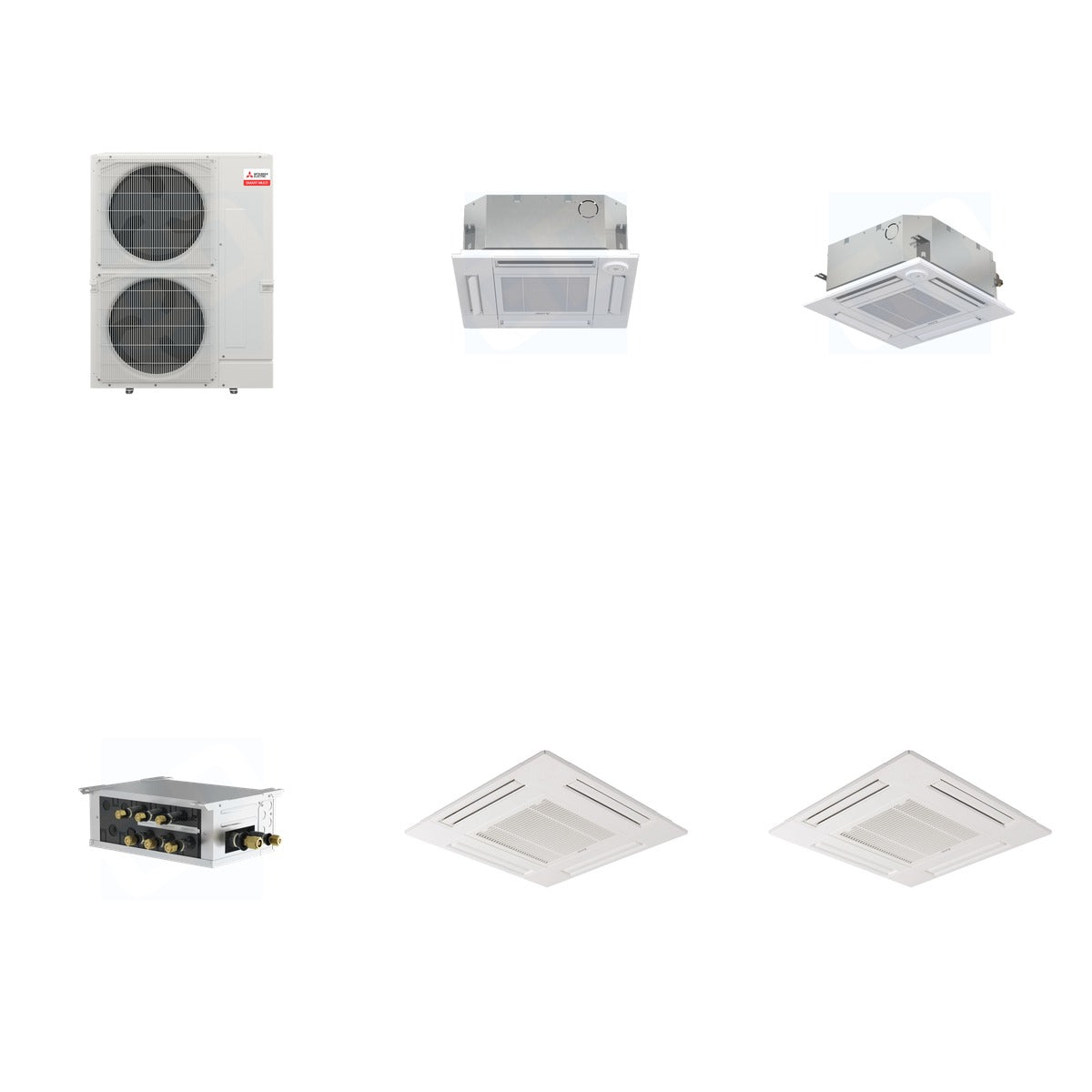

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 246 lb (Mitsubishi 161 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 5 lb + Mitsubishi 14 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 12,000 BTU (SLZ-AF12NL), 15,000 BTU (SLZ-AF15NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 15,000 BTU (SLZ-AF12NL), 18,000 BTU (SLZ-AF15NL)
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SLZ-AF12NL): 22-7/16 x 22-7/16 x 8-4/16 inches
• Dimensions (SLZ-AF15NL): 22-7/16 x 22-7/16 x 8-3/16 inches
• Branch Box Dimensions: 17-3/4 x 11-1/16 x 6-3/4 inches
• Sound Level: Minimum 27 dB (SLZ-AF15NL)
• Airflow: Up to 405 CFM (SLZ-AF15NL)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The components are compatible with Mitsubishi Electric's M-, P-Series, and CITY MULTI indoor units, making them ideal for both residential and commercial installations where individual room control is desired.
