Mitsubishi Multi-Zone 36000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 18K+24K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for residential and light commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system can serve up to 11 zones without a branch box, making it perfect for customized climate control across various spaces. The included SVZ-AP18NL and SVZ-AP24NL ducted air handlers offer versatile installation options and are equipped with advanced features for optimal performance. The PAC-LMA30BC branch box ensures balanced refrigerant distribution, enhancing system efficiency. Together, these components create a robust multi-zone setup that meets diverse heating and cooling needs.

What's Included

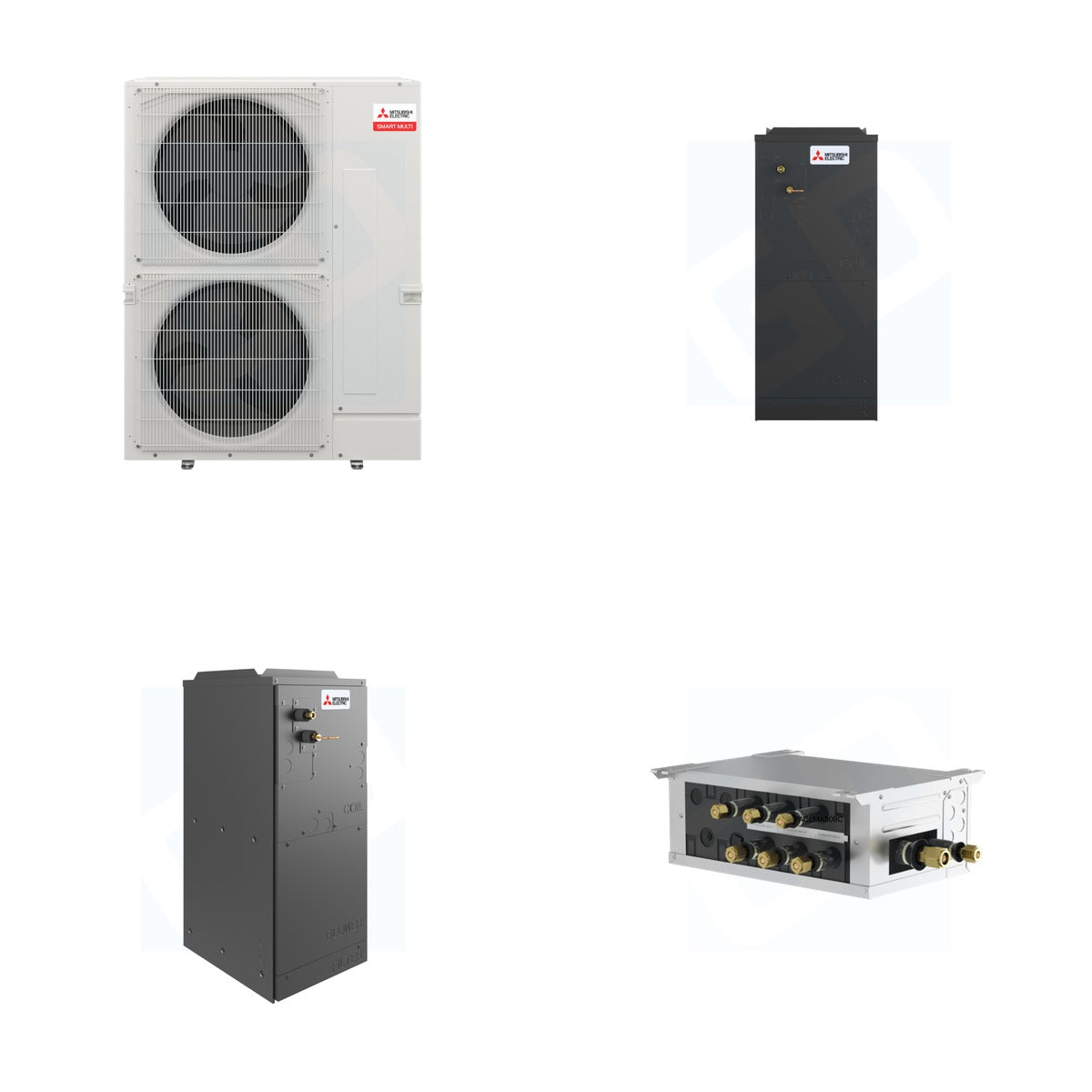

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 374 lb (Mitsubishi 161 lb + Mitsubishi 104 lb + Mitsubishi 104 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, SEER2: 23, EER2: 14.10, HSPF2: 11
• SVZ-AP18NL: 18,000 BTU, R454B refrigerant, SEER2: 16.2, EER2: 12, HSPF2: 9.8
• SVZ-AP24NL: 24,000 BTU, R454B refrigerant, SEER2: 16.2, EER2: 12, HSPF2: 9.8
• PAC-LMA30BC: Connects 3 indoor units, Single-phase, 208/230V, 60Hz

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility for both residential and light commercial use. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SVZ-AP18NL and SVZ-AP24NL air handlers can be installed in various orientations to suit your space. The PAC-LMA30BC branch box facilitates the connection of multiple indoor units, ensuring efficient refrigerant distribution.
