Mitsubishi Multi-Zone 36000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+24K

Description

This comprehensive HVAC bundle features high-performance components from Mitsubishi Electric, designed to provide efficient heating and cooling for both residential and commercial applications. The MXZ-SM36NL multi-zone heat pump condenser serves as the backbone of the system, allowing for individual climate control across multiple zones. Complementing this are the SVZ-AP12NL and SVZ-AP24NL ducted air handlers, which ensure optimal air distribution and temperature regulation. The PAC-LMA30BC branch box facilitates seamless connectivity between the outdoor unit and indoor handlers, ensuring balanced refrigerant flow and enhanced performance. Together, these components create a versatile and efficient climate control solution tailored to your specific needs.

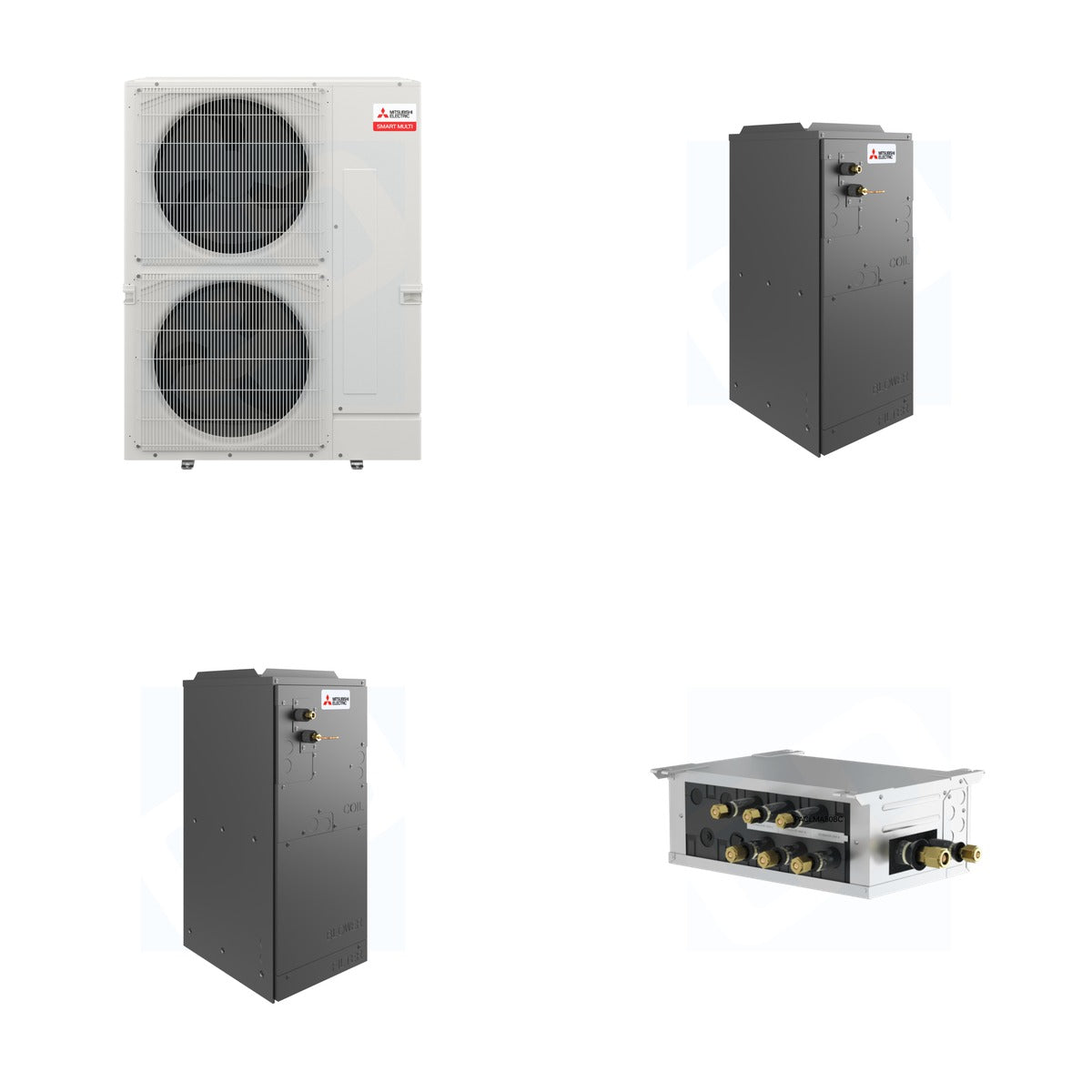

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

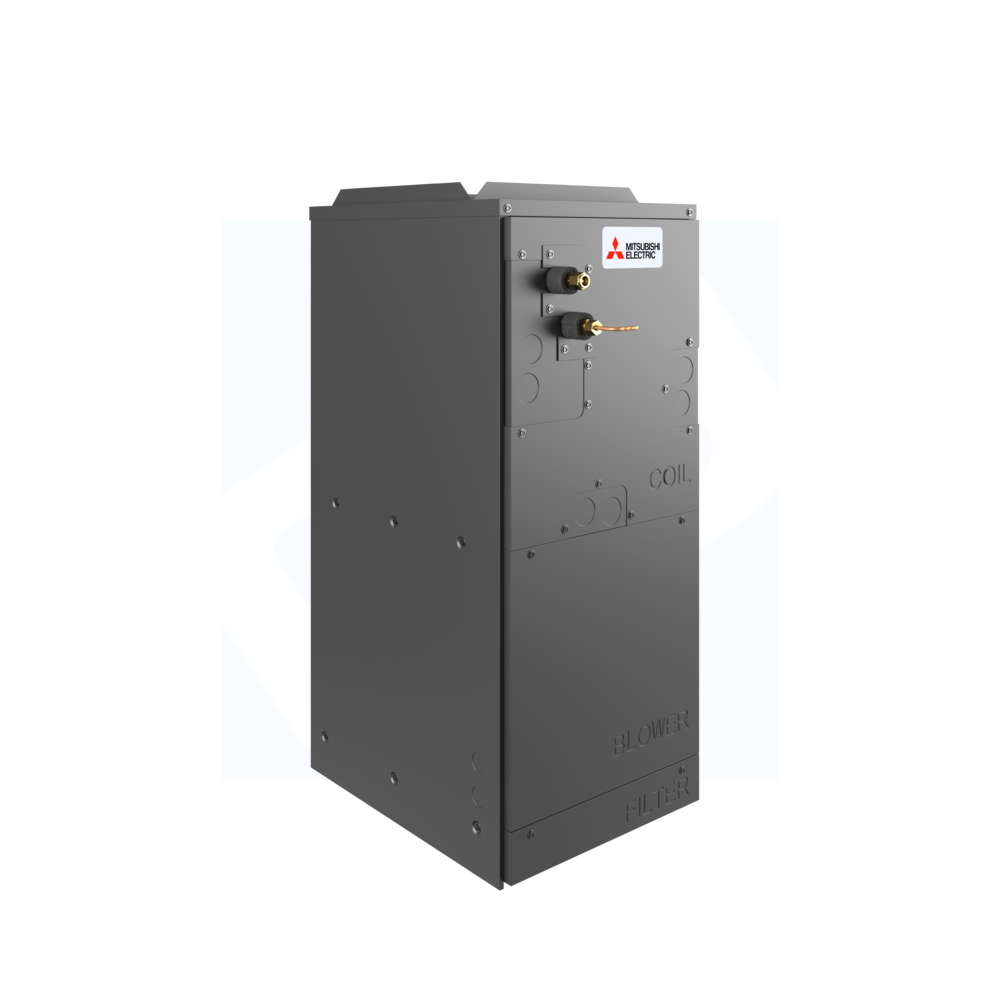

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 24k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 367 lb (Mitsubishi 161 lb + Mitsubishi 97 lb + Mitsubishi 104 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 12,000 BTU (SVZ-AP12NL), 24,000 BTU (SVZ-AP24NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 15,000 BTU (SVZ-AP12NL), 23,000 BTU (SVZ-AP24NL)
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Dimensions: MXZ-SM36NL (41-11/32 W x 13 D x 52-11/16 H), SVZ-AP12NL (17 x 21-5/8 x 39-13/16 inches), SVZ-AP24NL (17 x 21-5/8 x 39-13/16 inches), PAC-LMA30BC (17-3/4 x 11-1/16 x 6-3/4 inches)
• Noise Level: 36-45 dB(A) (SVZ-AP12NL & SVZ-AP24NL)
• Number of Zones: Up to 4 with branch box (MXZ-SM36NL), 1 (SVZ-AP12NL & SVZ-AP24NL)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing customized comfort across various spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SVZ-AP12NL and SVZ-AP24NL air handlers are designed for flexible installation in residential or commercial environments. The PAC-LMA30BC branch box enhances system efficiency by connecting multiple indoor units, ensuring optimal refrigerant distribution.
