Mitsubishi Multi-Zone 36000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+18K

Description

This comprehensive HVAC bundle features high-efficiency components from Mitsubishi Electric, designed to provide optimal heating and cooling solutions for both residential and commercial applications. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control across various zones. Paired with the SVZ-AP12NL and SVZ-AP18NL Ducted Air Handlers, this bundle ensures effective air circulation and temperature management. The PAC-LMA30BC Branch Box facilitates seamless connections between the outdoor condenser and indoor units, enhancing refrigerant distribution and system performance.

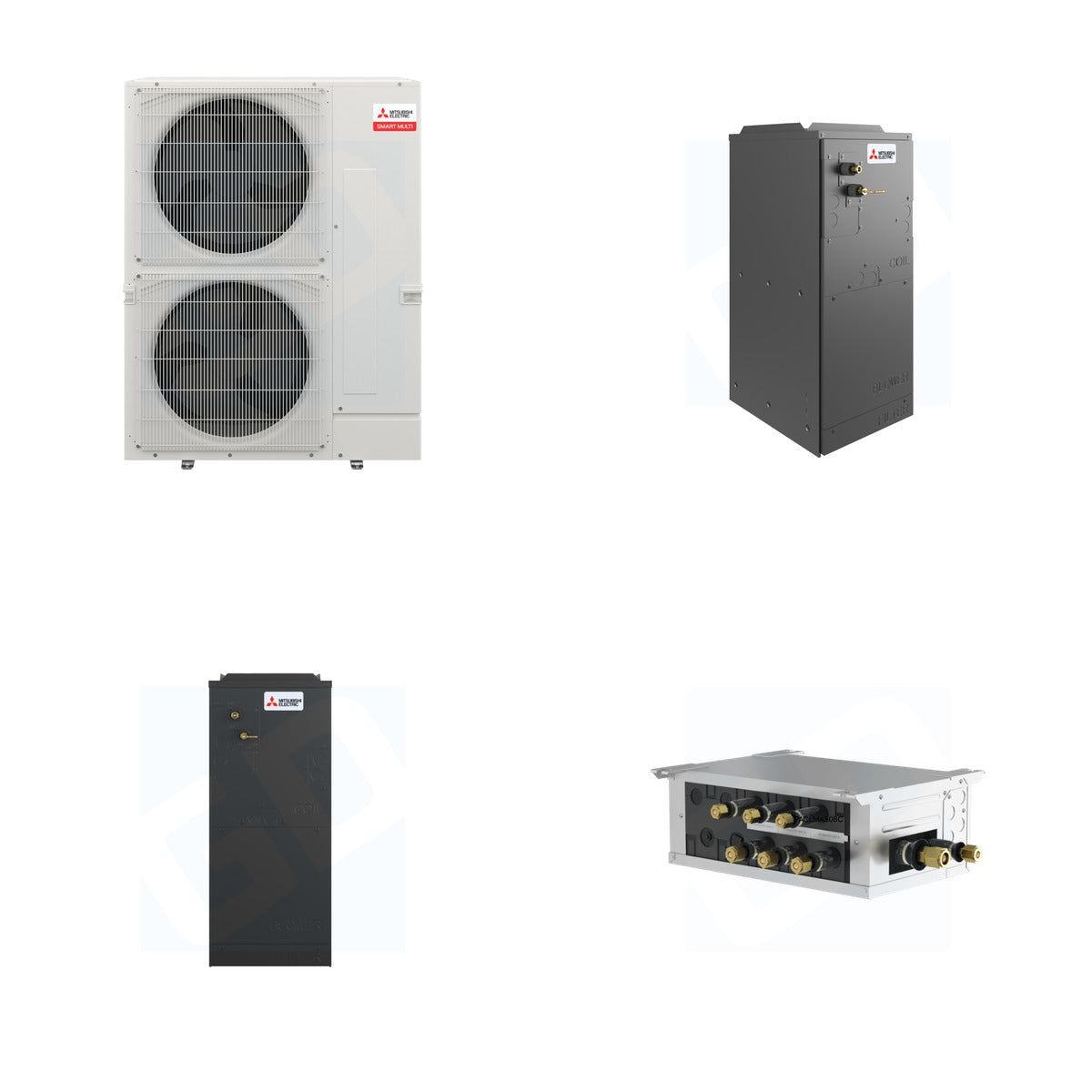

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

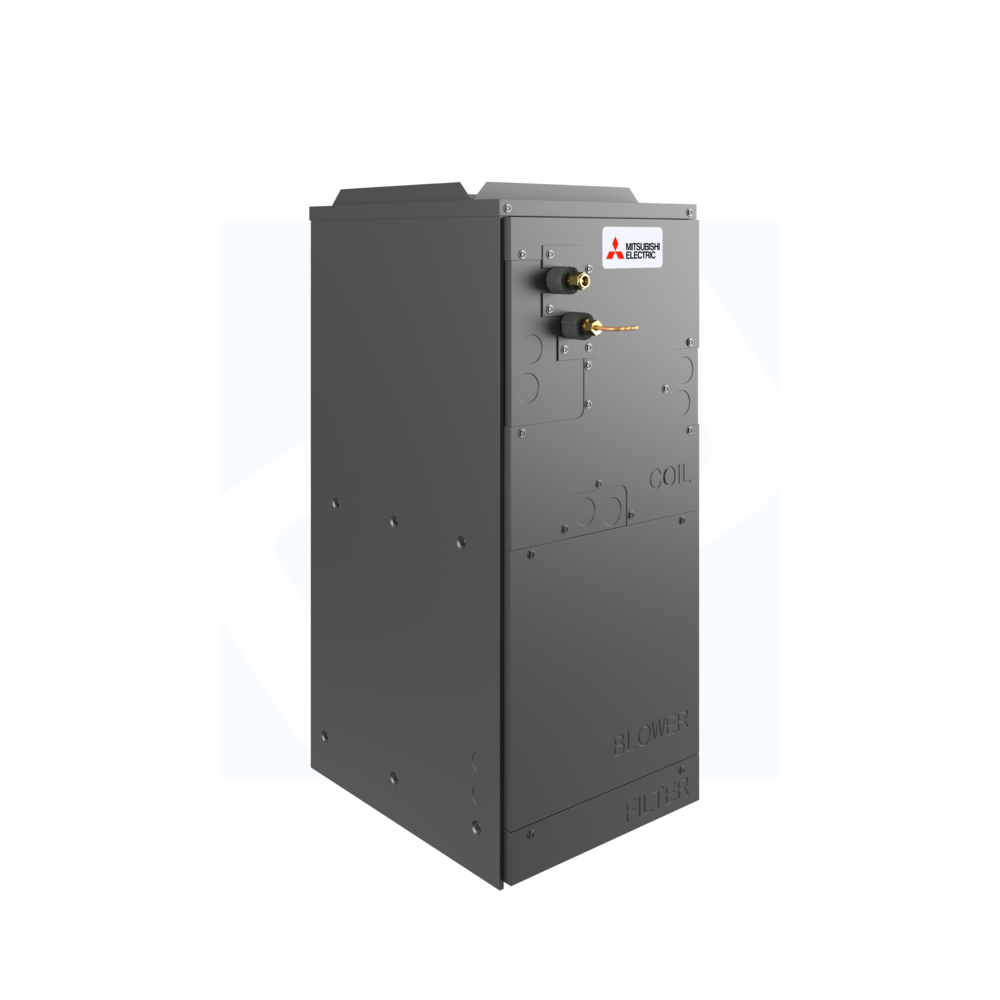

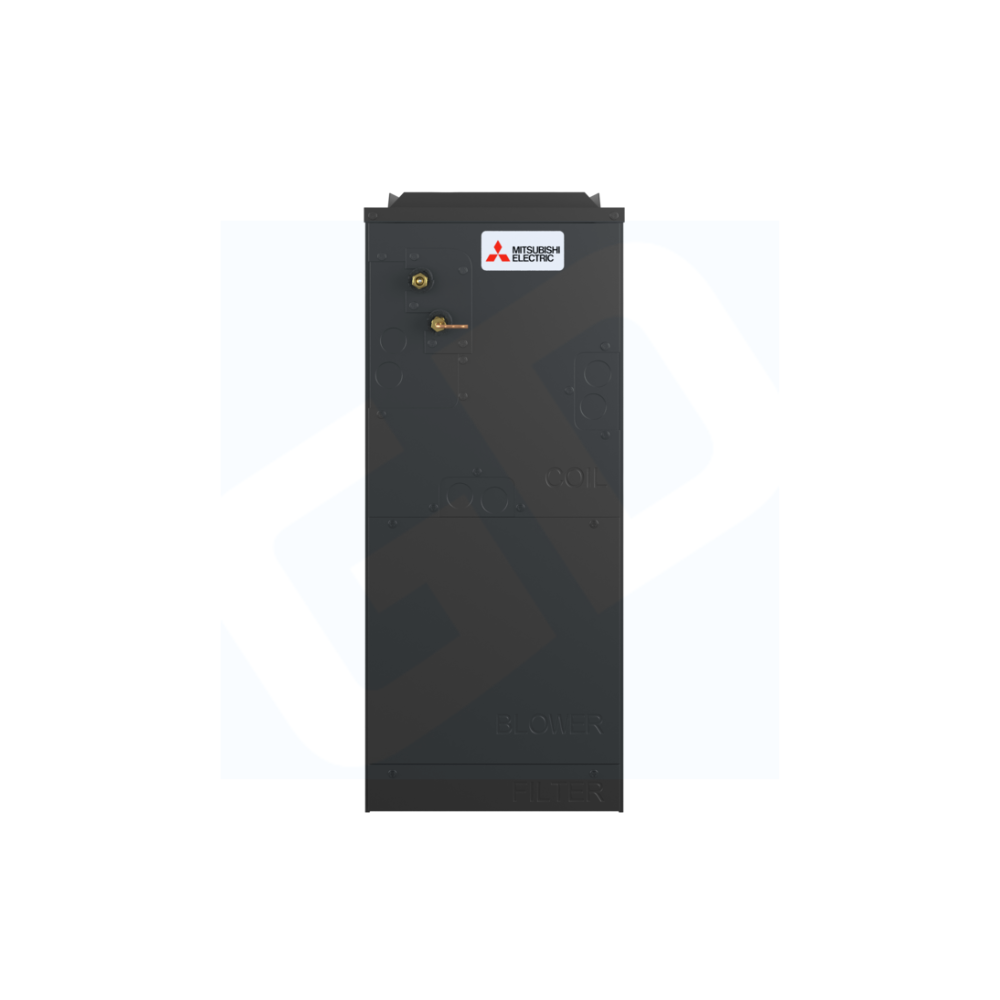

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP18NL - Mitsubishi Electric SVZ-AP18NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 18k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 367 lb (Mitsubishi 161 lb + Mitsubishi 97 lb + Mitsubishi 104 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, SEER2: 23, EER2: 14.10, Heating Capacity: 41,000 BTU
• SVZ-AP12NL: 12,000 BTU, Cooling Capacity: 11,400 BTU/hr, Heating Capacity: 15,000 BTU/hr, Voltage: 208/230 V
• SVZ-AP18NL: 18,000 BTU, Cooling Capacity: 18,000 BTU, Heating Capacity: 23,800 BTU, Voltage: 208/230 V
• PAC-LMA30BC: Supports 3 indoor units, R454B refrigerant, Dimensions: 17.75 x 11.06 x 6.75 inches

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications, providing flexibility in installation and operation. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SVZ-AP12NL and SVZ-AP18NL air handlers are designed for versatile installation in residential and light commercial spaces. The PAC-LMA30BC branch box ensures efficient refrigerant flow between the units, making this bundle a perfect choice for comprehensive climate control solutions.
