Mitsubishi Multi-Zone 36000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+12K

Description

This comprehensive HVAC bundle includes essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting up to 11 indoor units, making it perfect for larger spaces. Complementing this unit are two SVZ-AP12NL Ducted Air Handler Indoor Units, each providing 12,000 BTU for precise temperature control in individual zones. The PAC-LMA30BC 3-Port Branch Box ensures optimal refrigerant distribution, connecting the indoor units seamlessly to the condenser. Together, these products deliver customized climate control, energy efficiency, and versatile installation options for both residential and commercial applications.

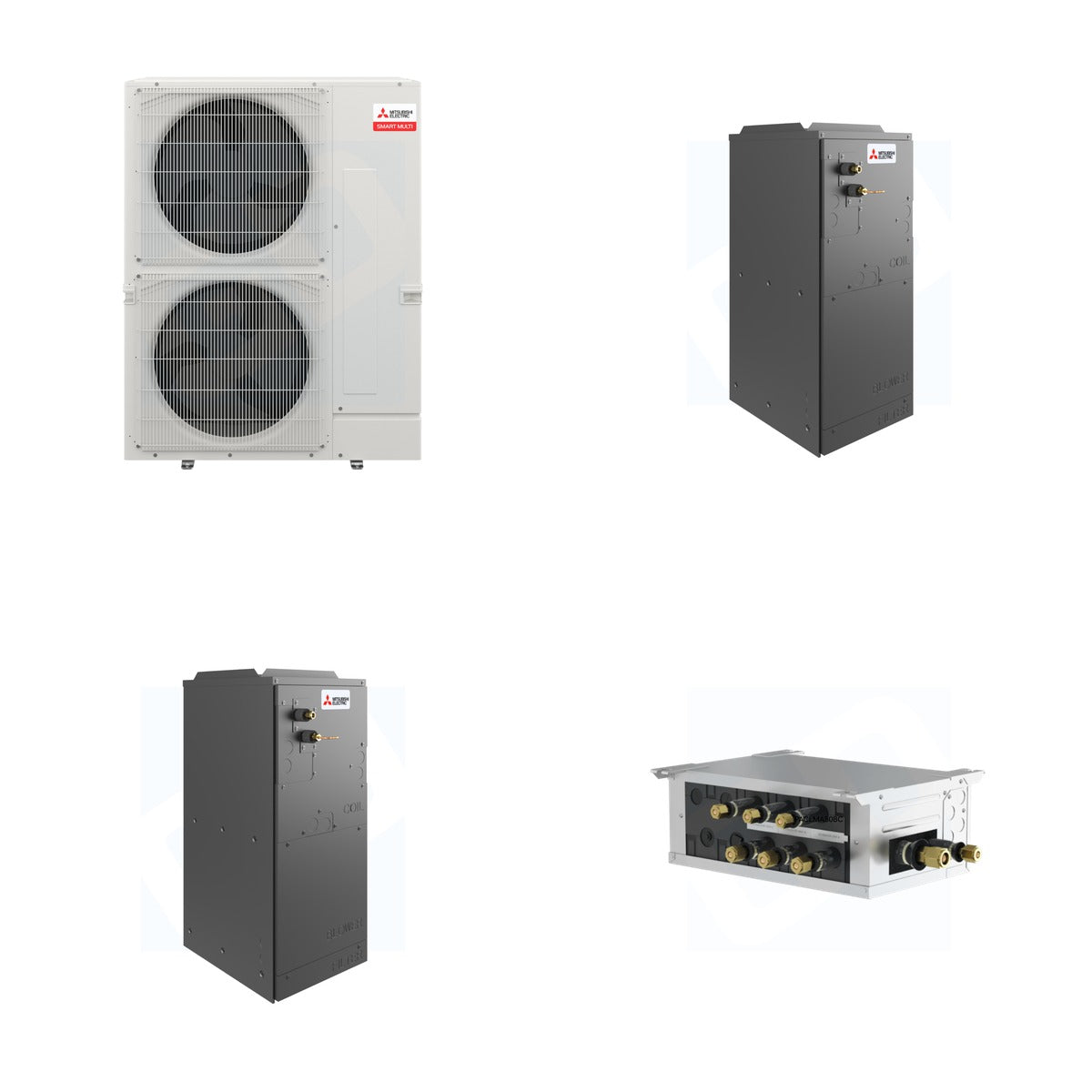

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

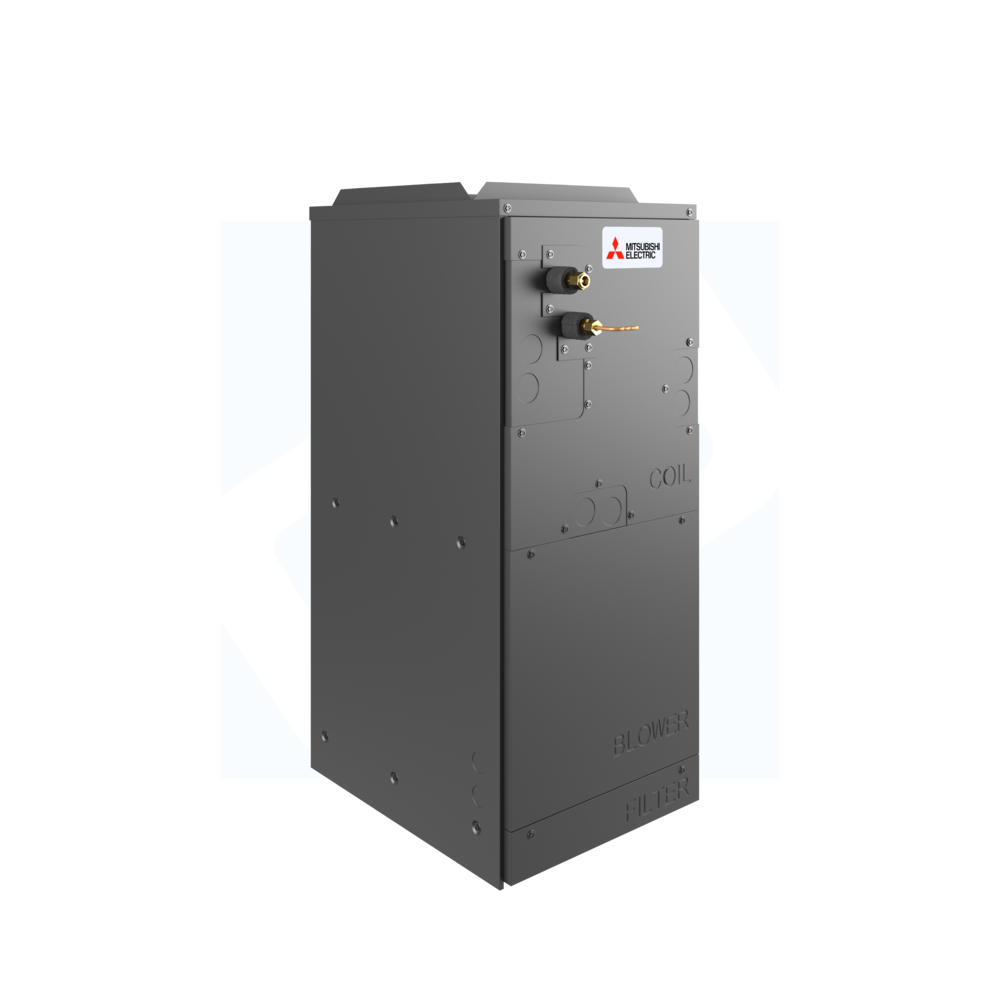

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 360 lb (Mitsubishi 161 lb + Mitsubishi 194 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Capacity: 12,000 BTU (SVZ-AP12NL)
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H inches
• Dimensions (SVZ-AP12NL): 17 x 21-5/8 x 39-13/16 inches
• Dimensions (PAC-LMA30BC): 17-3/4 x 11-1/16 x 6-3/4 inches
• Noise Level: 36-45 dB(A) (SVZ-AP12NL)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it ideal for residential and commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SVZ-AP12NL air handlers can be installed in various orientations. The PAC-LMA30BC branch box optimizes refrigerant flow to ensure balanced temperature control across connected indoor units.
