Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+9K+9K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system allows for customized climate control across multiple zones, accommodating up to 11 indoor units without a branch box. The included SEZ-AD09NL Concealed Duct AHU units are perfect for discreet installations, ensuring optimal comfort in various room configurations. Additionally, the PAC-LMA30BC Branch Box enhances refrigerant distribution, making it an essential component for maximizing system performance. Together, these products create a versatile and effective HVAC solution tailored to meet diverse needs.

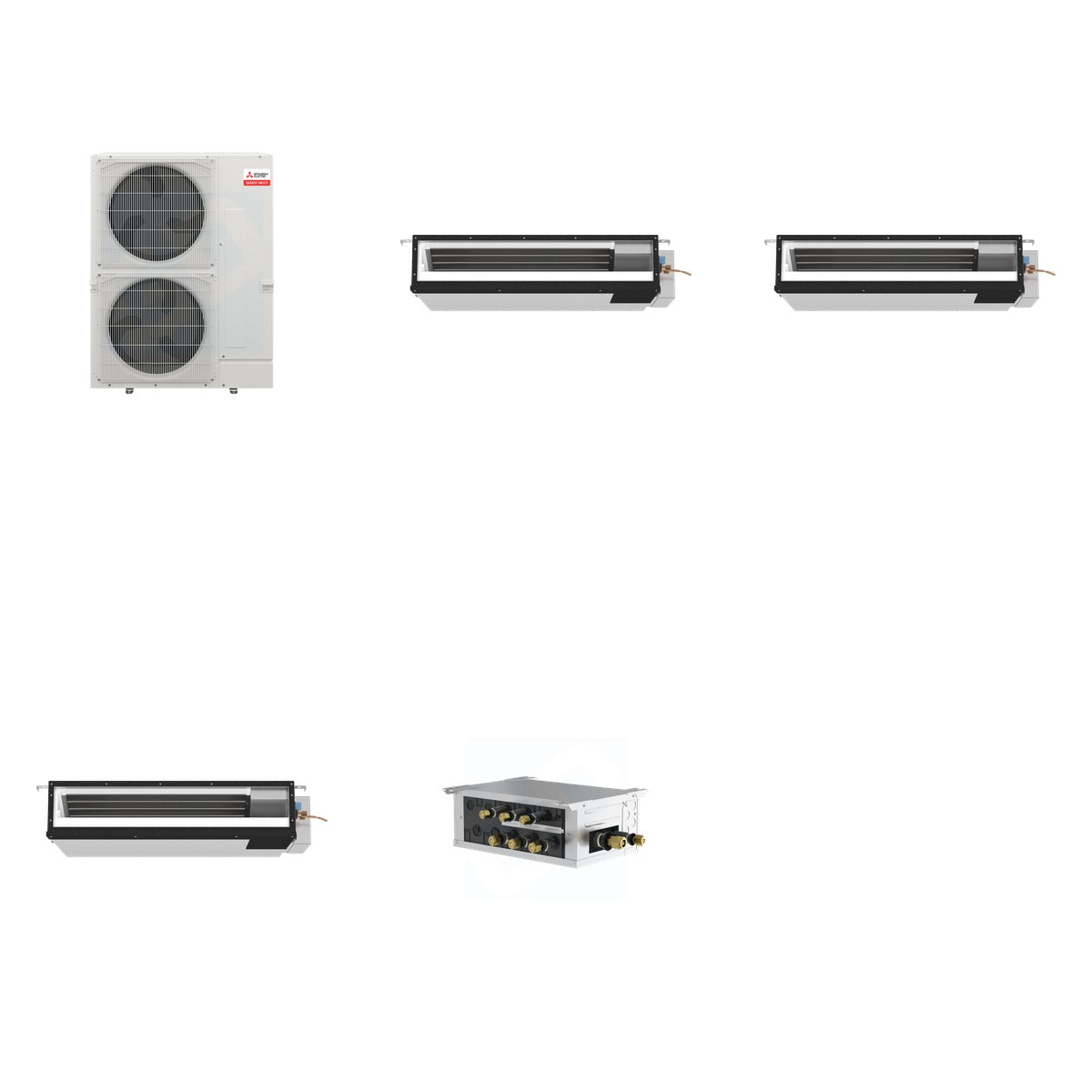

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)

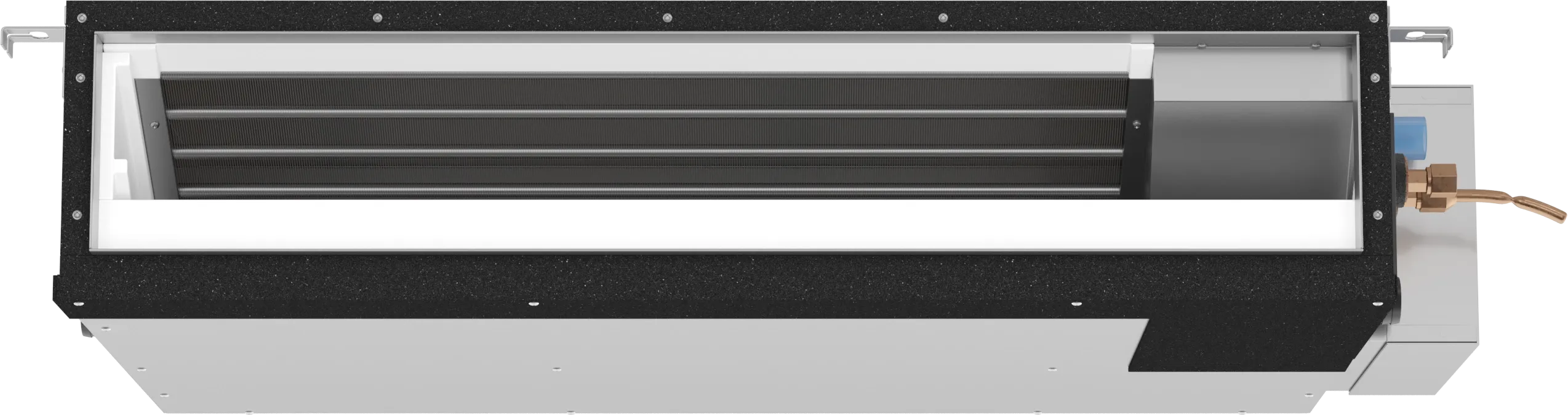

• MITSUBISHI ELECTRIC SEZ-AD09NL - 9k BTU Concealed Duct AHU (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 286 lb (Mitsubishi 161 lb + Mitsubishi 120 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Size: 9,000 BTU (SEZ-AD09NL)
• SEER2 Rating: 23 (MXZ-SM36NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SEZ-AD09NL): 31-1/8 W x 27-9/16 D x 7-7/8 H
• Dimensions (PAC-LMA30BC): 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications, providing efficient temperature control across various spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD09NL ducted units are designed for seamless integration in short duct runs. The PAC-LMA30BC branch box ensures optimal refrigerant flow for enhanced system performance.
