Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+15K+15K

Description

This comprehensive HVAC bundle features essential components designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting up to 11 indoor units for customized climate control across multiple zones. Paired with the SEZ-AD09NL and SEZ-AD15NL concealed duct indoor units, this bundle ensures discreet installation while delivering optimal performance. The included PAC-LMA30BC branch box facilitates seamless connections between the outdoor and indoor units, ensuring balanced refrigerant flow and efficient operation. Together, these components create a versatile and effective heating and cooling system tailored to your needs.

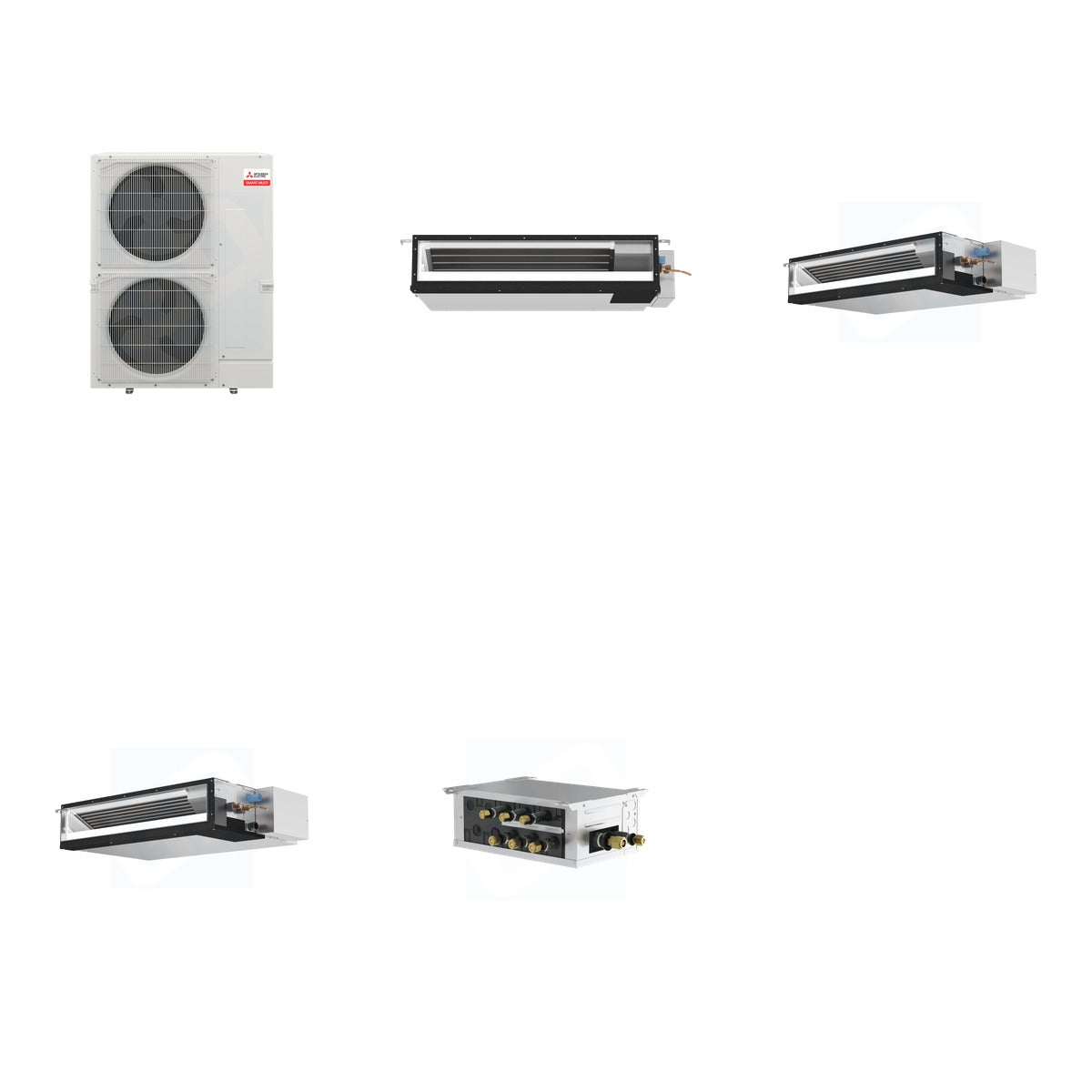

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

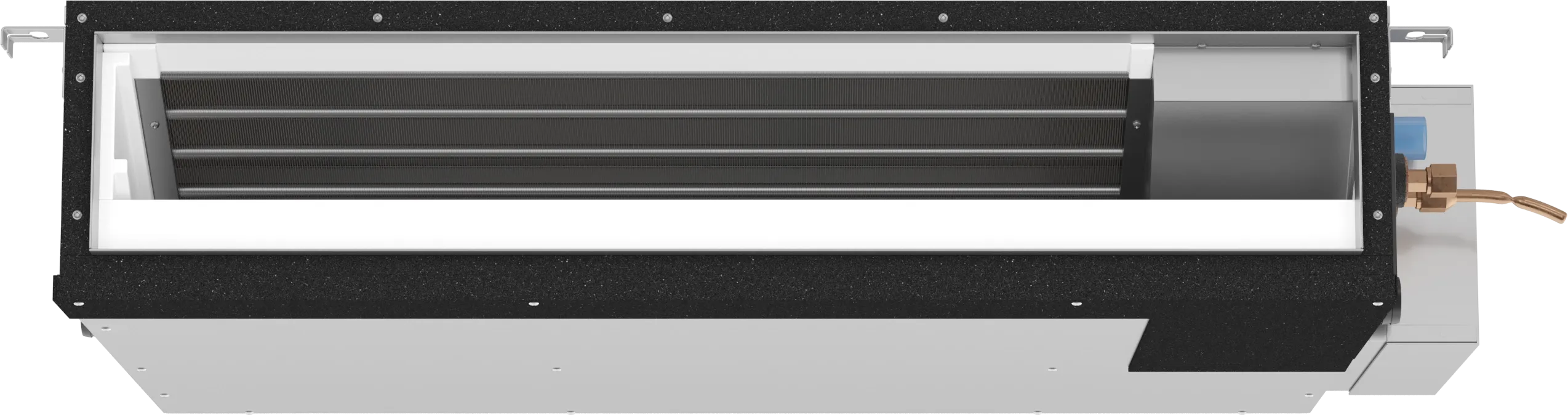

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x1)

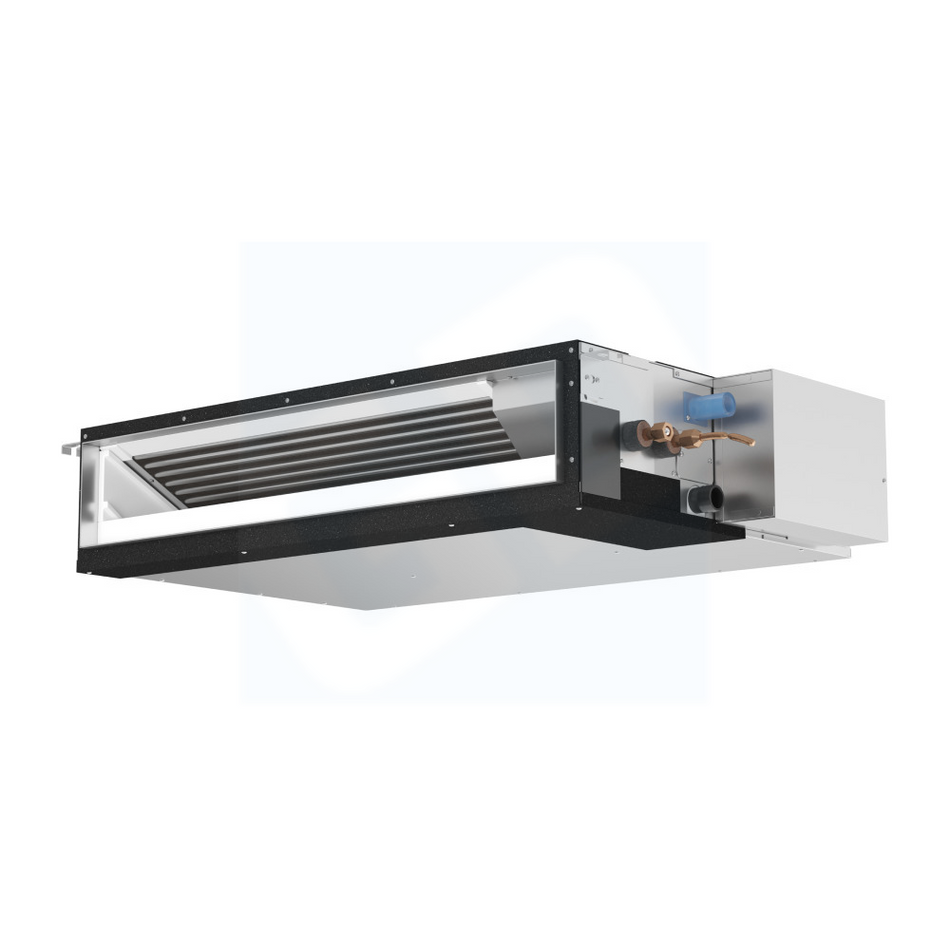

• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 442 lb (Mitsubishi 161 lb + Mitsubishi 40 lb + Mitsubishi 236 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, SEER2: 23, Heating capacity: 41,000 BTU
• SEZ-AD09NL: 9,000 BTU, R454B refrigerant, Voltage: 208/230V, Dimensions: 31.125" W x 27.5625" D x 7.875" H
• SEZ-AD15NL: 15,000 BTU, R454B refrigerant, Voltage: 208/230V
• PAC-LMA30BC: Connects up to 3 indoor units, Dimensions: 17.75" W x 11.0625" D x 6.75" H

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, perfect for homes and offices requiring efficient temperature control. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD09NL and SEZ-AD15NL units are ideal for discreet installation in various duct configurations. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among the connected indoor units.
