Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+18K

Description

This comprehensive HVAC bundle features high-performance Mitsubishi Electric products designed to provide efficient heating and cooling solutions for residential and commercial spaces. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with three concealed duct air handling units (AHUs) - the SEZ-AD09NL, SEZ-AD12NL, and SEZ-AD18NL - this bundle ensures optimal comfort across various zones. The included PAC-LMA30BC branch box facilitates seamless connectivity between the outdoor condenser and indoor units, enhancing refrigerant distribution and temperature management. Together, these components create a versatile and efficient HVAC system tailored to meet diverse climate control needs.

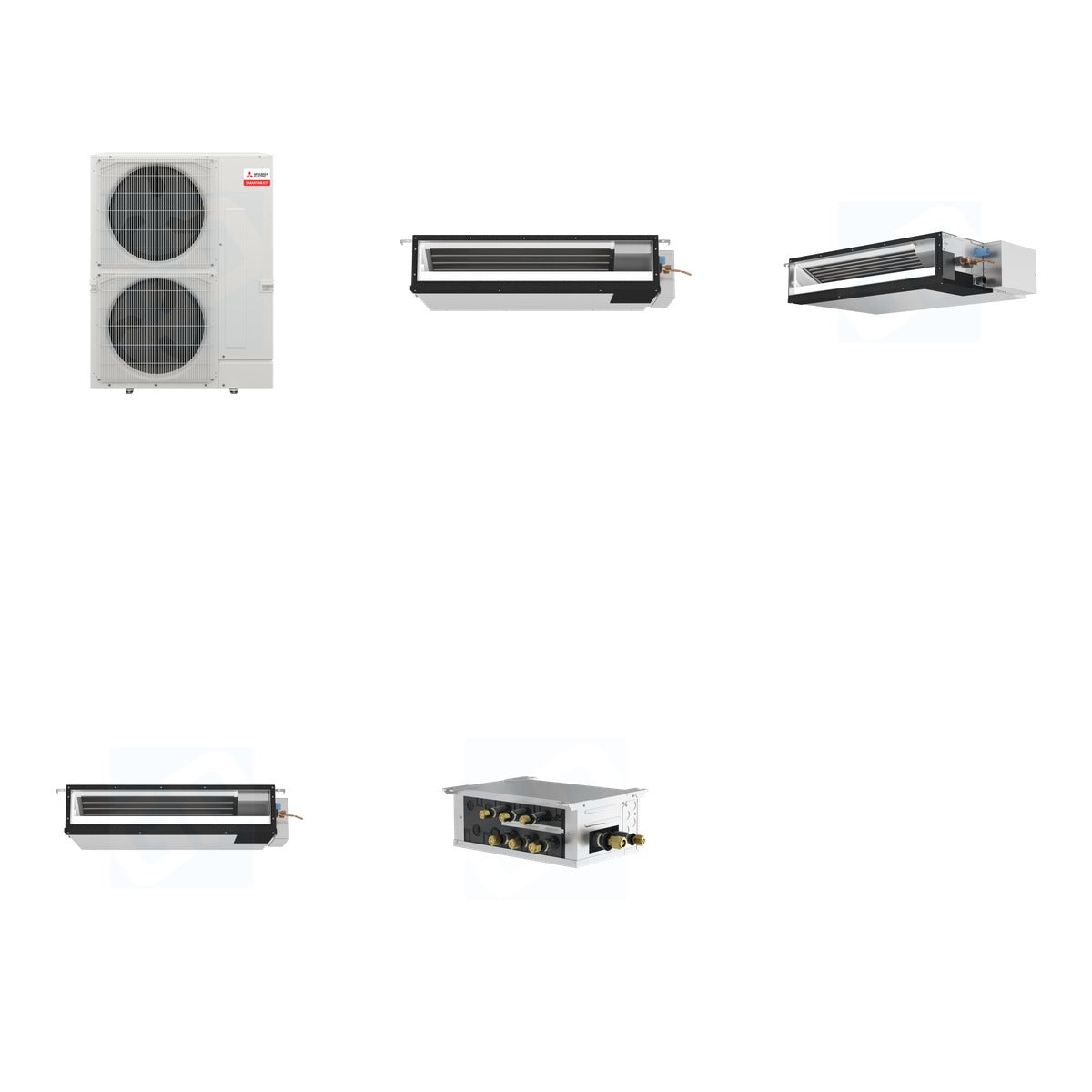

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

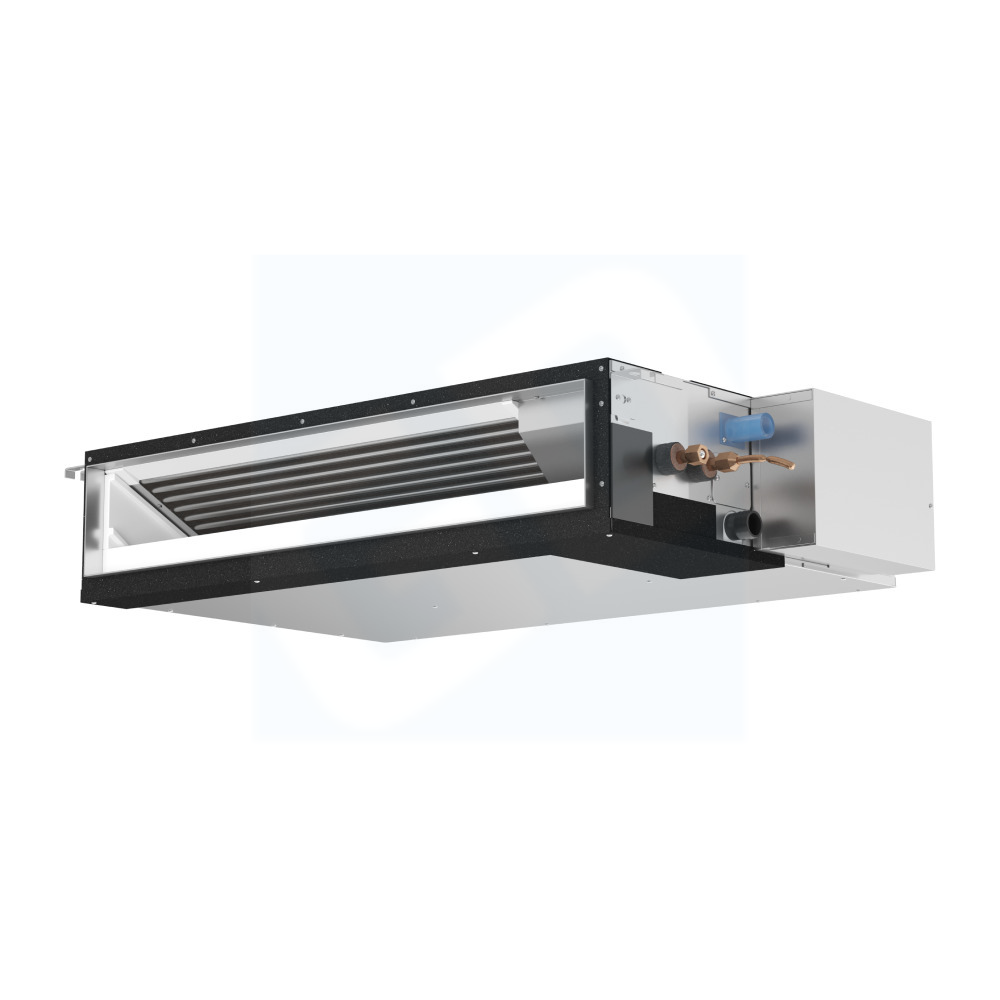

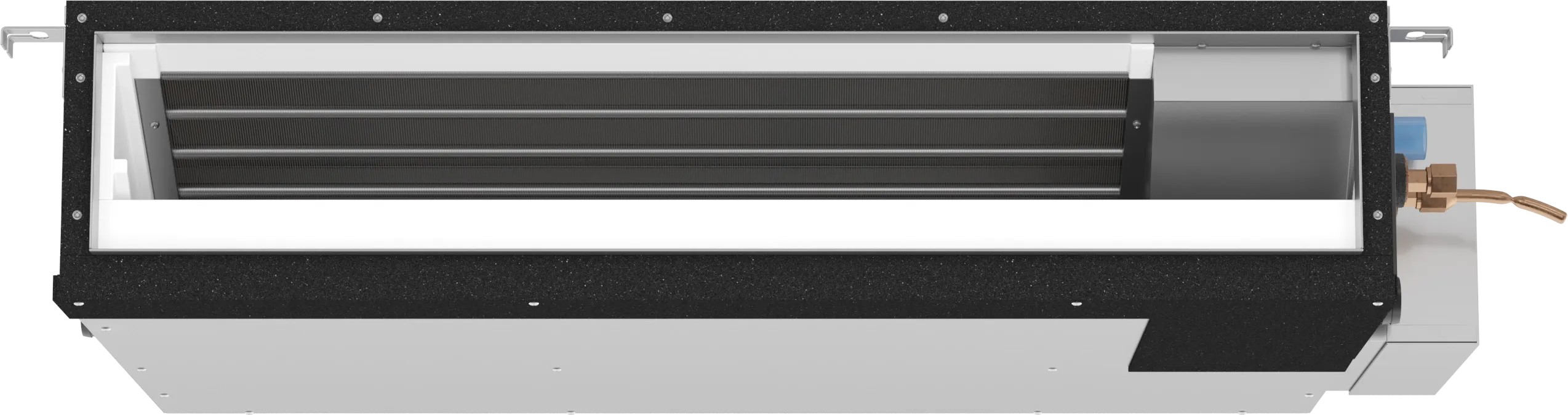

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 313 lb (Mitsubishi 161 lb + Mitsubishi 40 lb + Mitsubishi 49 lb + Mitsubishi 58 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, 4 zones (with branch box), SEER2: 23, EER2: 14.10
• SEZ-AD09NL: 9,000 BTU, 208/230V, 30 dB minimum sound level, 317 CFM max airflow
• SEZ-AD12NL: 12,000 BTU, 208/230V, 23 dB minimum sound level, 388 CFM max airflow
• SEZ-AD18NL: 18,000 BTU, 208/230V, 30 dB minimum sound level, compact design
• PAC-LMA30BC: Connects up to 3 indoor units, supports R454B refrigerant, dimensions: 17.75 x 11.06 x 6.75 inches

Use & Compatibility

This bundle is ideal for both residential and commercial applications, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the concealed duct AHUs are suitable for short duct runs, allowing for discreet installation in various settings. The included branch box enhances system flexibility, making it easy to expand capacity as needed.
