Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-efficiency Mitsubishi Electric products designed to deliver optimal climate control for both residential and commercial spaces. The MXZ-SM36NL multi-zone heat pump condenser serves as the powerhouse, enabling customized heating and cooling across multiple zones. Paired with three concealed duct air handling units (SEZ-AD09NL, SEZ-AD12NL, and SEZ-AD15NL), this bundle ensures discreet installation and effective air distribution. The PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and indoor units, ensuring balanced refrigerant flow and enhanced system performance.

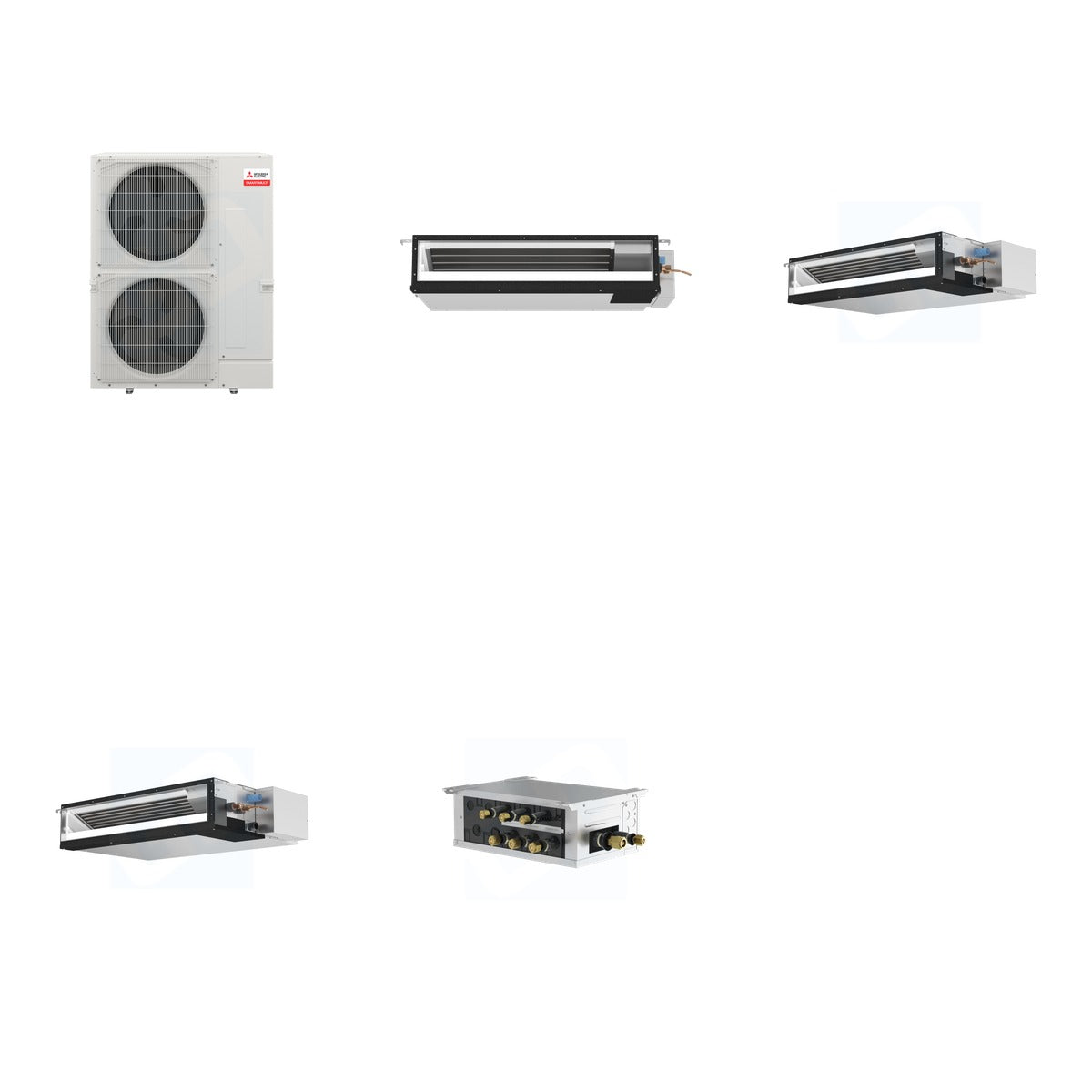

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

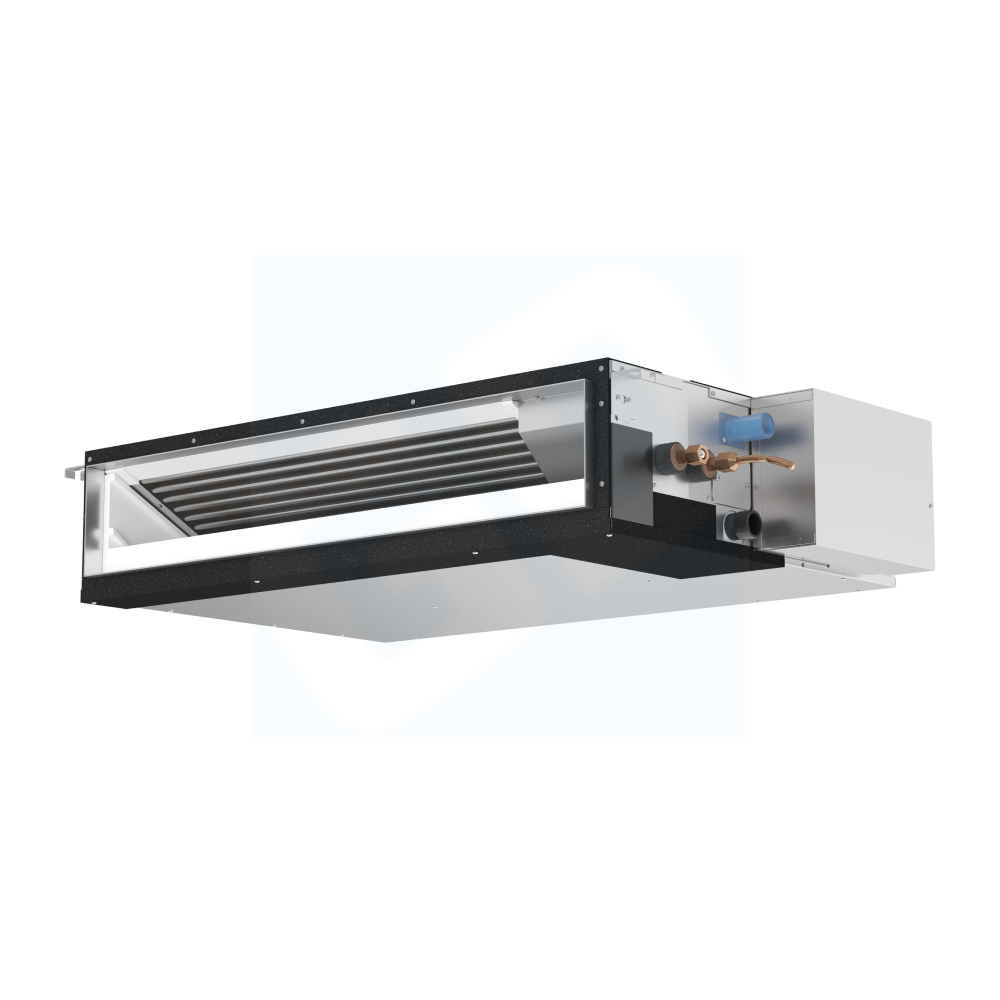

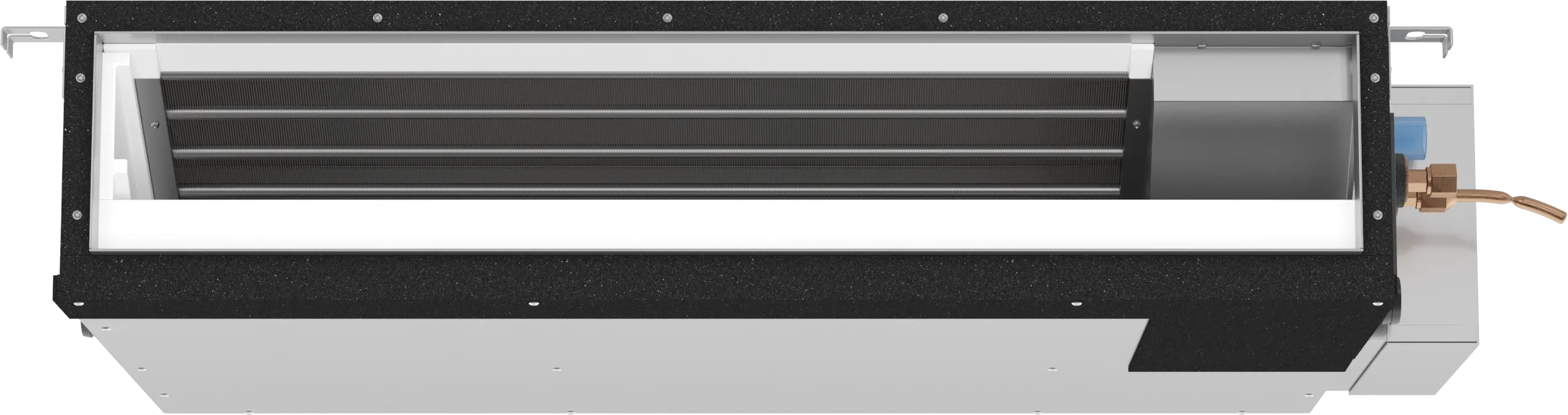

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 373 lb (Mitsubishi 161 lb + Mitsubishi 40 lb + Mitsubishi 49 lb + Mitsubishi 118 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, 4 zones (with branch box), SEER2: 23
• SEZ-AD09NL: 9,000 BTU, R454B refrigerant, 208/230V, 30 dB minimum sound level
• SEZ-AD12NL: 12,000 BTU, R454B refrigerant, 208/230V, 23 dB minimum sound level
• SEZ-AD15NL: 15,000 BTU, R454B refrigerant, concealed duct design
• PAC-LMA30BC: Connects 3 indoor units, R454B compatible, dimensions: 17.75 x 11.06 x 6.75 inches

Use & Compatibility

This bundle is designed for use in multi-zone mini-split HVAC systems, providing efficient heating and cooling for various spaces. The outdoor heat pump condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the concealed duct air handling units are perfect for discreet installations in residential and commercial settings.
