Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+12K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to provide efficient heating and cooling for multi-zone applications. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse of the system, capable of supporting up to 11 indoor units for customized climate control. Complementing this are the SEZ-AD09NL and SEZ-AD12NL concealed duct indoor units, which offer discreet installation and quiet operation, making them perfect for residential or commercial spaces. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among the indoor units, enhancing overall system performance. Together, these components create a versatile and efficient solution for maintaining comfortable temperatures across various zones.

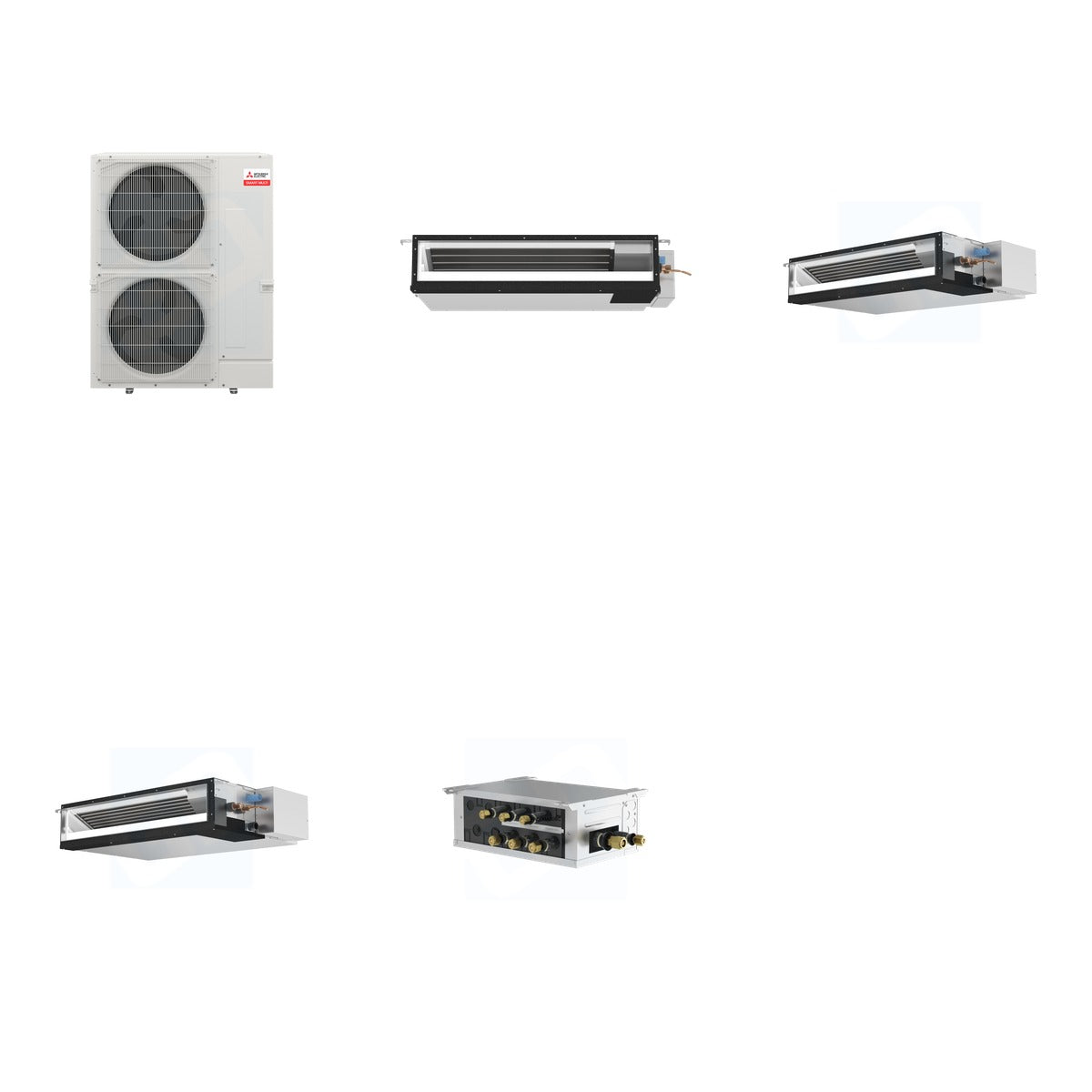

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

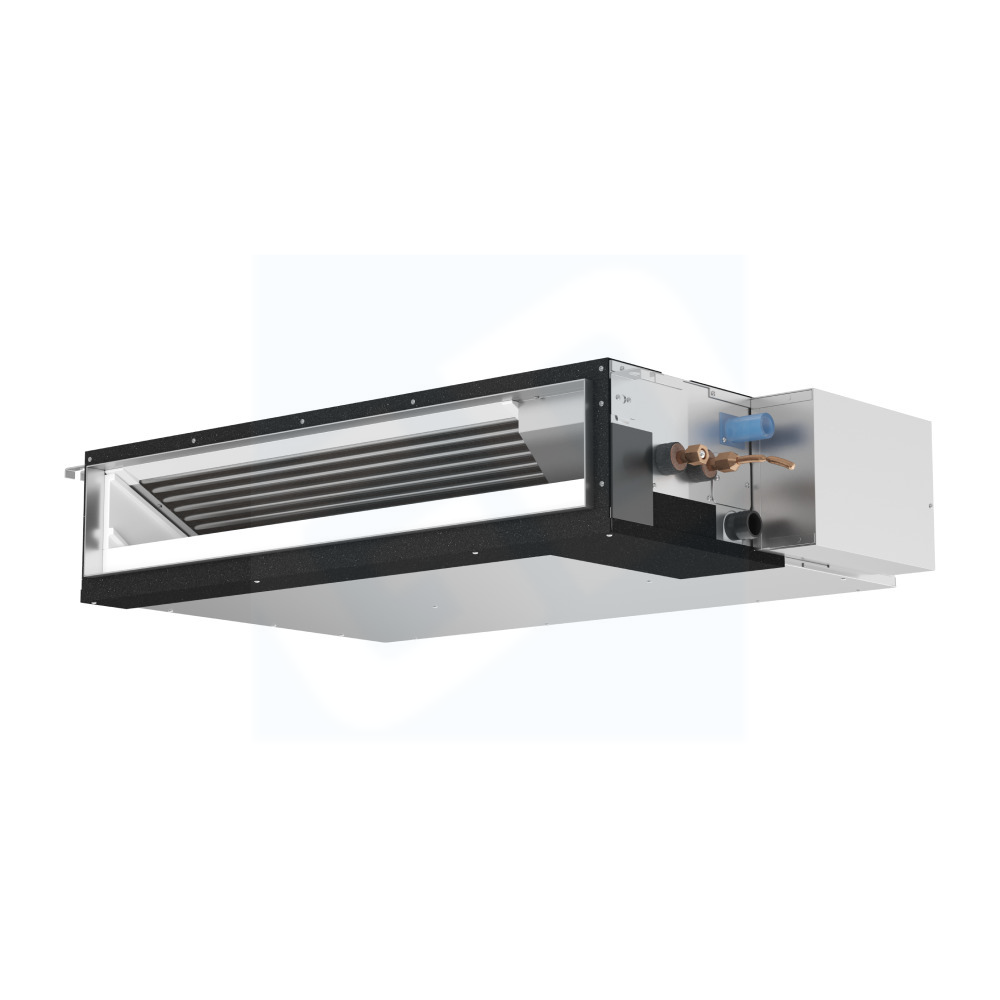

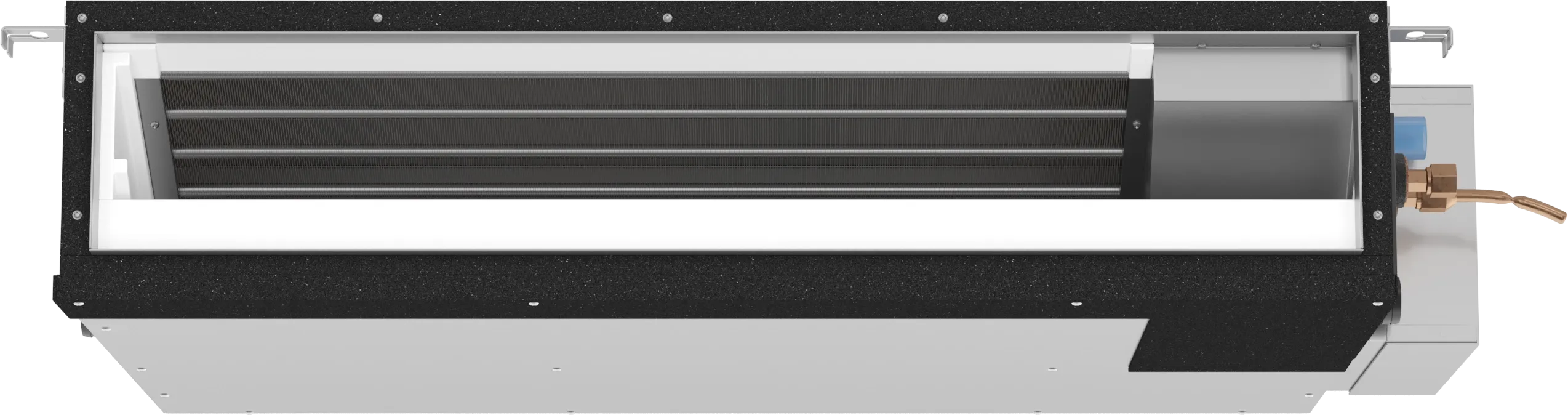

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU M-Series Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU M-Series Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 304 lb (Mitsubishi 161 lb + Mitsubishi 40 lb + Mitsubishi 98 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Units: 9,000 BTU (SEZ-AD09NL), 12,000 BTU (SEZ-AD12NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Noise Level: 23-33 dB (SEZ-AD09NL & SEZ-AD12NL)
• Dimensions: Varies by unit (MXZ-SM36NL: 41-11/32" W x 13" D x 52-11/16" H)

Use & Compatibility

This bundle is designed for use in residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD09NL and SEZ-AD12NL units can be installed in various configurations to suit different room sizes and layouts. The PAC-LMA30BC branch box facilitates seamless connections among indoor units, ensuring balanced refrigerant flow and optimal performance.
