Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 15K+15K+15K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone climate control system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, providing up to 36,000 BTUs of heating and cooling, while the SEZ-AD15NL Concealed Duct Air Handling Units ensure discreet air distribution across your spaces. The PAC-LMA30BC Branch Box facilitates seamless connections between the outdoor unit and multiple indoor units, optimizing refrigerant flow and temperature control. Together, these components create a versatile and efficient solution for both residential and commercial applications.

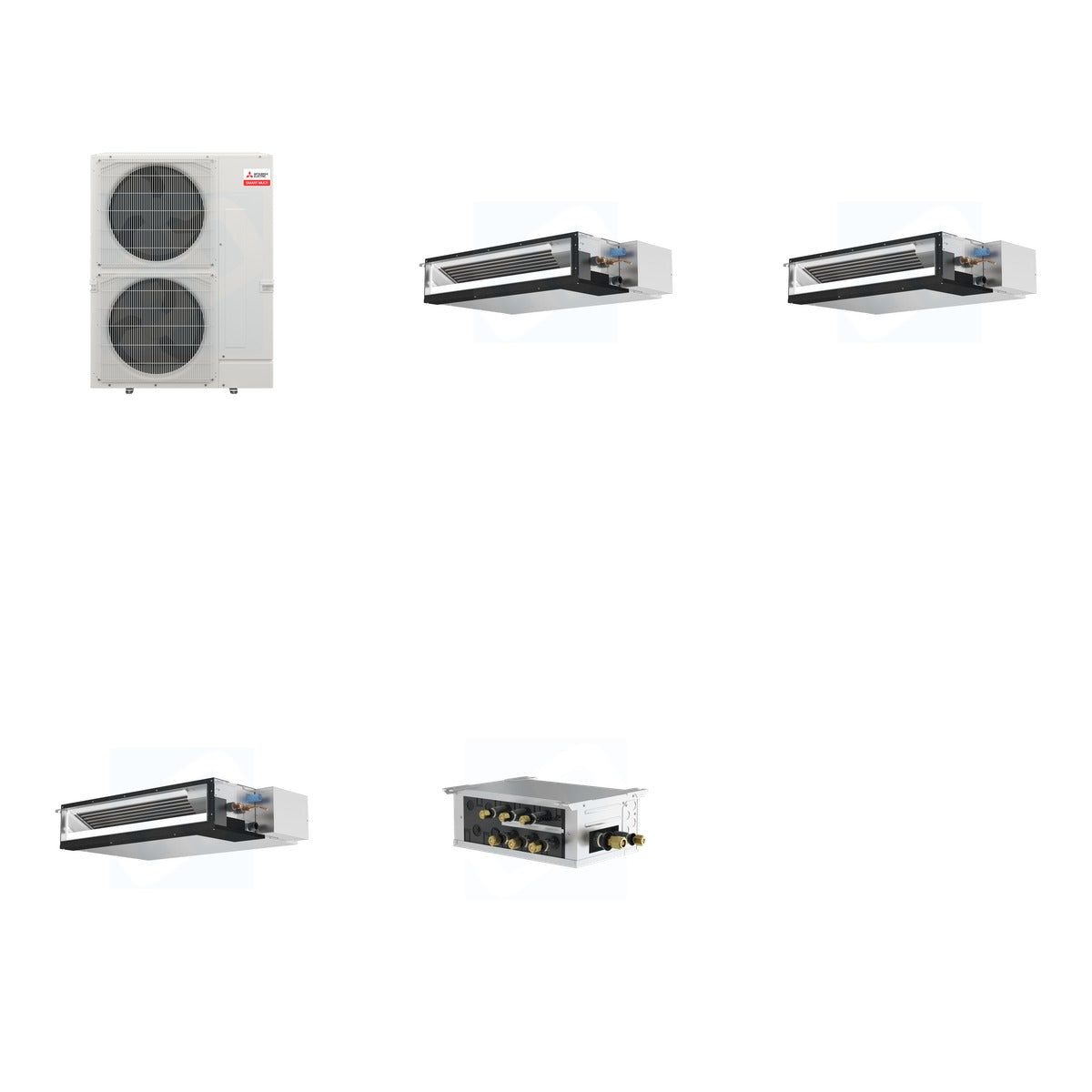

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)

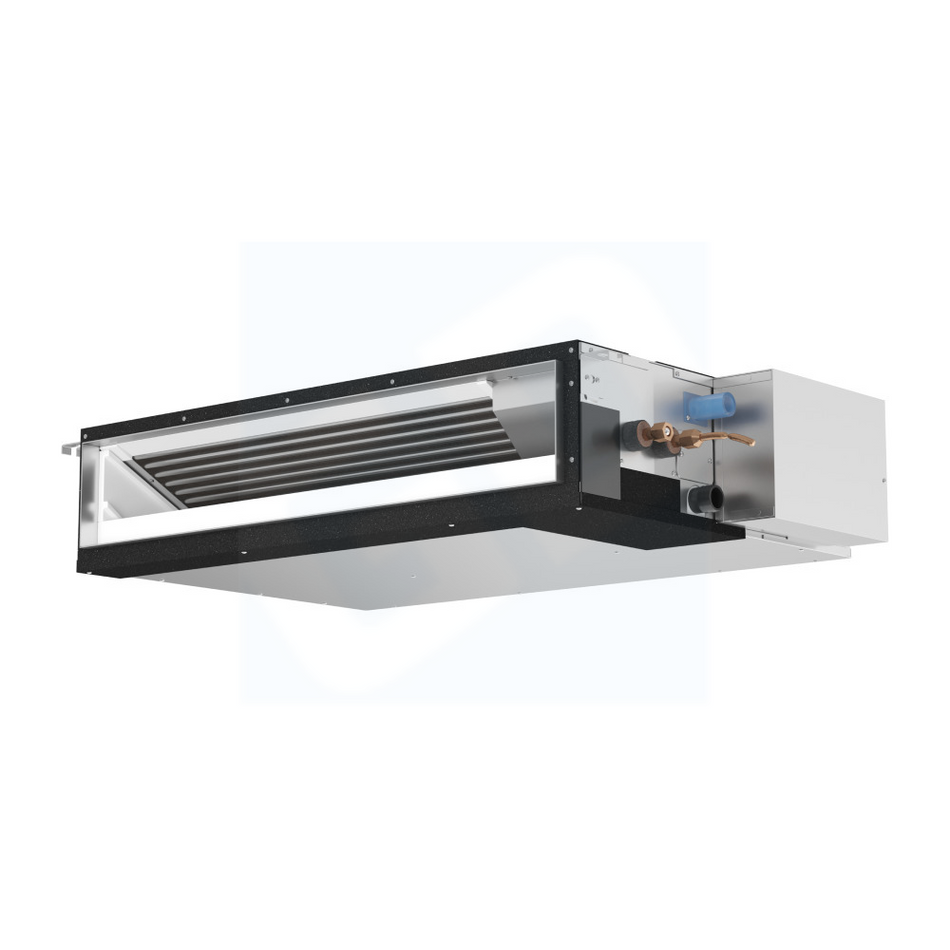

• MITSUBISHI ELECTRIC SEZ-AD15NL - 15k BTU Concealed Duct AHU (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 520 lb (Mitsubishi 161 lb + Mitsubishi 354 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU
• Heating Capacity: 41,000 BTU
• SEER2: 23
• Refrigerant: R454B
• Voltage: 208/230V
• Dimensions (Condenser): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (AHU): Compact for concealed installation
• Dimensions (Branch Box): 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial settings. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD15NL air handling units integrate seamlessly into concealed duct systems. The PAC-LMA30BC branch box enhances the system's efficiency by connecting multiple indoor units, ensuring balanced refrigerant flow and optimal climate control.
