Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, this system supports up to 11 zones, allowing for customized climate control in various spaces. The bundle includes two concealed duct air handling units (AHUs) - the SEZ-AD12NL and SEZ-AD18NL - which operate quietly and can be easily integrated into tight spaces. Additionally, the PAC-LMA30BC branch box ensures optimal refrigerant distribution, making this bundle ideal for those seeking a reliable and effective multi-zone HVAC system.

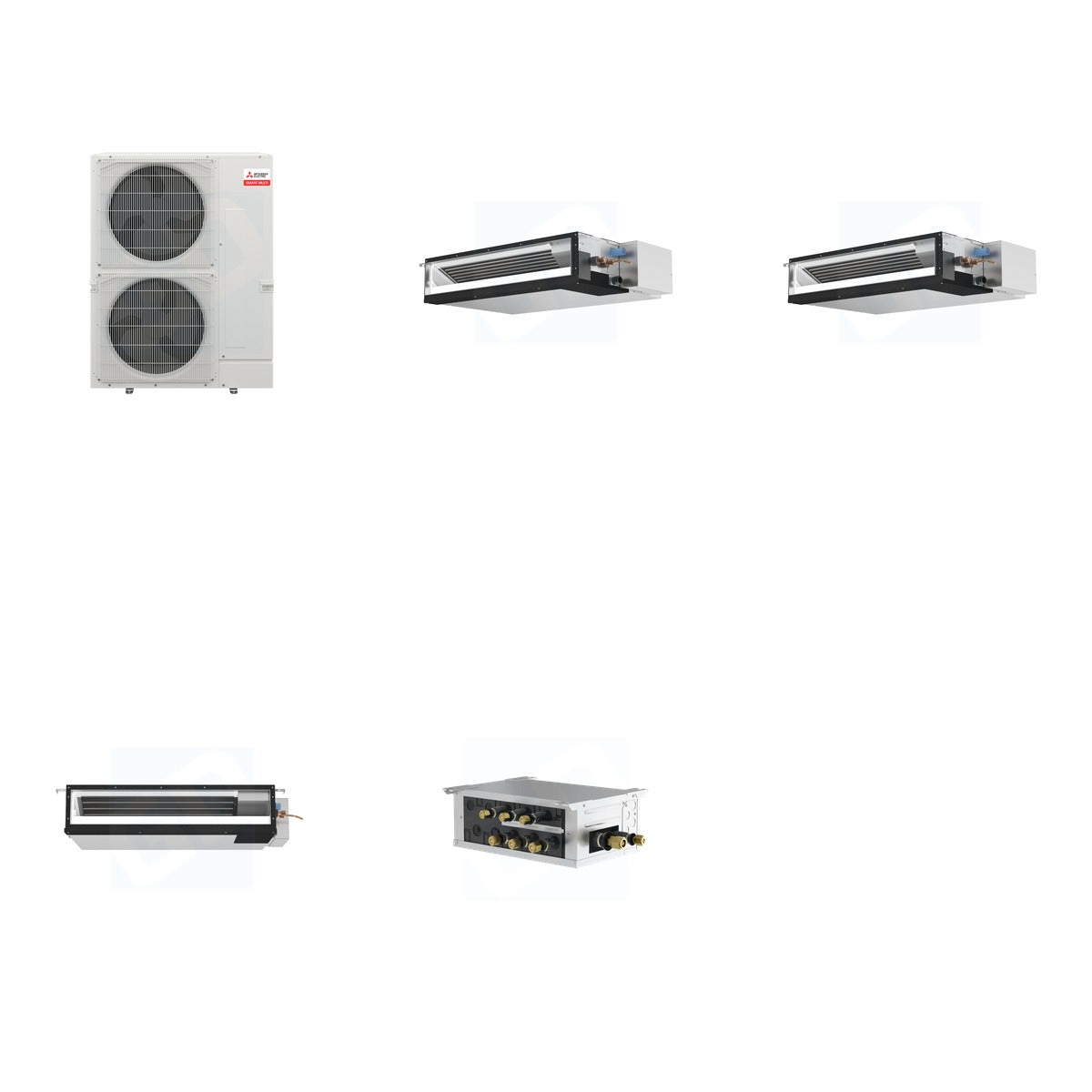

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 322 lb (Mitsubishi 161 lb + Mitsubishi 98 lb + Mitsubishi 58 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Sizes: 12,000 BTU (SEZ-AD12NL), 18,000 BTU (SEZ-AD18NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Multi-Zone Capability: Yes
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (SEZ-AD12NL): 39 W x 27-9/16 D x 7-7/8 H
• Dimensions (SEZ-AD18NL): 46-7/8 W x 27-9/16 D x 7-7/8 H
• Noise Level: as low as 23 dB (SEZ-AD12NL and SEZ-AD18NL)

Use & Compatibility

This bundle is intended for efficient heating and cooling in residential and commercial settings. The MXZ-SM36NL condenser works seamlessly with the SEZ-AD12NL and SEZ-AD18NL indoor units, providing customizable climate control across multiple zones. Ideal for installations where discreet and effective temperature management is required.
