Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+12K+15K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, delivering robust performance with a capacity of 36,000 BTU. Paired with two concealed duct air handling units, the SEZ-AD12NL and SEZ-AD15NL, this bundle allows for discreet installation and optimal climate control in various spaces. The PAC-LMA30BC branch box ensures balanced refrigerant distribution, connecting multiple indoor units seamlessly. Together, these components provide a versatile solution for both residential and commercial applications, ensuring comfort and efficiency across different zones.

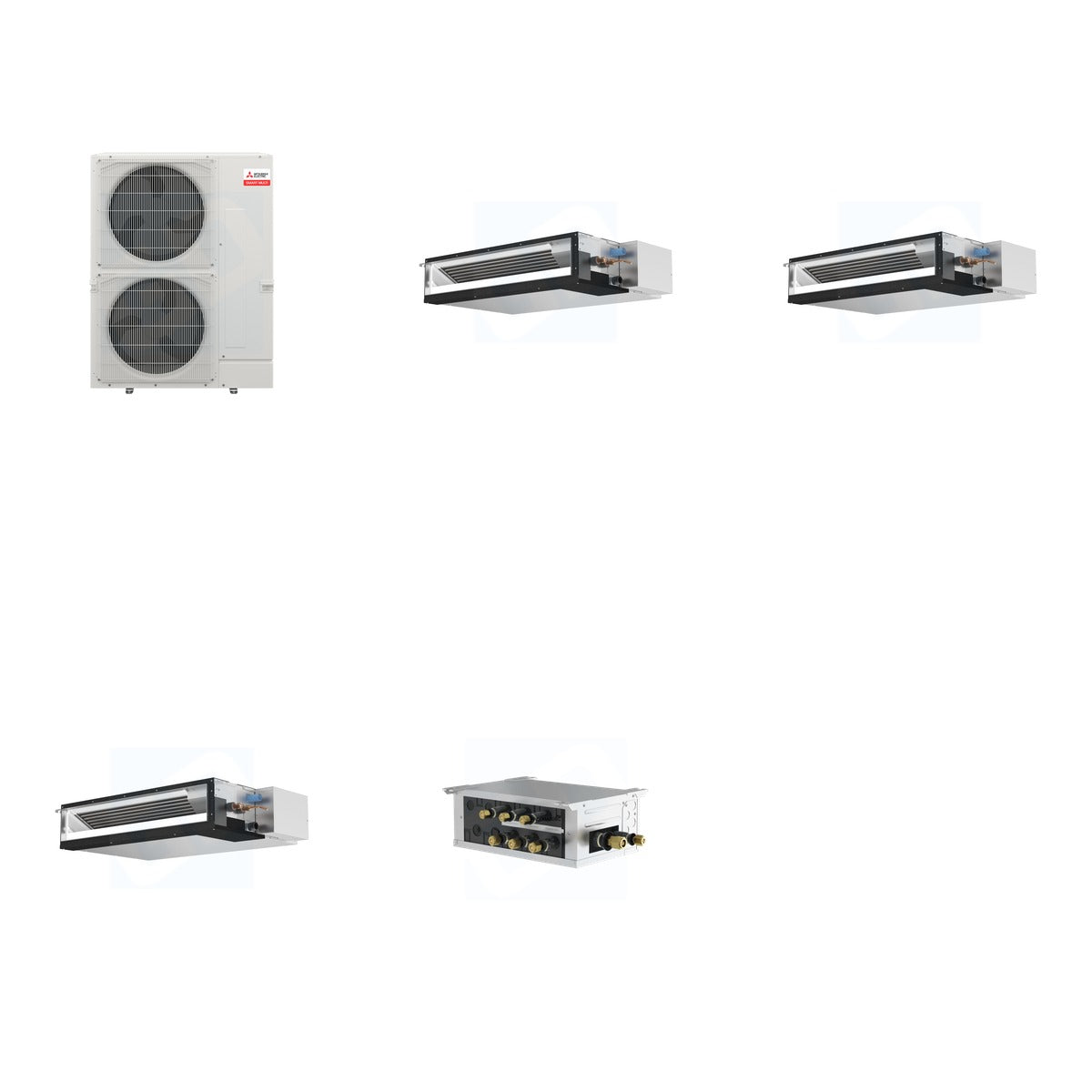

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

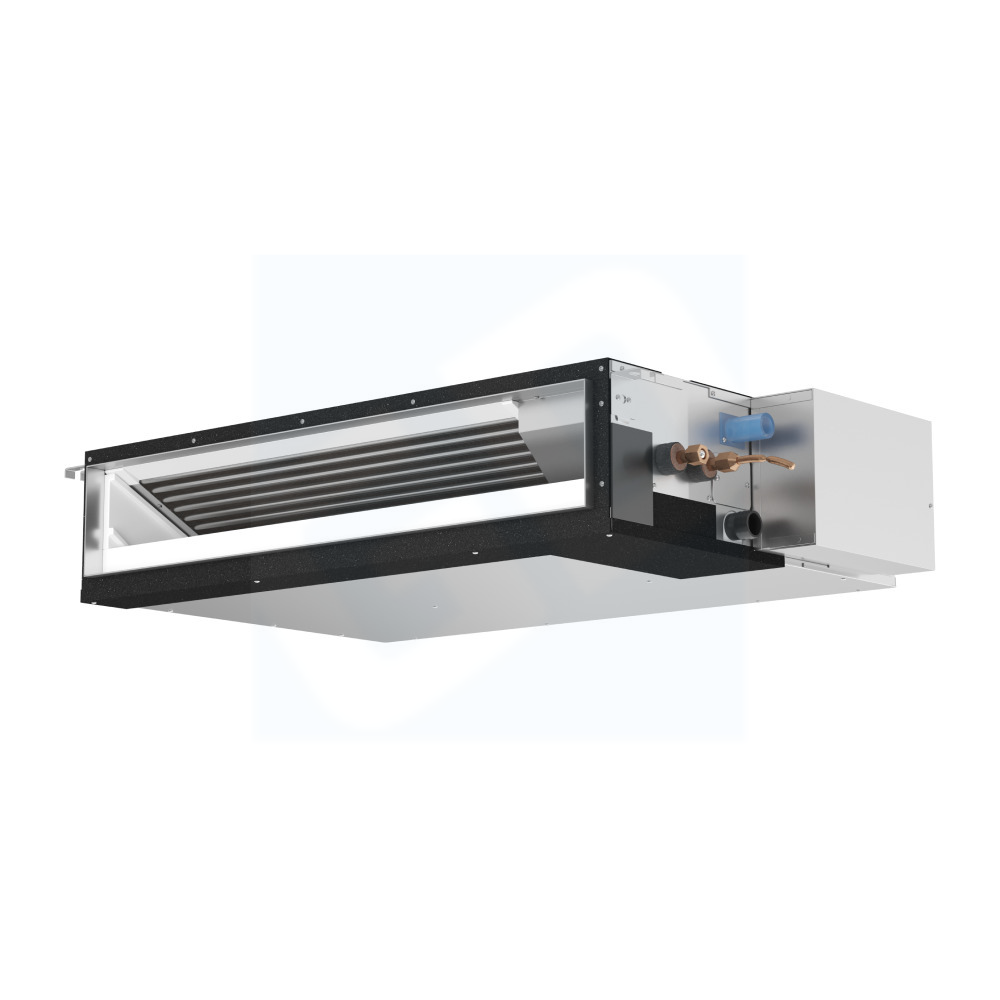

• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 382 lb (Mitsubishi 161 lb + Mitsubishi 98 lb + Mitsubishi 118 lb + Mitsubishi 5 lb)
• MXZ-SM36NL: 36,000 BTU, R454B refrigerant, SEER2: 23, up to 4 zones (with branch box), dimensions: 41-11/32" W x 13" D x 52-11/16" H
• SEZ-AD12NL: 12,000 BTU, R454B refrigerant, dimensions: 39" W x 27-9/16" D x 7-7/8" H, operates at 208/230V
• SEZ-AD15NL: 15,000 BTU, R454B refrigerant, concealed duct design
• PAC-LMA30BC: connects 3 indoor units, dimensions: 17-3/4" W x 11-1/16" D x 6-3/4" H

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications requiring efficient heating and cooling across multiple zones. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD12NL and SEZ-AD15NL can be integrated into single or multi-zone systems. The PAC-LMA30BC branch box facilitates optimal refrigerant flow, ensuring effective climate control throughout the space.
