Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to provide efficient heating and cooling solutions for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse of the system, capable of supporting multiple indoor units for customized climate control across various zones. Paired with three Mitsubishi Electric SEZ-AD12NL Concealed Duct AHUs, this setup ensures unobtrusive operation and effective temperature management in individual spaces. The included PAC-LMA30BC Branch Box facilitates optimal refrigerant distribution, enhancing system performance and reliability. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

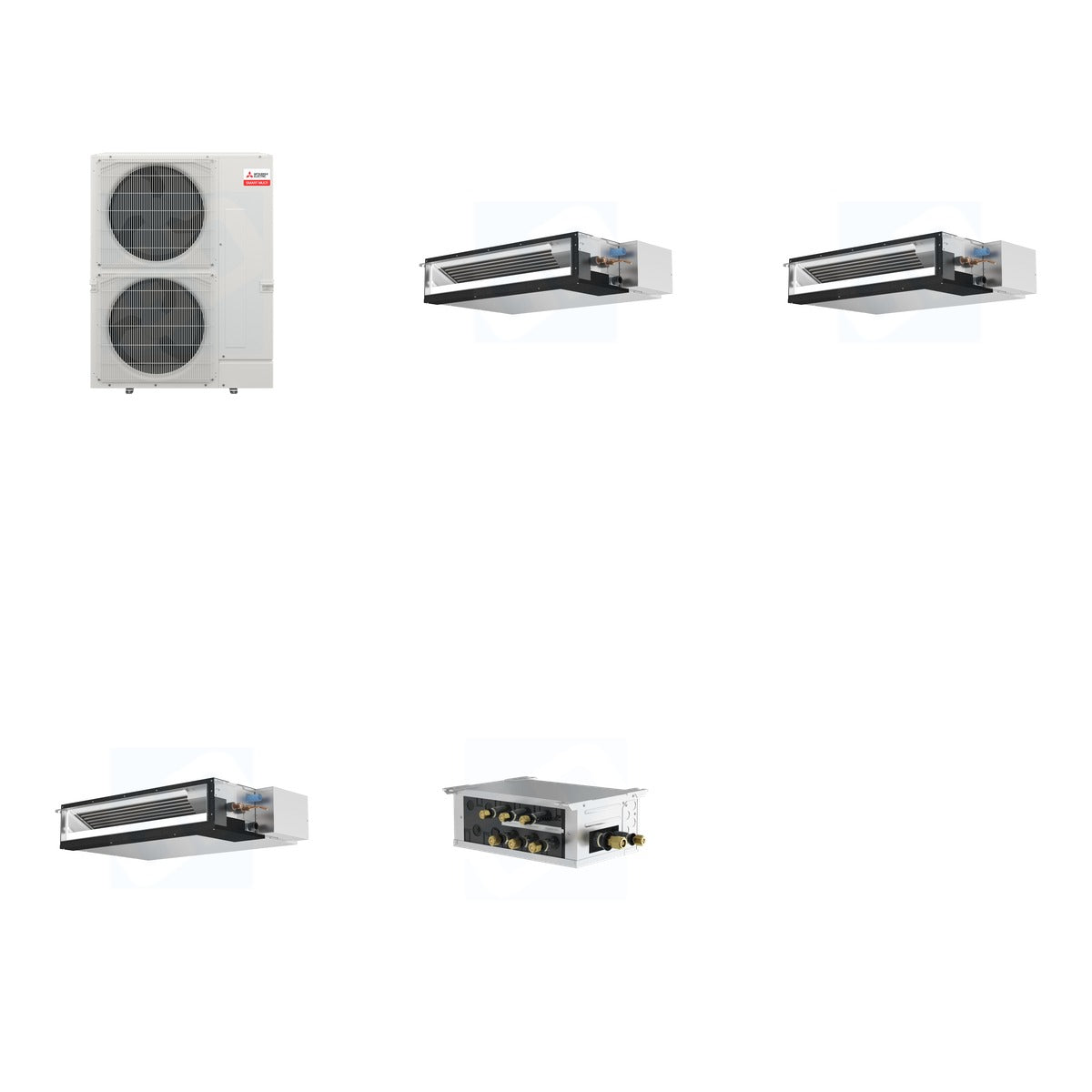

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

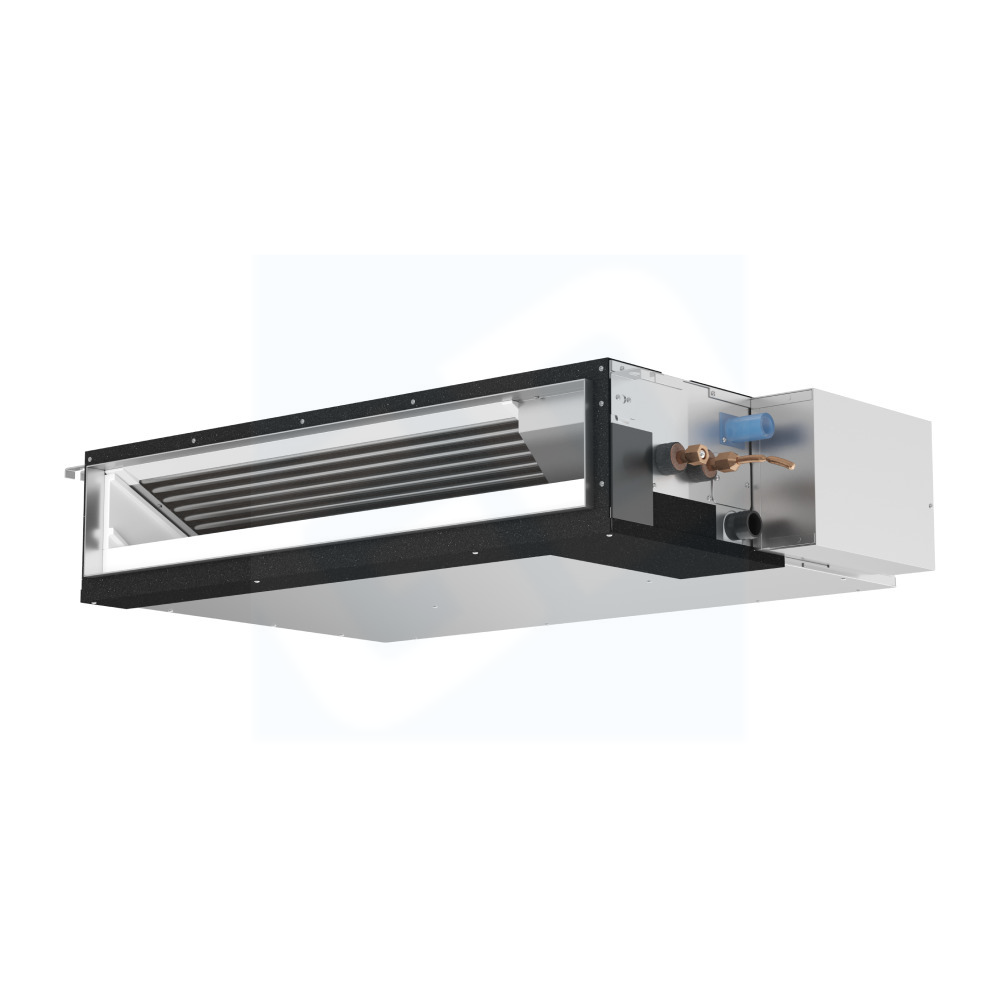

• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU M-Series Concealed Duct AHU (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 313 lb (Mitsubishi 161 lb + Mitsubishi 147 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Refrigerant Type: R454B
• SEER2: 23 (MXZ-SM36NL)
• Indoor Unit Size: 12,000 BTU (SEZ-AD12NL)
• Voltage: 208/230V
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)
• Noise Level: 23-33 dB (SEZ-AD12NL)
• Max Air Flow: 388 CFM (SEZ-AD12NL)
• Branch Box Dimensions: 17-3/4 x 11-1/16 x 6-3/4 inches (PAC-LMA30BC)

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it ideal for both residential and commercial applications. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD12NL units offer flexibility in installation and operation. The PAC-LMA30BC branch box ensures efficient refrigerant distribution among the connected indoor units, enhancing overall system performance.
