Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+18K

Description

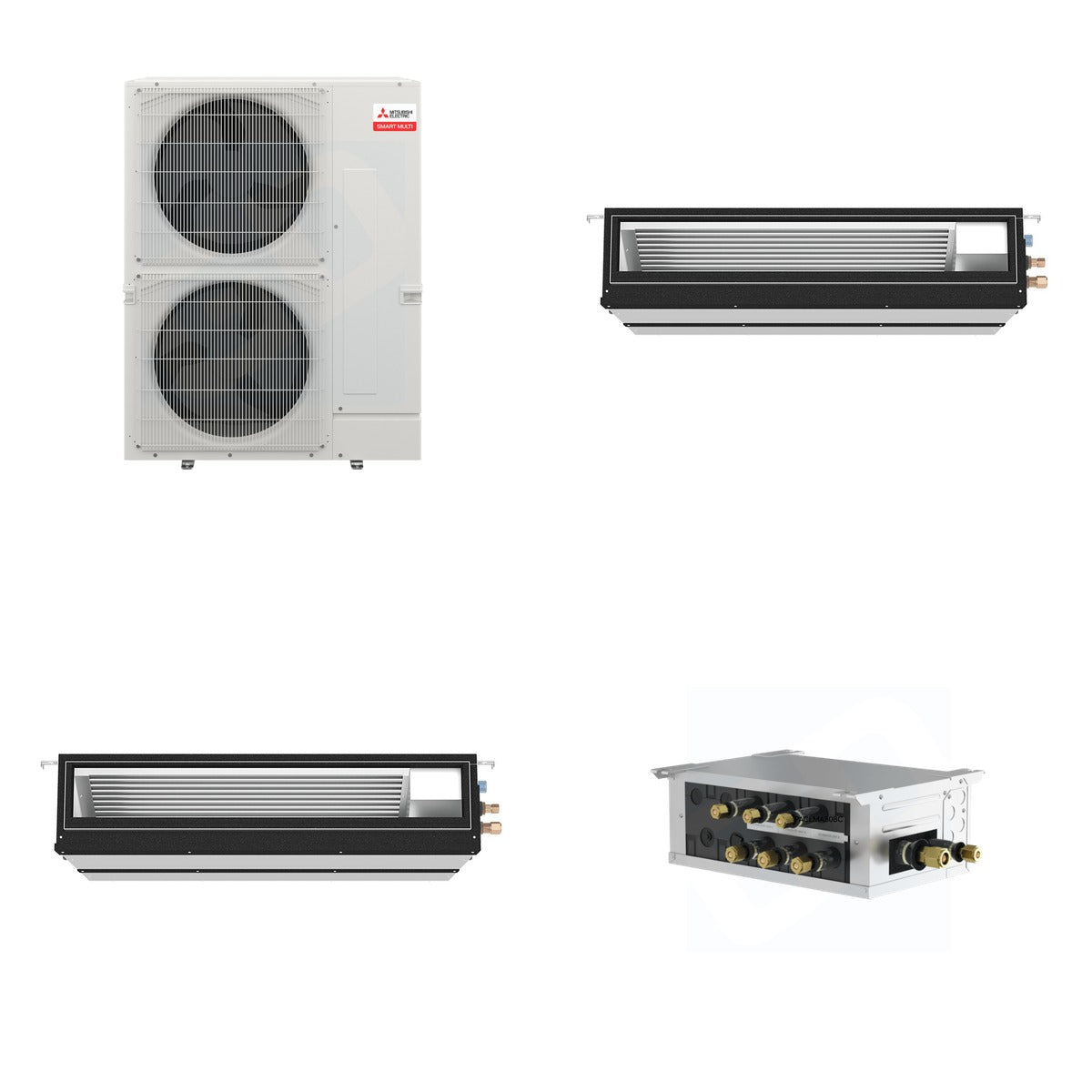

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser, along with two concealed duct indoor units (PEAD-AA09NL and PEAD-AA18NL) and a PAC-LMA30BC branch box. Together, these components create a highly efficient multi-zone heating and cooling system suitable for both residential and commercial applications. The MXZ-SM36NL condenser provides powerful climate control with the ability to serve multiple zones, while the concealed duct units ensure discreet operation and aesthetic appeal. The branch box facilitates optimal refrigerant distribution, making this bundle an ideal choice for customized comfort across various spaces.

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA18NL - 18k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 161 lb + Mitsubishi 49 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 9,000 BTU (PEAD-AA09NL), 18,000 BTU (PEAD-AA18NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 12,000 BTU (PEAD-AA09NL), 20,000 BTU (PEAD-AA18NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (Condenser): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (PEAD-AA09NL): 35 7/16 W x 9 7/8 H x 28 7/8 D
• Dimensions (PEAD-AA18NL): 600 CFM airflow
• Branch Box Dimensions: 17.75 W x 11.06 D x 6.75 H

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, allowing for customized climate control in residential and commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the concealed duct units are ideal for maintaining aesthetics in any room. The included branch box ensures efficient refrigerant distribution across multiple indoor units.
